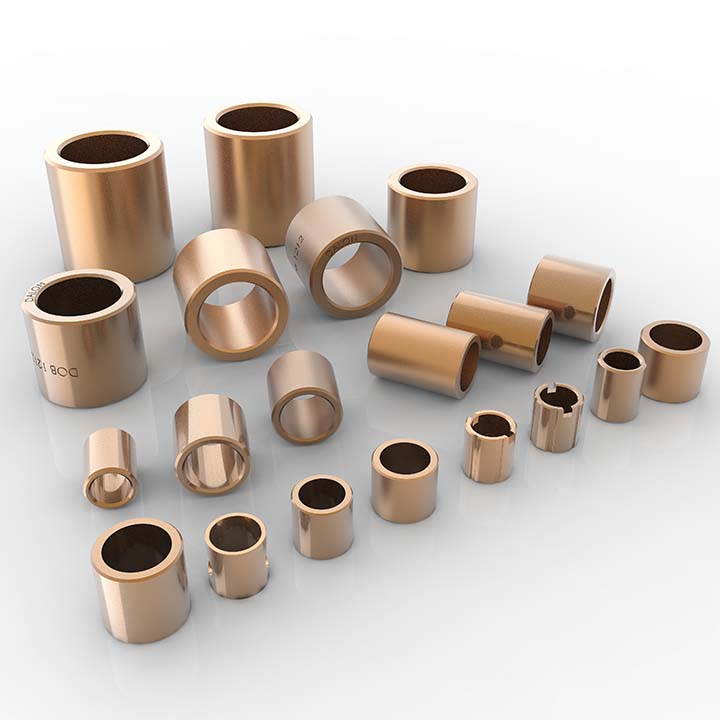

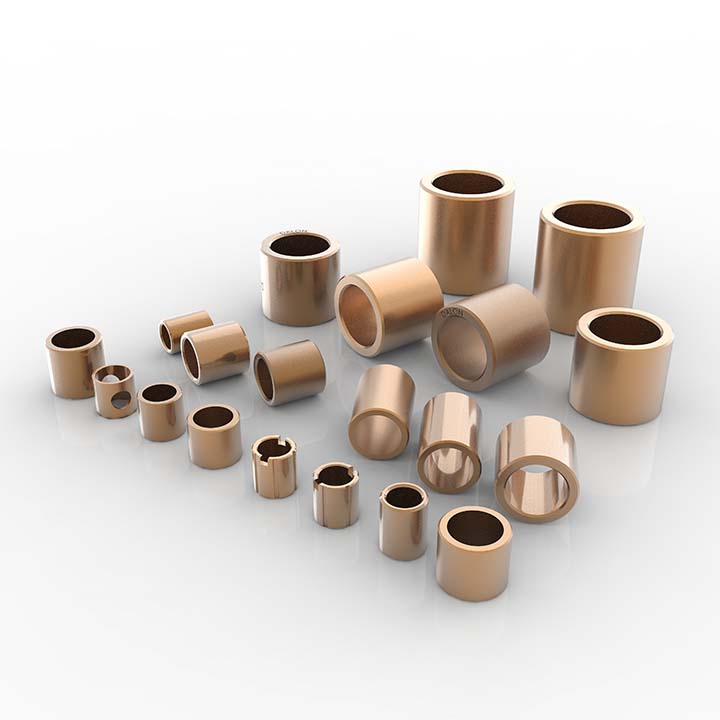

Sintered Bronze Bushing
Sintered Bronze Bushing
Density from 6.4~7.0 g/cm³
Porosity
> 19 % (min)
Compressive Yield Strength
11,000/75 PSI/MPa
Product Characteristics
| Manufacturer | DALON |
| Material | CuSn9010/ SAE841 ASTM B438-70; SintA50/CuSnPb663 |
| Types | Plain Type Sleeve / Flange Bushing / Spherical Ball Bushing |
| Product Code | SBB |
| Lubricating: | Embedded Lubricated SAE 30 |
| Diameter: | from 2 to 150 mm,and length from 2 to 75 mm |
| Porosity: | > 19% |
| Density: | from 6.4 to 7.0 |
| Hardness: | 30 ~ 50 HRB |
Specification Calculate
Volume
Weight
| GENERAL | UNIT | VALUE |
| Density | g/cm³ | 6.4 ~ 7.0 |
| Porosity | %(min) | >19 |
| Strength Constant | “K” PSI / Mpa | 26500/180 |
| Elongation | %,in 1" | 1 |
| Compressive Yield Strength | PSI / MPa | 11000/75 |
| Tensile strength at +20°C | MPa | 100 ~ 150 |
| Apparent Hardness | HRB | 30 ~ 50 |
| Working Temperature | °C | -40 to +220 |
| Friction Value | μ | 0.05 ~ 0.20 |
| Max Load Capacity | PSI | 3000 |
| MAX. PV Value | N/mm².m/s | 1.6 |
| Coefficient of thermal expansion ( at +23°C) | K⁻¹ . 10 ⁻⁵ | 9 |
Sintered Bronze Bushing
Introducing Our Premier Sintered Bronze Bushing Line: Engineered for Superior Performance
- In the realm of industrial machinery and mechanical assemblies, the sintered bronze bushing emerges as a cornerstone component, pivotal for reducing friction, facilitating smooth operation, and enhancing the longevity of machinery. As a leading supplier, we are proud to offer our line of high-quality, oil-impregnated sintered bronze bushings, designed to meet and exceed the rigorous demands of various industrial applications.
- Unmatched Quality and Durability:
- - Our sintered bronze bushings are manufactured through a state-of-the-art powder metallurgy process. This involves pressing and sintering finely ground bronze particles to form a highly porous, yet structurally solid bushing. These pores are then vacuum-infused with lubricating oil, ensuring that the bushing is self-lubricating throughout its service life. This unique manufacturing process grants our bushings an exceptional blend of durability and performance, capable of withstanding high speeds, loads, and temperatures.
- Superior Performance with Self-Lubrication:
- - The hallmark of DALON sintered bronze bushing is its self-lubricating feature. The oil impregnation provides a constant reservoir of lubricant within the bushing, significantly reducing friction and wear between moving parts. This not only enhances the operational efficiency of machinery but also extends the lifespan of both the bushing and the machinery components it serves. Additionally, this self-lubricating capability means that our bushings require minimal maintenance, saving time and resources for our clients.
- Versatile Applications Across Industries:
- - DALON sintered bronze bushings are versatile enough to serve a wide array of industries, from automotive and aerospace to consumer electronics and home appliances. They are especially suited for applications where durability and performance under high friction and temperature conditions are critical. Whether it's in hydraulic machinery, electric motors, or household appliances, our bushings provide reliable, efficient performance.
- Customization and Support:
- - Understanding the diverse needs of our clients, we offer customization options for our sintered bronze bushings. Dimensions, oil types, and material properties can be tailored to meet specific application requirements, ensuring the perfect fit for any project. Our team of experts is always ready to provide technical support and advice, ensuring that you select the right bushing for your needs.
- our sintered bronze bushing line stands as a testament to our commitment to quality, innovation, and customer satisfaction. With their superior durability, self-lubricating properties, and wide range of applications, these bushings are designed to deliver unmatched performance and value to our clients. Trust us to provide the solution you need to keep your machinery running smoothly and efficiently.
Application Examples:
- DALON Sintered Bushing Advantage:
- Sintered bronze bushings offer a unique combination of advantages that make them highly sought after in various applications across industries. Here’s a brief overview of their key benefits:
- An extremely wide range of operating loads, speeds and temperatures:
- - Dynamic loads from 6 to 75 MPa
- Linear speeds up to 8 m/s
- Operating temperatures from - 180°C to + 300°C - Reduce of design and ownership costs:
- - Lower cost compared to cast metal and machined bearings
- Complex designs and forms possible
- High dimensional accuracy - These advantages make sintered bronze bushings an ideal choice for applications requiring reliable, long-lasting performance with minimal maintenance.
- Sintered bronze bushings are versatile components widely utilized across various industries due to their durability, self-lubricating properties, and resistance to wear and environmental conditions. Their applications span from heavy industrial equipment to precision devices, reflecting their adaptability and efficiency in numerous settings. Here’s a detailed exploration of their extensive range of applications:
They are used within gearboxes for smooth gear shifting and in transmissions due to their ability to withstand
high rotational speeds and varying temperatures.
Sintered bronze bushings find applications in suspension systems, where their durability and shock absorption
qualities are valuable.
The bushings are critical in hydraulic systems, ensuring efficient operation of pumps and motors by reducing
friction.
They are used in conveyor belt rollers and pulleys to facilitate smooth movement of goods and materials.
Sintered bronze bushings are commonly used in electric motors for fans, air conditioners, and washing machines, providing longevity and noise reduction.
Essential in domestic and industrial pumps and compressors for water, air, and other fluids.
They are employed in wind turbine mechanisms, where their resistance to wear and self-lubricating properties ensure efficient and long-term operation.
In agricultural machinery, these bushings reduce the wear and tear on moving parts, extending the equipment's
service life and reliability.
Sintered bronze bushings are used in boat and ship propulsion systems, benefiting from their corrosion
resistance and durability in wet environments.
DALON sintered bronze bushing provide smooth operation and support for moving parts within printers and
photocopiers, where precision and reliability are essential.
In fitness equipment, such as weight machines and stationary bikes, these bushings ensure smooth operation and
resistance to sweat and moisture.
- Above applicability underscores the sintered bronze bushing's essential role in modern mechanical design and engineering. By offering a combination of durability, efficiency, and maintenance ease, they continue to be a preferred choice for designers and engineers aiming to enhance the performance and reliability of their machinery and equipment across a wide spectrum of industries. Contact DALON for more details and assistance.
