1. Introduction: The Silent Lubrication Killer

Imagine a high-speed gearing system or a high-output engine operating at peak load. On your cockpit telemetry, the oil pressure looks rock-steady and the cooling systems are fully engaged. Yet, deep within the mechanical interfaces, a silent failure is unfolding. This failure isn't caused by the chemical breakdown of the oil itself, but by how that oil manages air. Under extreme thermal stress, lubricants can transform into a structural "mousse," losing their density and their ability to protect metal surfaces.

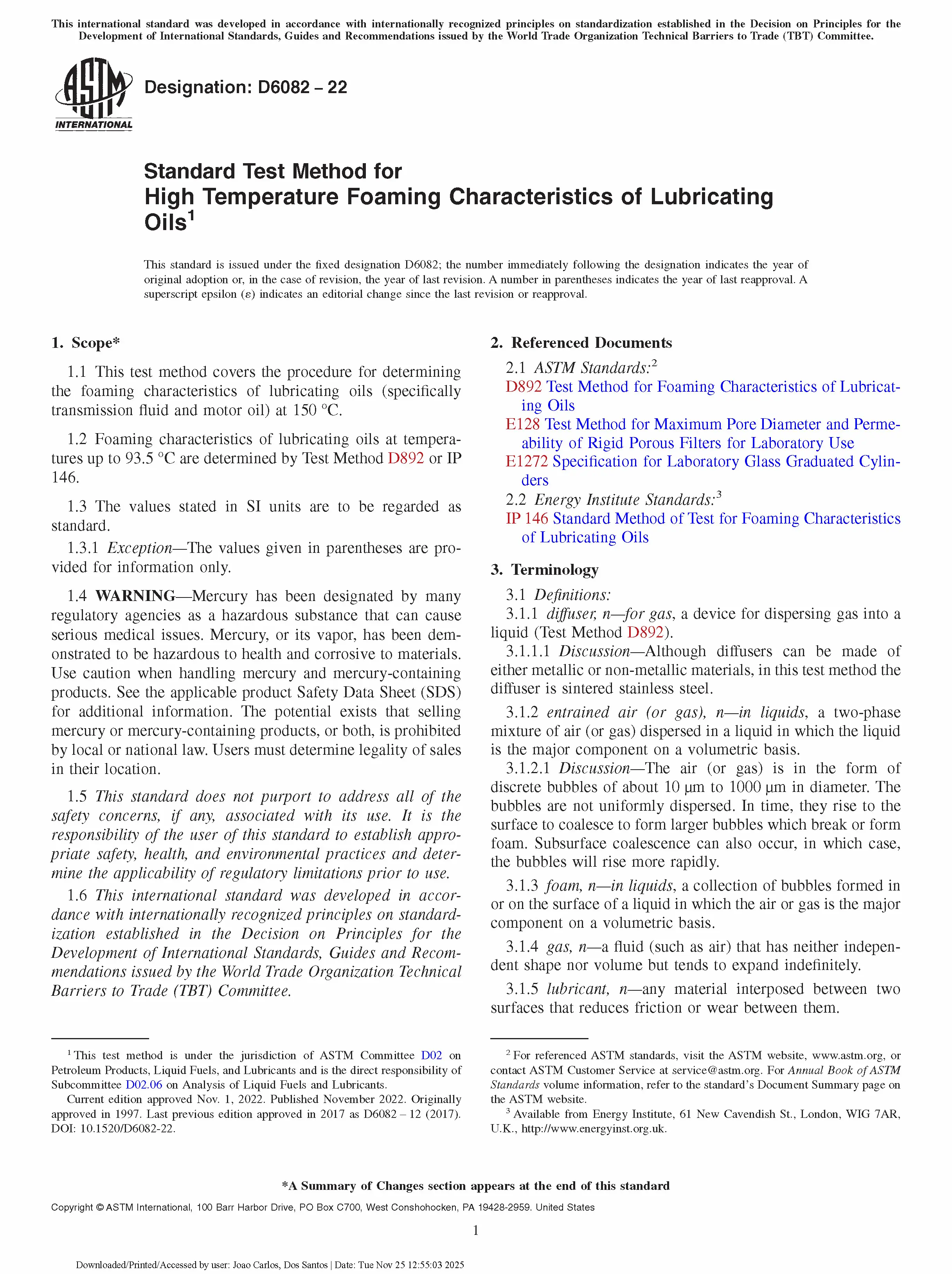

To combat this, the industry relies on the ASTM D6082-22 standard. Unlike standard tests that evaluate oil at moderate temperatures (like D892), D6082 is a grueling 150°C torture test designed specifically for the transmission fluids and motor oils that power our most demanding machines. In the world of high-performance engineering, understanding how a lubricant handles air at these temperatures is the thin line between a reliable season and a catastrophic mechanical "meltdown."

2. Takeaway 1: Foam is More Than Just Bubbles—It’s a Mechanical Assassin

In high-speed gearing and high-volume pumping systems, foaming is far more than a cosmetic annoyance. When a lubricant foams excessively, it ceases to behave like an incompressible liquid and begins to act like a compressible gas. This is particularly dangerous in modern high-performance gearboxes where "splash lubrication" is the primary method of cooling and protecting gear teeth.

The consequences of high-temperature foaming are direct and destructive, as noted in the standard:

"The tendency of oils to foam at high temperature can be a serious problem in systems such as high-speed gearing, high volume pumping, and splash lubrication. Foaming can cause inadequate lubrication, cavitation, and loss of lubricant due to overflow, and these events can lead to mechanical failure."

As a specialist, I must provide a layer of professional honesty: Section 5.2 of the standard admits that while these tests are rigorous, the exact correlation between lab foam and actual lubrication failure is often empirical. However, when tolerances are measured in microns and speeds in the thousands of RPMs, a foam-induced "overflow" or pump "cavitation" almost inevitably leads to metal-on-metal contact.

3. Takeaway 2: The "Kinetic" Factor: The Foam You Can't See

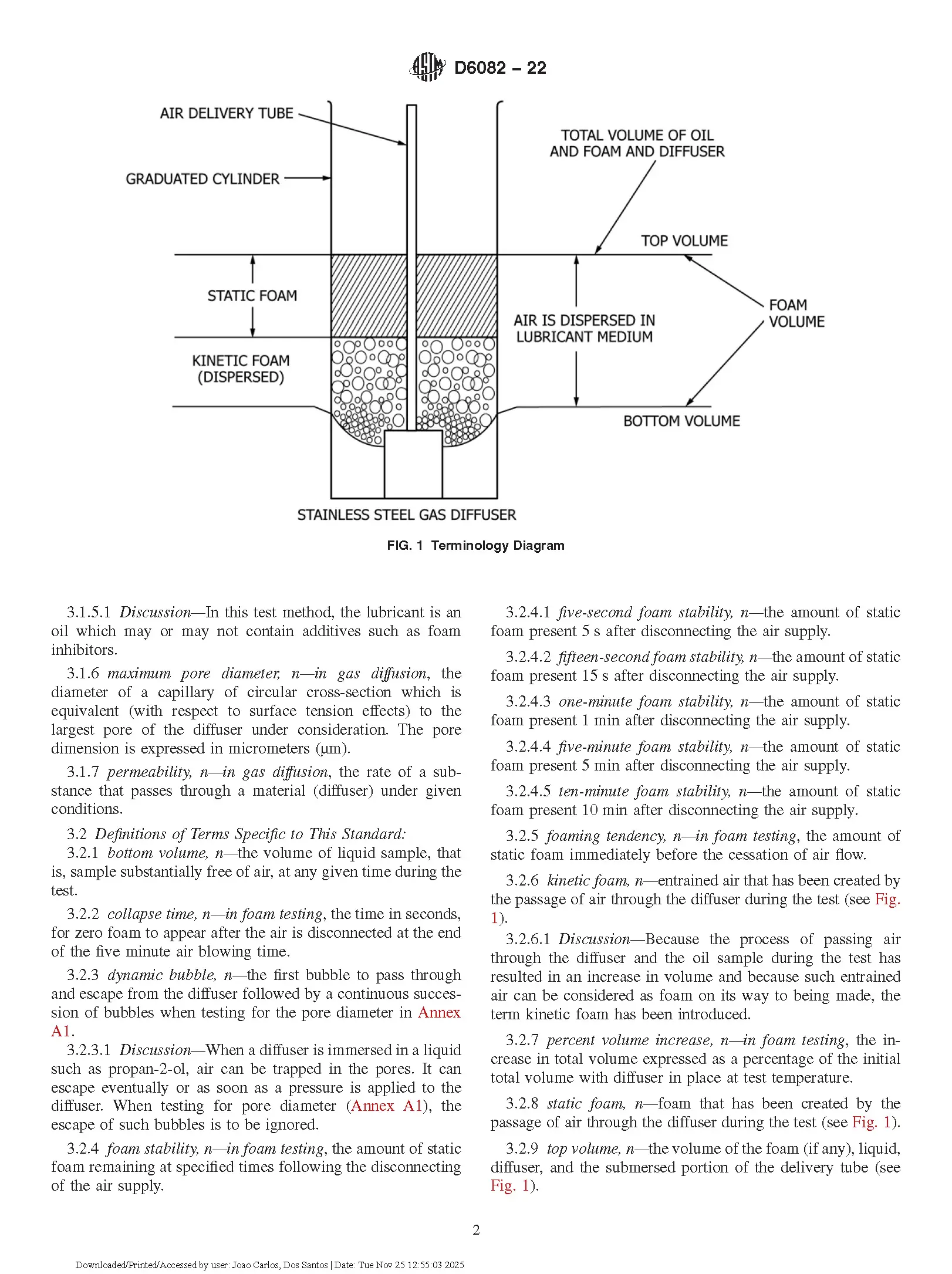

While most identify foam as the white layer of bubbles resting on top of a liquid (Static Foam), ASTM D6082 introduces a more insidious concept: Kinetic Foam.

Defined as entrained air—discrete bubbles between 10 µm and 1000 µm in diameter—kinetic foam is dispersed within the liquid itself. It is essentially "foam on its way to being made." Because these micro-bubbles are trapped inside the oil, they reduce film strength before they ever reach the surface.

This is why we measure the Final Total Volume () just before disconnecting the air source.  is the absolute sum of the liquid, the static foam, and the kinetic foam. By calculating the Percent Volume Increase (Equation 2), we determine how much the fluid has literally expanded. If your 180 mL oil sample has turned into a 400 mL "mousse" at the peak of aeration, your engine is essentially trying to lubricate itself with air.

4. Takeaway 3: 150°C is the Great Divider

Temperature is the ultimate stress test for lubrication chemistry. While standard tests (D892) peak at 93.5°C, D6082 pushes the fluid to 150°C. At this temperature, oil viscosity is at its absolute lowest, making foam stability even more chemically significant. If an oil's anti-foam package fails here, the bubbles won't just form—they will persist.

The test also employs a critical "30-minute pre-heat" at 49°C. This sets a baseline for the oil's molecular state, ensuring volatile components are stabilized before the aeration begins. From a laboratory specialist’s perspective, it’s also worth noting the "Mercury Warning" in Section 1.4. While the standard’s original precision data (Note 13) was acquired using mercury thermometers, modern labs are shifting toward J, K, or T-type thermocouples to meet evolving safety regulations—a transition that requires extreme care to maintain the  0.2°C precision required for the 150°C benchmark.

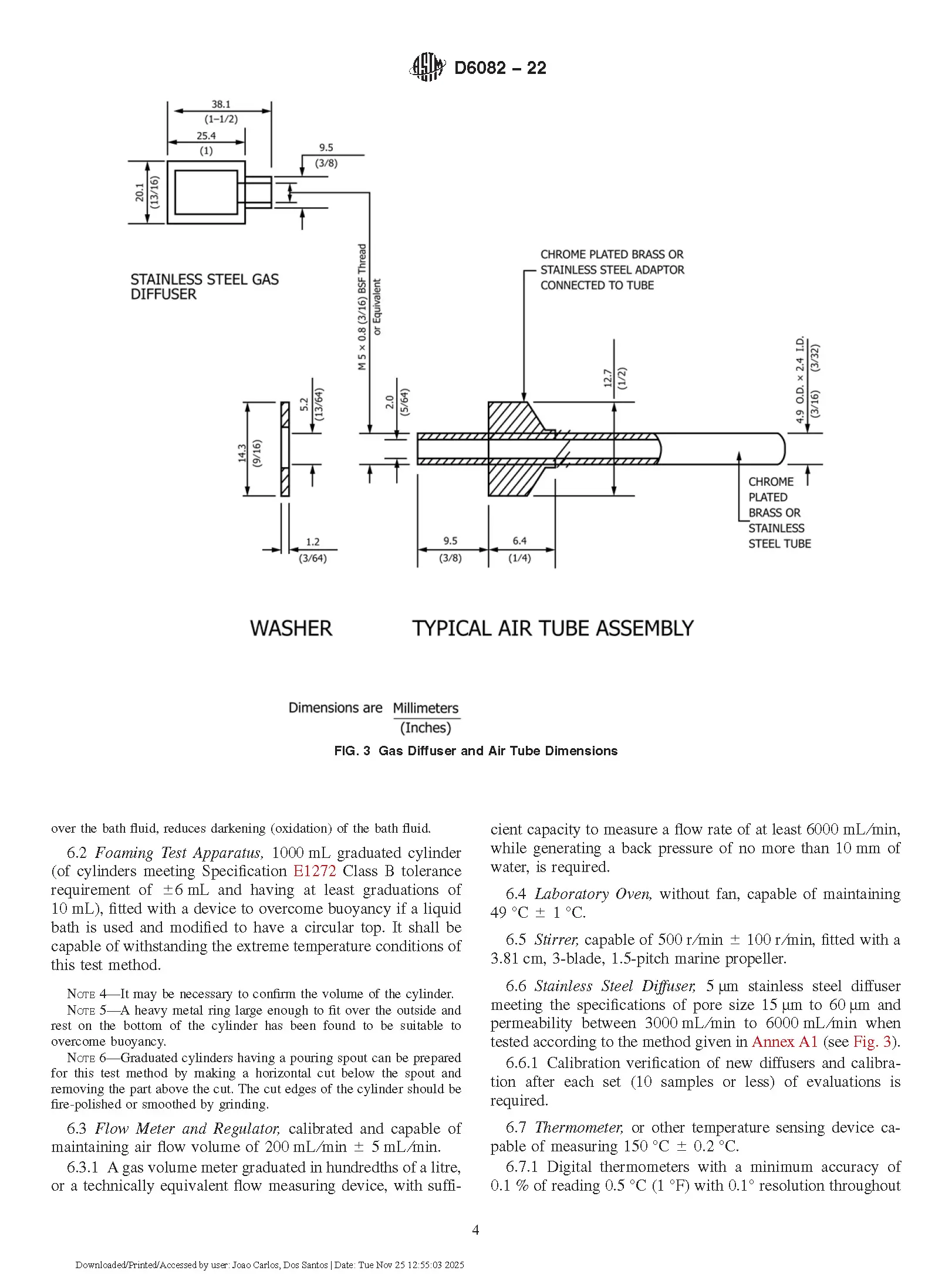

5. Takeaway 4: The "Sintered Secret": Why Your Diffuser Material Changes Everything

To simulate the air entrainment of a working engine, the test uses a "diffuser" to disperse dry air into the oil. The material of this component is a critical variable. While non-metallic "Spherical Stones" are permitted for lower-temperature testing, D6082 mandates a Cylindrical Stainless Steel diffuser.

Sintered stainless steel is superior because it is more uniform and holds its strict specifications longer. Specifically, it must maintain a pore size of 15 µm to 60 µm and a permeability between 3000 and 6000 mL/min. As the Tannas brochure warns:

"Out of specification diffusers are a major cause of inaccuracy in these test methods."

The permeability spec is vital; it dictates the "shear" of the air entering the oil. A clogged or out-of-spec diffuser will produce inconsistent bubble sizes, completely invalidating the data.

6. Takeaway 5: The War Against "Anti-Foam" Migration

One of the most surprising challenges in lubrication is the behavior of "foam inhibitors." These additives are notoriously difficult to manage because they want to "migrate" to the container walls rather than stay in the oil.

To combat this, the standard offers Option A: High-Speed Blending. This involves 1 minute of vigorous hand-shaking followed by blending at 22,000 r/min ( 2000 r/min). While technically an "option" in the standard, for high-performance specifications monitored by the TMC, this is essentially mandatory. Once blended, you have a strict 3-hour window to complete the test before those inhibitors migrate back to the cylinder walls, leaving the oil defenseless.

7. Takeaway 6: The "Five-Time" Cleaning Rule

Precision in the lab is a matter of what isn't there. Microscopic residues from a previous test can "poison" the results of the next. This is why the cleaning protocol for the gas diffuser (Section 9.1.2) is so intense.

The diffuser must be treated with a chemical cocktail of Toluene and Heptane, flushed back and forth at least five times using vacuum and air pressure. But here is the specialist’s secret: while you must wipe the inlet tube with toluene and heptane to ensure it is clean, you must never wipe the diffuser itself. Even the cleanest cloth can leave microscopic fibers in the sintered pores, which would change the air dispersion and ruin the next 150°C run.

Conclusion: The Future of Friction

As engines and transmissions become smaller, hotter, and faster, the demands on our lubricants will only increase. The ASTM D6082-22 standard remains a vital line of defense, ensuring that the fluids we trust to protect six-figure engines can handle the invisible threat of air entrainment at 150°C.

In a world where we obsess over oil viscosity and brand names, we have to ask: are we overlooking the invisible air bubbles that could be destroying our engines from the inside out? Precision testing suggests that the answer lies in the bubbles we can't see.
