Premium Quality Plastic Bushing
| I.D.(d) | 20 |
| I.D. (d1) | |
| O.D. (D) | 23 |
| O.D. (D1) | |
| Length (L) | 10 |
| Flange Dia. (fd) | |
| Flange Thickness (fl) | |
| General Tolerance | E10 r7 js13 |
| Weight(ref)/Gram | 0.00 |
| Minimum Order Qty | 500 |
| Designation | Test Method | Unit | DALON(DOB-EP) |
|---|---|---|---|
| Density | ISO 1183 | g/cm³ | 1.46 |
| Dynamic friction/steel(dry) | 0.05~0.20 | ||
| Max.PV(dry) | N/mm²*m/s | 0.4 | |
| Mechanical capability | |||
| Tensile strength 20?/td> | ISO527 | N/mm² | >40 |
| Compressive strength 20?/td> | ISO527 | N/mm² | >75 |
| E-module | ISO527 | N/mm² | >1300 |
| Max.static pressure of the surface 20?/td> | N/mm² | >70 | |
| Charpy notched impact strength 30?/td> | ISO179-2 | Kj/m² | 3 |
| Hardness Rockwell | ISO2039-2 | HRR | 108 |
| Physical and thermal capability | |||
| Continuous work temperature | ?/td> | -40/80 | |
| Short-time work temperature | ?/td> | -70/+120 | |
| Thermal conductivity | ASTME1461 | W/m.k | 0.2 |
| Linear coef.Of thermal expansion | ASTMD696 | K-1.10-5 | 10 |
| Moisture absorption RH50/23?/td> | ASTMD570 | % | 0.2 |
| Electrically conductivity capability | |||
| Volume resistivity | IEC60093 | Ω.cm | >1012 |
| Surface resistivity | IEC60093 | Ω | >1015 |
| Flammability | UL94 | HB | |
| Color | Dark Grey | ||
| Designation | Unit | B-32 | B-31 | B-21 | B-06 | B-03 | B-01 |
|---|---|---|---|---|---|---|---|
| Basic type | Higher Load | Higher Load | High Load | Standard | General | Economic | |
| Static load | Mpa | 485 | 465 | 240 | 240 | 240 | 150 |
| Dynamic load | Mpa | 210 | 190 | 160 | 150 | 100 | 30 |
| Density | g/cm³ | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 | 1.9 |
| Max.speed | M/s | 0.5 | 0.5 | 0.2 | 0.2 | 0.2 | 0.1 |
| Max.PV | Mpa*m/s | 2.5 | 2.2 | 2 | 2 | 1.8 | 1.6 |
| Coefficient of friction | - | 0.03-0.12 | 0.03-0.12 | 0.03-0.12 | 0.03-0.12 | 0.03-0.12 | 0.15-0.25 |
| Working temp. | °C | ±196 | ±196 | ±180 | ±180 | ±150 | ±150 |
| Short-time work temp. | °C | -269~+269 | -269~+269 | -196~230 | -196~+230 | -196~+196 | -196~+160 |
| Radial compressive strength | Mpa | 550 | 520 | 500 | 500 | 500 | 200 |
| Hardness | HRM | 95 | 95 | 95 | 95 | 95 | 85 |
| 25-150°C Linear thermal expansion factor | Um/m°C | 13×10-6 | 13×10-6 | 13×10-6 | 13×10-6 | 13×10-6 | 13×10-6 |
| Color | - | Black | Black | Black | Black | Black | Black |

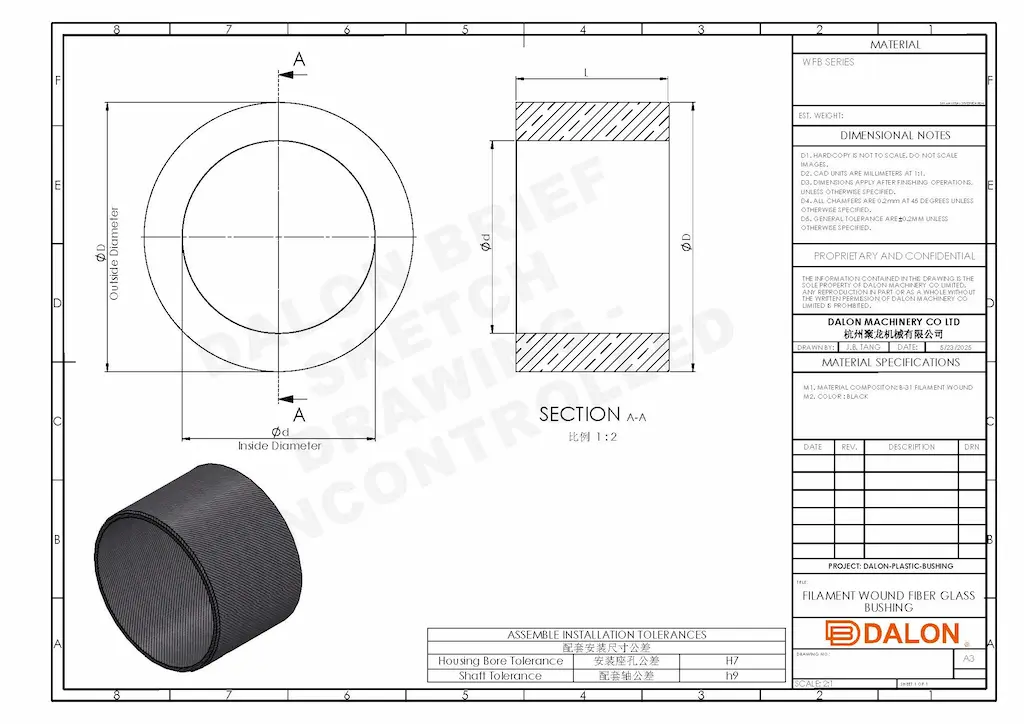

Plastic Bushing – Wound Fiberglass Bushing 20×23×10 mm
DALON’s wound fiberglass bushing in size 20×23×10 mm is a lightweight, self-lubricating plastic composite sleeve bearing designed for dry-running or marginally lubricated environments. Constructed from resin-impregnated fiberglass wound in layers, this bushing delivers outstanding wear resistance, strength, and dimensional stability even under continuous or oscillating motion.
Ideal for applications where metallic bushings are too heavy, overengineered, or prone to corrosion, this wound plastic bushing supports quiet, clean, and maintenance-free operation across diverse industries.
Material: Wound fiberglass + resin composite
Inner Diameter (ID): 20 mm
Outer Diameter (OD): 23 mm
Length: 10 mm
Lubrication Requirement: Dry or boundary-lubricated
Temperature Range: -40°C to +120°C (short-term +150°C)
Load Capacity: Medium load (up to 60 MPa depending on shaft and speed)
Friction Coefficient: ~0.1–0.2 (dry steel shaft)
Lightweight & Non-Metallic: Reduces overall assembly weight
Self-Lubricating: Suitable for dry running, no oil or grease needed
Corrosion Resistant: Performs well in moist or chemical-laden atmospheres
High Wear Resistance: Wound construction enhances durability under dynamic load
Low Noise & Vibration: Smooth operation in sensitive mechanical systems
Automotive pedals, HVAC systems, windshield wipers
Fitness equipment & office chairs
Textile and printing machinery
Food and beverage processing (non-metallic contact)
Agricultural or lawn equipment
Home appliances and industrial small machines
DALON is a professional manufacturer of non-metallic and composite bushings, with extensive expertise in self-lubricating bearing solutions. Our wound fiberglass bushings are developed for high volume, cost-effective, and performance-driven OEM applications worldwide.
We offer:
Custom bushing sizes and wall thicknesses
Special material options (PTFE, POM, PE, PA6 composites)
OEM branding and high-precision production
Optional grooves, flanges, or split structures
Q1: What is a wound fiberglass bushing?
It's a plastic bushing made by winding fiberglass layers into a tube shape and impregnating them with resin, creating a strong and lightweight sleeve.
Q2: Can it run without lubrication?
Yes. It's designed for dry-running applications, although marginal lubrication can extend service life.
Q3: Is it compatible with metal shafts?
Absolutely. It's commonly paired with hardened steel or stainless steel shafts and causes less wear on mating surfaces.
Q4: Can this be used outdoors?
Yes. It resists moisture and mild chemicals, making it ideal for outdoor and semi-exposed installations.
Q5: How does it compare to bronze or sintered bushings?
Plastic bushings are lighter, corrosion-free, quieter, and require no lubrication, while bronze offers higher load but needs greasing.
Q6: Do you offer custom sizes?
Yes. DALON supports full OEM customization in terms of inner/outer diameters, length, grooves, flanges, and slots.
The versatility of WOUND FIBER GLASS BUSHING 20X23X10 makes them ideal for numerous applications, including:
WOUND FIBER GLASS BUSHING 20X23X10 are designed for environments where traditional lubrication is impractical or impossible. They offer outstanding performance, durability, and cost savings, making them the preferred choice for various industries. Experience the reliability and efficiency of WOUND FIBER GLASS BUSHING 20X23X10, tailored to meet the demands of your specific applications.
