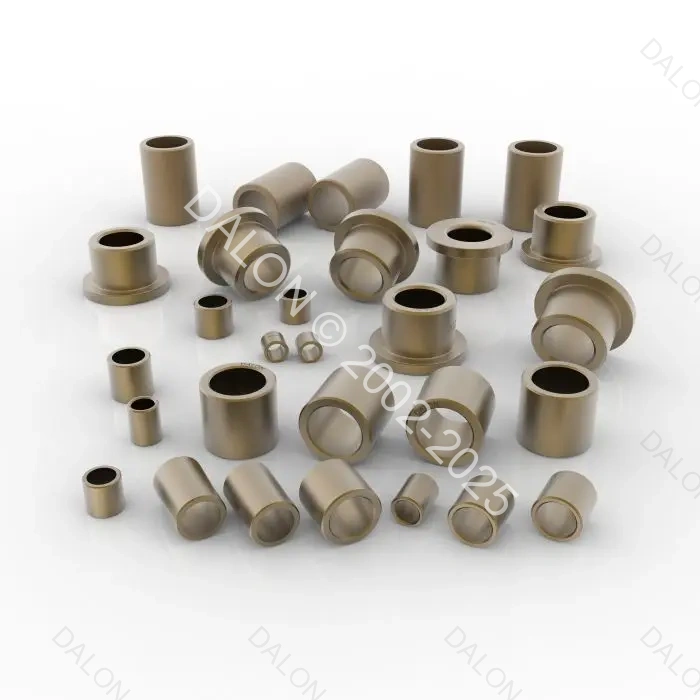

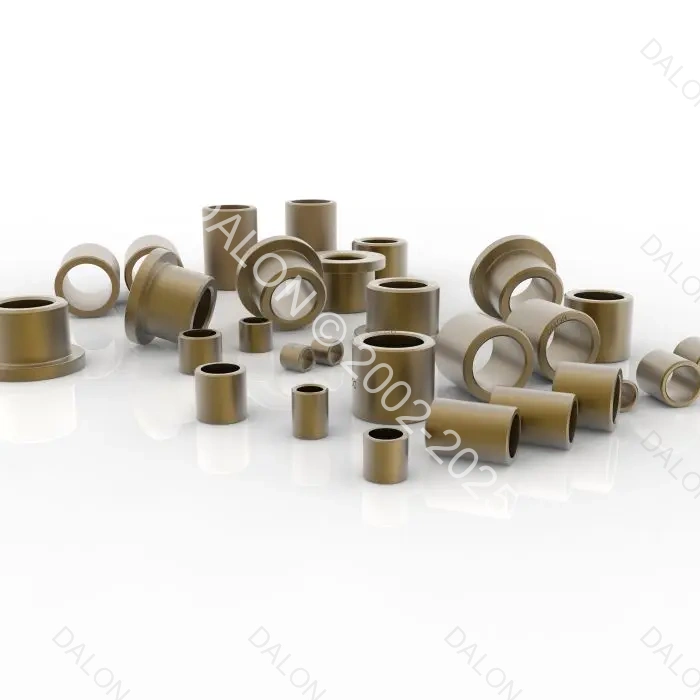

Premium Quality Sintered Bushing
| I.D.(d) | 16 |
| I.D. (d1) | |
| O.D. (D) | 22 |
| O.D. (D1) | |
| Length (L) | 22 |
| Flange Dia. (fd) | 28 |
| Flange Thickness (fl) | 3.5 |
| General Tolerance | F7 r7 js13 |
| Weight(ref)/Gram | 31.00 |
| Minimum Order Qty | 40KGS |
DALON’s 16×22×28×3.5×22 mm flanged brass bushing is a sintered bronze component engineered for precision shaft guidance with axial load support. The integrated flange enables secure axial positioning and easy press-fit mounting, making it ideal for rotating machinery that demands both radial and thrust support.
Made through powder metallurgy, the bushing’s porous structure is impregnated with oil, providing self-lubricating operation and long-term reliability in dry or low-maintenance environments.
Dimensions:
• Inner Diameter (ID): 16 mm
• Outer Diameter (OD): 22 mm
• Total Length: 28 mm
• Flange Thickness: 3.5 mm
• Length Without Flange: 22 mm
Material: Sintered bronze (CuSn-based alloy)
Self-lubricating and maintenance-free
High dimensional accuracy and form stability
Suitable for continuous or oscillating rotation
Corrosion-resistant and vibration-absorbing design
Electric and servo motors
Gearboxes and mechanical drives
Small engines and garden equipment
Packaging, textile, and automation machinery
Fan shafts and rotary arms with end-stop requirement
Agricultural or construction tools requiring thrust load resistance
DALON is a trusted ISO 9001:2015-certified manufacturer specializing in sintered bronze flanged bushings for global OEMs. Our 16×22×28×3.5×22 mm product delivers excellent friction reduction and long service life, even under intermittent lubrication or dirty conditions.
With precision manufacturing and full customization support, DALON provides reliable solutions tailored to your assembly—be it custom flange geometry, clearance class, or surface finish. We're here to support your design from prototype to series production.
Q1: What’s the benefit of a flanged brass bushing?
The flange allows secure axial placement and supports thrust loads while simplifying installation and alignment.
Q2: Does this bushing require oil or grease during operation?
No. It’s pre-impregnated with oil and operates self-lubricated under normal conditions.
Q3: Can this be used in high-vibration environments?
Yes. Its bronze matrix absorbs vibration and minimizes wear, ideal for motors and power tools.
Q4: Is the material really brass or bronze?
It’s sintered bronze (brass-like in appearance) made from a CuSn alloy, commonly used in self-lubricating bearings.
Q5: Can I get this bushing with different tolerances?
Yes. We support custom sizing, H7/h9 tolerances, and special fits per your shaft design.
Q6: Where is this bushing commonly applied?
Used in fans, small gear motors, power tools, automation arms, and devices requiring rotary support with axial retention.
The versatility of SINTERED BRONZE BUSHING 16X22X28X3.5X22 makes them ideal for numerous applications, including:
SINTERED BRONZE BUSHING 16X22X28X3.5X22 are engineered for demanding applications where traditional lubrication methods are impractical. They provide exceptional performance, durability, and cost-effectiveness, making them the preferred choice across various industries. Experience the reliability and efficiency of SINTERED BRONZE BUSHING 16X22X28X3.5X22, designed to meet your specific application requirements.
Our professional team is ready to assist with your inquiry for this 16 mm Flanged Brass Bushing – Self-Lubricating Bronze.
