SINTERED IRON FLANGE BUSHING 25X35X45X5X25

Premium Quality Sintered IronBushing

DALON FLANGE BUSHING

Product Overview

Product Specifications

Manufacturer DALON
Material Iron Base / SAE 863
Type FLANGE BUSHING
Working Temperature ?/td> from -20°C to +120°C
Product Code SIB253545525
Density (g/cm³) from 6.0 to 6.8
HS Code 84839000
Hardness 35 ~ 50 HRB
Static Load (Mpa) 850 kg/cm²
Max Speed (m/s) 5 m/s
Max PV (dry) 1.0 – 1.5 MPa·m/s

Technical Drawings & Dimensions

oil sleeve bearing Technical Drawing

Product Dimensions

I.D.(d) 25
I.D. (d1)
O.D. (D) 35
O.D. (D1)
Length (L) 25
Flange Dia. (fd) 45
Flange Thickness (fl) 5
General Tolerance E7 r7 js13
Weight(ref)/Gram 102.00
Minimum Order Qty 40KGS
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

Sintered Oil Bearing – Flanged Iron Bushing 25×35×45×5×25

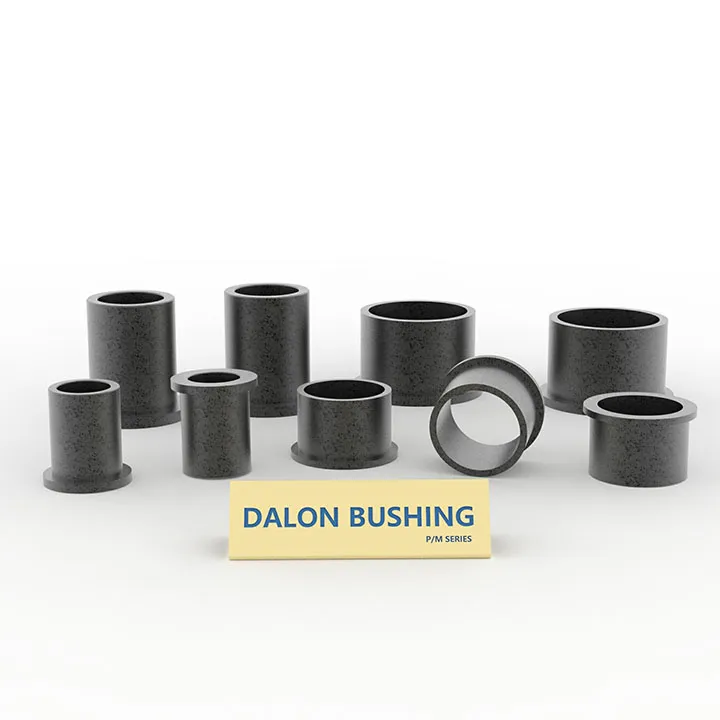

SINTERED IRON FLANGE BUSHING 25X35X45X5X25 Additional image 1

Oil Sleeve Bearing – Sintered Iron Flanged Bushing 25×35×45×5×25

DALON’s 25×35×45×5×25 oil-impregnated flanged iron bushing is a compact, self-lubricating sleeve bearing designed for applications that demand consistent lubrication and high structural strength. Manufactured from sintered iron and vacuum-impregnated with oil, this bushing offers long-term wear resistance with zero maintenance, making it ideal for both rotational and oscillating motion in various mechanical assemblies.

The flanged design allows for easy installation and axial retention, particularly useful for housings that experience vibration or shifting loads. With dimensions formatted as ID × OD × Flange OD × Flange THK × Total Length, this bushing is well-suited for OEM component integration and replacement parts in heavy-duty industrial settings.


Key Features

  • Product Type: Flanged Oil Sleeve Bearing

  • Material: Sintered Iron with Oil Impregnation

  • Size: 25 × 35 × 45 × 5 × 25 mm

  • Lubrication: Self-lubricating via embedded oil reservoirs

  • Design Advantage: Flange for stable axial retention and ease of assembly

  • Wear Resistance: Excellent for mid-to-high load conditions

  • Customization: OEM dimensions, oil types, and fit classes available


Applications

  • Rotating shafts in compressors and pumps

  • Power tools and electric motor supports

  • Agricultural transmission systems

  • Construction and mining equipment

  • Conveyor and material handling assemblies


Why Choose DALON

DALON is a certified ISO 9001:2015 manufacturer of sintered bushings and self-lubricating components with decades of OEM experience.

Our Strengths:

  • Custom Manufacturing – We support made-to-order dimensions, oil grades, tolerances, and performance parameters.

  • Tooling and Delivery

    • Standard mold: Delivery within 30 days

    • Custom mold: Tool design + production delivered within 35–40 days

  • MOQ Support – Flexible minimum order quantity based on mold availability and technical feasibility

  • Trusted Worldwide – Applications across Europe, North America, and Asia


FAQ – Frequently Asked Questions

Q1: What is the main benefit of an oil sleeve bearing?
It provides automatic lubrication from within, reducing friction and wear over time without the need for manual greasing.

Q2: What is the function of the flange?
The flange acts as a stopper or locator to prevent axial movement and simplify installation into housings.

Q3: Can I use this bushing in vertical installations?
Yes. The flange design helps maintain stable alignment in both horizontal and vertical setups.

Q4: How is the bushing lubricated without external grease?
During operation, heat and motion release oil from internal pores, keeping the shaft lubricated.

Q5: Is this product available in metric and inch sizes?
Yes. DALON offers both metric and imperial sizing options for global compatibility.

Q6: What is the delivery time for custom versions?

  • Standard tool: ~30 days

  • Custom-developed tooling: 35–40 days including mold preparation

Q7: What are common alternative terms users search for?

  • Self-lubricating iron bearing

  • Oil sintered flange bushing

  • Flanged iron sleeve bearing

  • Oil embedded sintered bearing

Q8: What industries typically use this bearing?
Used in industrial machinery, agricultural implements, motor assemblies, pumps, power tools, and OEM replacement units.

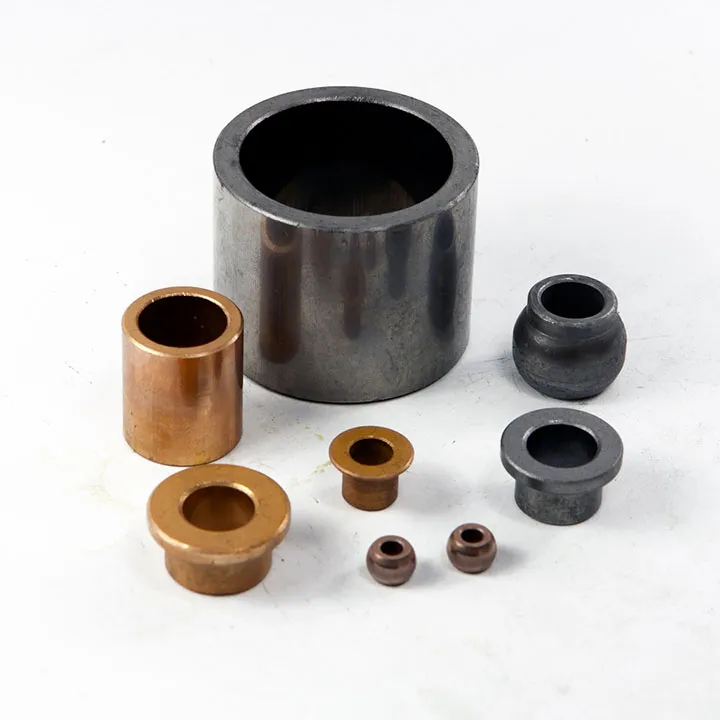

Additional image 2
Oil sleeve bearing 25×35×45×5×25 – Self-lubricating sintered iron flange bushing for heavy-duty OEM use. Customizable, low-maintenance, and reliable.

Applications & Industries

sintered iron Bushing Applications

DALON Sintered Iron Bushing Applications

The versatility of SINTERED IRON FLANGE BUSHING 25X35X45X5X25 makes them ideal for numerous applications, including:

Key Industries

  • Automotive Industry - Engine components, transmission systems, and suspension parts
  • Industrial Machinery - Hydraulic systems, pumps, and heavy equipment
  • Agricultural Equipment - Harvesters, tractors, and irrigation systems
  • Construction Equipment - Excavators, loaders, and heavy machinery
  • Manufacturing - Production lines and assembly equipment
  • Mining Equipment - Drilling rigs and material handling systems
  • Power Generation - Turbines and generator systems

Primary Applications

Automotive Components:
- Essential in engine bearings, transmission systems, and suspension components where high load capacity and wear resistance are critical.
Industrial Equipment:
- Used in hydraulic cylinders, pumps, and heavy machinery where durability and load-bearing capacity are paramount.
Construction Machinery:
- Integral to excavators, loaders, and heavy equipment where they withstand extreme loads and harsh operating conditions.
Manufacturing Systems:
- Critical in production lines and assembly equipment where consistent performance under heavy loads is essential.

Specialized Applications

Agricultural Machinery:
- Deployed in harvesters and tractors where they provide reliable performance in dusty and demanding environments.
Mining Equipment:
- Utilized in drilling rigs and material handling systems where extreme durability and load capacity are required.
Power Generation:
- Critical in turbines and generator systems where they ensure reliable operation under continuous heavy loads.
Heavy Machinery:
- Essential in construction and industrial equipment where they provide superior load-bearing capacity and durability.

Why Choose SINTERED IRON FLANGE BUSHING 25X35X45X5X25?

SINTERED IRON FLANGE BUSHING 25X35X45X5X25 are engineered for heavy-duty applications where superior load capacity and durability are essential. They offer exceptional wear resistance, high load-bearing capabilities, and long service life, making them the ideal choice for demanding industrial applications. Experience the strength and reliability of SINTERED IRON FLANGE BUSHING 25X35X45X5X25, designed to meet the rigorous demands of heavy machinery and industrial equipment.
