STEEL FILTER ELEMENTS 30X47X2 10MICRON

Premium Quality Sintered Steel Filter

DALON SPECIAL DESIGN

Product Overview

Product Specifications

Manufacturer DALON
Material POROUS STAINLESS STEEL
Type SPECIAL DESIGN
Reference Drawing
Product Code DLP202209317
Pore Pitch 10MICRON
HS Code 84219990
RoHS Compliant
REACH Compliant

Technical Drawings & Dimensions

stainless steel powder sintered filter Technical Drawing

Product Dimensions

I.D.(d)
I.D. (d1)
O.D. (D)
O.D. (D1)
Length (L)
Flange Dia. (fd)
Flange Thickness (fl)
General Tolerance ±0.3mm
Weight(ref)/Gram 0.00
Minimum Order Qty 0
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

Stainless Steel Sintered Filter – Engineered by DALON

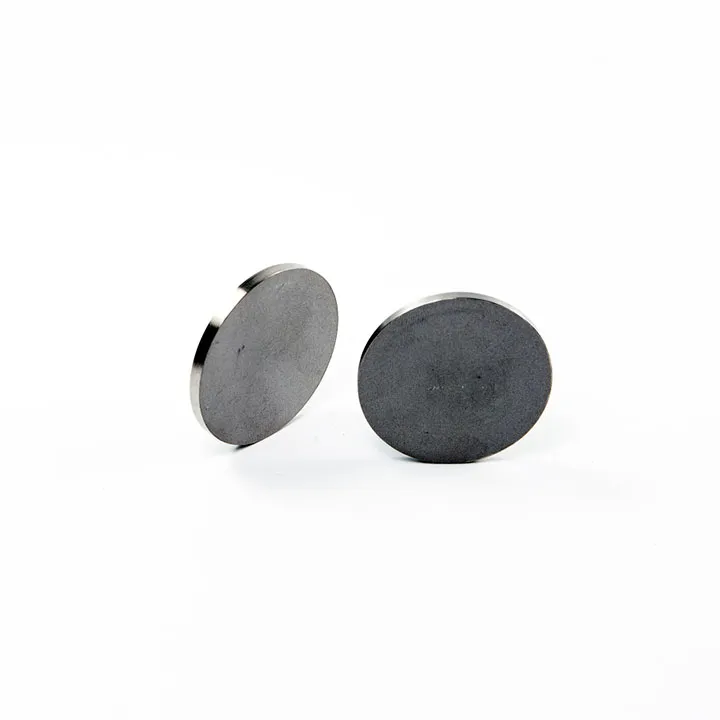

STEEL FILTER ELEMENTS 30X47X2 10MICRON Additional image 1

DALON’s stainless steel powder sintered filter element, sized at 30 mm × 47 mm × 2 mm with a 10-micron filtration rating, is a compact and efficient solution for precision filtration in both liquid and gas applications. Manufactured from high-purity stainless steel powder using advanced sintering technology, this disc filter offers exceptional durability, resistance to corrosion, and consistent flow performance across a wide range of environments.

The sintering process fuses stainless steel powder under high temperature and pressure, forming a uniform porous structure that effectively traps contaminants such as dust, oil mist, metal fines, and rust particles, while maintaining optimal flow rates. Its 10µm nominal pore size makes it suitable for mid-level filtration needs in chemical processing, automotive systems, medical devices, and instrumentation protection.

The compact flat-disc format is ideal for inline filtration, end-cap sealing, or integration into cartridge-style housings, valve assemblies, and pressure control devices. This product supports high-temperature operations, is easily cleanable and reusable, and maintains filtration integrity even under cyclic pressure conditions.


Key Features

  • Filtration Rating: 10 microns (nominal)

  • Dimensions: Ø30 mm × 47 mm × 2 mm thickness

  • Material: Sintered stainless steel (typically SS316L)

  • Uniform porous matrix for reliable filtration performance

  • Withstands harsh chemicals, high pressure, and thermal cycling

  • Compatible with ultrasonic cleaning, backflushing, or solvent rinsing

  • Non-shedding, non-corrosive, and non-reactive—ideal for critical systems

  • Compact size for design-constrained filter integration


Applications

  • Pneumatic and hydraulic pressure regulators

  • Oil and fuel filtration systems in vehicles and equipment

  • Inline filtration in chemical dosing and gas supply lines

  • Breathable filter discs for valves or pressure sensors

  • Sample filtration in laboratory and process control systems

  • Environmental protection in electronic or sensor housings


Why Choose DALON

DALON is a leading manufacturer of metal powder sintered filters certified under ISO 9001:2015. We provide:

  • Tailored production of discs, cartridges, and caps in sintered SS, bronze, or PE

  • Reliable pore size control from 1–150 µm with ± tolerance

  • Custom options: size, thread, profile, and housing compatibility

  • Short lead times: 30 days for in-stock molds, 35–40 days for custom designs including tooling

  • Global supply for OEMs in automotive, medical, instrumentation, and automation

Let us help you design the most durable and precise sintered filter solution for your application.


FAQ – Frequently Asked Questions

Q1: What is the main use of a 10µm stainless powder filter?
It's used to remove fine particles in gas or fluid systems such as regulators, dosing valves, and sensors.

Q2: Can this filter be reused after clogging?
Yes. The element is designed for repeated cleaning via backflushing, ultrasonic washing, or solvent cleaning.

Q3: Is it safe for chemical environments?
Absolutely. SS316L sintered metal is chemically inert and corrosion-resistant, making it suitable for aggressive media.

Q4: Can I use it in high-temperature conditions?
Yes. Sintered stainless steel can typically withstand temperatures up to 500°C without degradation.

Q5: What industries use powder sintered disc filters?
Common in medical, chemical, pneumatic, instrumentation, food processing, and hydraulic systems.

Q6: Is customization available?
Yes. DALON offers customized pore size, diameter, thickness, and compatibility with screw-thread or welded assemblies.


People Also Ask – Answered

What is a sintered powder filter?
A sintered powder filter is made by bonding metal powder under high heat to create a durable porous structure that filters fluids or gases.

What’s the difference between mesh and powder filters?
Powder sintered filters offer finer, more uniform pores, higher strength, and better performance at high pressures compared to woven mesh filters.

How long does a sintered filter last?
Depending on the application and maintenance, sintered filters can last several years with regular cleaning and minimal wear.

Can I order low volume or samples?
Yes. DALON supports prototype and small batch orders—contact us for MOQ and lead time.

Additional image 2
STEEL FILTER ELEMENT 30×47×2 mm – 10µm stainless steel powder sintered filter for air, oil, or gas filtration in compact industrial or lab systems.

Applications & Industries

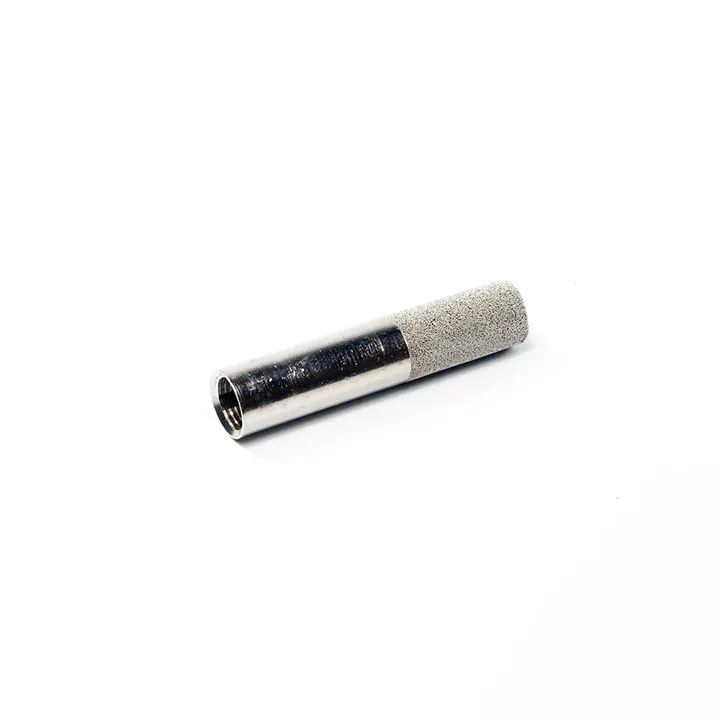

Filter Silencing Applications Filter Silencing Applications

Chemical & Manufacturing

  • CHEMICAL INDUSTRIES
  • SEMICONDUCTOR
  • SCIENTIFIC INSTRUMENT
  • PHARMACEUTICAL
  • POLYMER FILTRATION
  • GAS AND LIQUID FILTRATION
Fluidization Applications Filter Silencing Applications

Common Applications

  • SILENCING
  • SPARGING
  • FLUIDIZATION
  • SENSOR AND VALVE PROTECTION
  • FLOW RESTRICTION
  • HANDLING OF BULK MATERIAL
Filter Applications

Industry Solutions

The versatility of STEEL FILTER ELEMENTS 30X47X2 10MICRON makes them ideal for various industrial applications. Key industries that benefit from these steel filters include:

Chemical & Pharmaceutical:
- For precise filtration in chemical processing, pharmaceutical manufacturing, and laboratory applications.
Semiconductor & Electronics:
- In clean room environments and semiconductor manufacturing where high-purity filtration is critical.
Manufacturing & Processing:
- For industrial gas and liquid filtration in manufacturing processes and production lines.
Water & Waste Treatment:
- In water purification systems and wastewater treatment where reliable filtration is essential.
Air & Gas Systems:
- For air filtration, gas distribution, and pneumatic systems requiring precise flow control.
