STAINLESS STEEL SS316 WIRE MESH FILTER 16X6.5 FOR SSDV 3/8

Premium Quality Wire Filter

DALON SPECIAL DESIGN

Product Overview

Product Specifications

Manufacturer DALON
Material STAINLESS STEEL WIRES
Type SPECIAL DESIGN
Reference Drawing
Product Code DLP202001003
Wire Diameter
HS Code 84219990
RoHS Compliant
REACH Compliant

Technical Drawings & Dimensions

sintered wire mesh filter Technical Drawing

Product Dimensions

I.D.(d) 12.5
I.D. (d1)
O.D. (D) 13
O.D. (D1)
Length (L) 2
Flange Dia. (fd) 16
Flange Thickness (fl) 6.5
General Tolerance ±0.3mm
Weight(ref)/Gram 0.00
Minimum Order Qty 0
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

Stainless Steel Wire Mesh Filter – Durable 16×6.5 SSDV Element

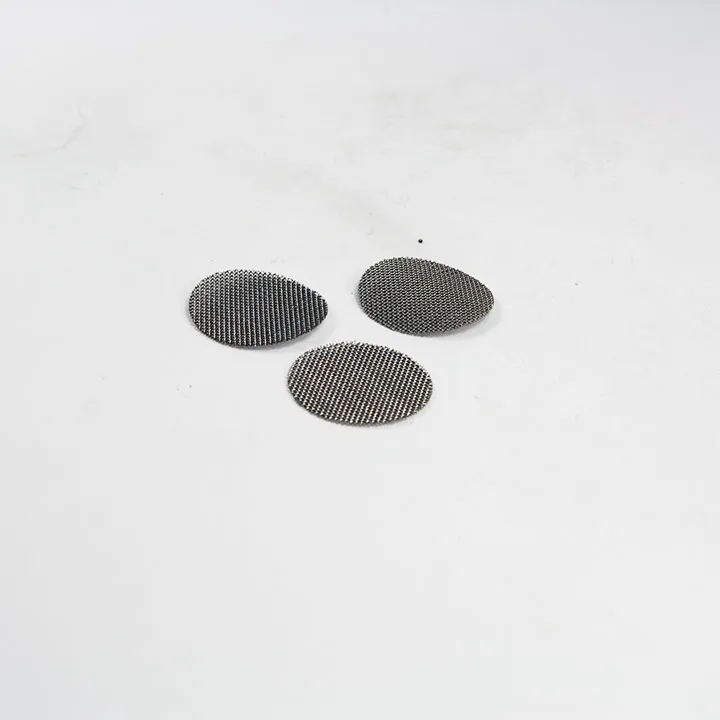

STAINLESS STEEL SS316 WIRE MESH FILTER 16X6.5 FOR SSDV 3/8 Additional image 1

DALON’s 16×6.5 mm sintered wire mesh filter, made from high-grade SS316 stainless steel, offers durable, compact filtration performance in demanding environments. Specifically engineered for SSDV 3/8 systems, this wire mesh filter provides precise particle retention while maintaining high flow rates and mechanical strength in gas, oil, or fluid handling applications.



The sintered wire mesh structure is composed of multiple woven stainless steel layers bonded together, creating a rigid, porous body with stable pore geometry. This allows for reliable filtration of particulates such as scale, rust, and dust, even under pressure variations and thermal fluctuations.



Ideal for pneumatic controls, hydraulic valves, dosing devices, and process sampling, the filter’s compact cylindrical shape fits seamlessly into SSDV 3/8 ports or other small housing designs. Its corrosion resistance, heat tolerance, and reusability make it a trusted solution for OEM and industrial engineers alike.








Key Features





  • Material: Sintered SS316 stainless steel

  • Filtration Type: Multi-layer woven wire mesh

  • Size: 16 mm diameter × 6.5 mm length

  • Connection Fit: Compatible with SSDV 3/8 systems

  • Pore Stability: Uniform pore size and mechanical durability

  • Resistant to: High temperature, corrosion, pressure variations

  • Reusable: Washable with solvents or ultrasonic cleaning










Applications





  • SSDV 3/8 inlet and outlet filtration

  • Pneumatic valve and actuator protection

  • Hydraulic circuit protection in small equipment

  • Inline filtering for dosing and control systems

  • Gas filtration in instrumentation or sensor units

  • Fluid sample preparation in process control lines










Why Choose DALON





DALON provides OEM-grade filtration components tailored to technical specifications across various industrial sectors. Our ISO 9001:2015-certified production ensures tight dimensional control, pore uniformity, and long service life.



We support:



  • Full customization of filter diameter, length, and micron grade

  • Rapid prototyping and tooling for new designs

  • Material traceability and batch consistency

  • MOQ flexibility for prototyping or full-scale production

  • Delivery time of 30 days for standard parts and 35–40 days for custom filters, including mold development





With in-house sintering and CNC shaping capabilities, DALON ensures precision-fit filters for compact devices and high-reliability systems.








FAQ – Frequently Asked Questions





Q1: What does a sintered wire mesh filter remove?

It removes fine contaminants like rust, metal particles, or scale from fluids or air streams without restricting flow.



Q2: Is the SS316 material resistant to corrosion?

Yes. SS316 is marine-grade stainless steel, highly resistant to moisture, acids, and chemicals.



Q3: Can I wash and reuse this filter?

Absolutely. It is fully washable and supports cleaning via backflush, solvents, or ultrasonic baths.



Q4: How long does this filter last?

Service life depends on media and application but typically supports extended use over multiple cycles without degradation.



Q5: What industries use this type of wire mesh filter?

Used in pneumatic controls, analytical devices, hydraulic circuits, environmental sensors, and precision metering systems.








What Do People Also Ask





Q: Is sintered mesh better than woven mesh?

Sintered mesh is structurally stronger and offers consistent pore distribution; it’s preferred in high-pressure or precision applications.



Q: What is the pore size range of sintered wire mesh filters?

Typical pore sizes range from 5 to 200 microns depending on the number of mesh layers and weave density.



Q: Can sintered wire filters handle high temperature?

Yes. SS316 filters can operate in temperatures up to 500°C depending on structure and system design.



Q: Are these filters safe for food or pharma use?

Yes, SS316 is compliant for hygienic applications when produced under controlled conditions.

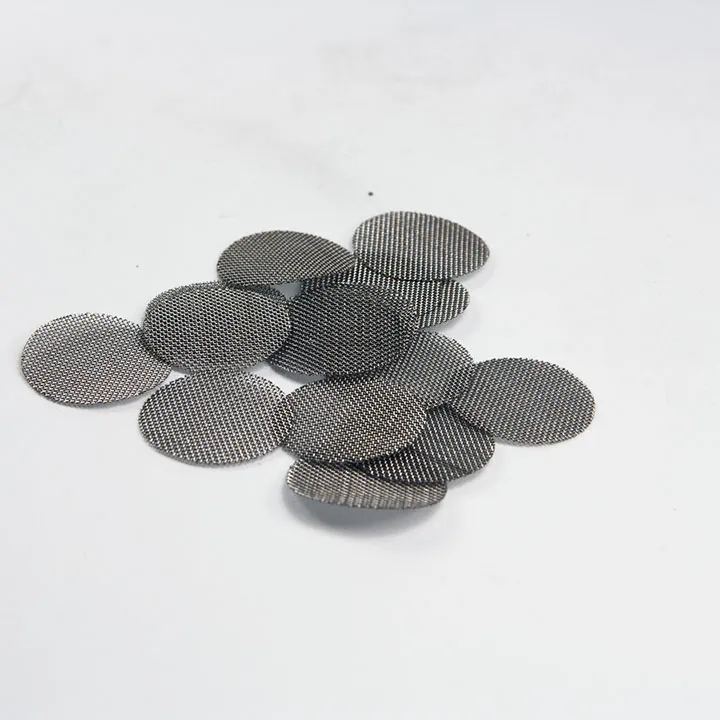

Additional image 2
Sintered wire mesh filter made of SS316 stainless steel, 16×6.5 mm for SSDV 3/8. Compact, reusable filter ideal for air, gas, or hydraulic system protection.

Applications & Industries

Filter Silencing Applications Filter Silencing Applications

Chemical & Manufacturing

  • CHEMICAL INDUSTRIES
  • SEMICONDUCTOR
  • SCIENTIFIC INSTRUMENT
  • PHARMACEUTICAL
  • POLYMER FILTRATION
  • GAS AND LIQUID FILTRATION
Fluidization Applications Filter Silencing Applications

Common Applications

  • SILENCING
  • SPARGING
  • FLUIDIZATION
  • SENSOR AND VALVE PROTECTION
  • FLOW RESTRICTION
  • HANDLING OF BULK MATERIAL
Filter Applications

Industry Solutions

The versatility of STAINLESS STEEL SS316 WIRE MESH FILTER 16X6.5 FOR SSDV 3/8 makes them ideal for various industrial applications. Key industries that benefit from these wire filters include:

Chemical & Pharmaceutical:
- For precise filtration in chemical processing, pharmaceutical manufacturing, and laboratory applications.
Semiconductor & Electronics:
- In clean room environments and semiconductor manufacturing where high-purity filtration is critical.
Manufacturing & Processing:
- For industrial gas and liquid filtration in manufacturing processes and production lines.
Water & Waste Treatment:
- In water purification systems and wastewater treatment where reliable filtration is essential.
Air & Gas Systems:
- For air filtration, gas distribution, and pneumatic systems requiring precise flow control.
