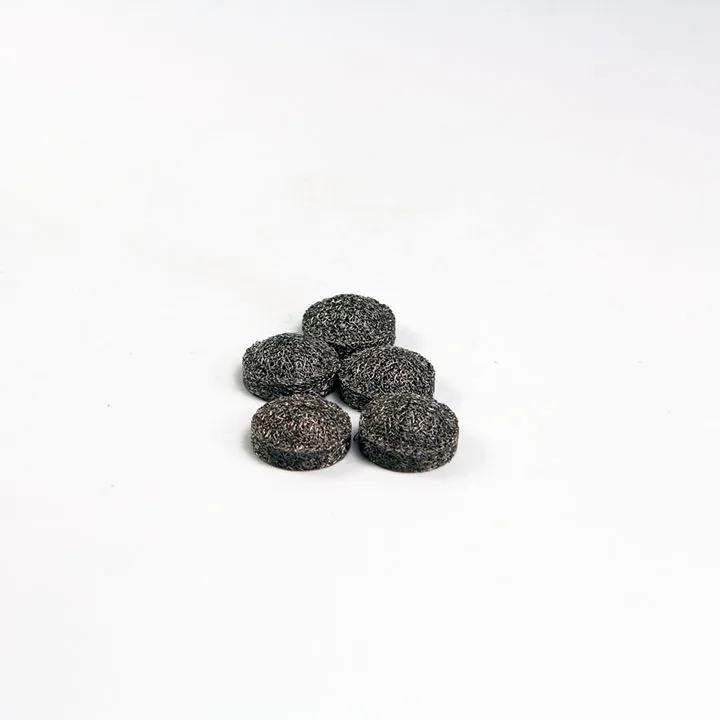

STAINLESS STEEL SS316 WIRE MESH FILTER 27.8X9 FOR SSDV

DALON’s SS316 wire mesh filter cartridge, sized at 27.8 mm length × 9 mm diameter, is a compact and robust filtration element developed specifically for SSDV (Solenoid Spool Directional Valve) and similar high-precision hydraulic and pneumatic components. Fabricated from corrosion-resistant AISI 316 stainless steel, this filter provides reliable particulate retention, mechanical strength, and long service life even under extreme operating conditions.

Designed for inline installation within fluid control devices, this filter cartridge uses sintered or multilayer woven wire mesh to trap contaminants such as metal particles, sediment, and seal wear debris before they enter sensitive valve spools or actuators. Its compact cylindrical form factor fits snugly within small valve bodies and control cavities, helping to prevent clogging, extend equipment life, and ensure smooth operation of precision fluid systems.

This filter element is ideal for equipment requiring clean hydraulic media or gases, including aerospace, industrial automation, energy systems, and scientific instrumentation. The SS316 material offers enhanced resistance to corrosion, acids, and elevated temperature environments.

Key Features

• Material: AISI 316 Stainless Steel

• Dimensions: 27.8 mm length × 9 mm outer diameter

• Mesh Construction: Woven or sintered mesh (customizable micron rating)

• Form: Cylindrical cartridge for direct valve insertion

• Chemical Resistance: Excellent for oils, gases, solvents, and hydraulic fluids

• Cleaning: Fully washable and reusable

Applications

• Hydraulic SSDV solenoid valves

• Gas flow regulators and pressure control units

• Pneumatic actuation systems

• Oil/gas separation instruments

• Fuel injection and chemical dosing devices

• Control panel equipment in aerospace, robotics, and fluid labs

Why Choose DALON

DALON is an ISO 9001:2015-certified manufacturer specializing in OEM wire mesh filter solutions. Our stainless steel filter cartridges are produced with tight tolerance control, stable mesh alignment, and clean edges for optimal fit and functionality.

We offer:

• Custom mesh ratings (5 to 300 microns)

• Sintered or layered mesh types

• OEM customization for length, diameter, housing fitment

• Optional end caps, seals, and thread connections

Delivery:

• Standard mold products: ~30 days

• Custom size with tooling: 35–40 days including mold

• MOQ: Based on application – contact DALON for details

FAQ – Frequently Asked Questions

Q1: What contaminants can the SS filter cartridge remove?
It removes small solid particles like rust flakes, metal shavings, seal debris, and sediment from hydraulic oil or gas streams.

Q2: Can this stainless filter be reused?
Yes. It can be cleaned and reused multiple times using ultrasonic baths, solvents, or compressed air.

Q3: Is this cartridge suitable for aggressive fluids?
Yes. SS316 offers excellent corrosion resistance in acidic, basic, or salt-rich environments.

Q4: How is this filter used in SSDV systems?
It is inserted into the valve body or fluid cavity to trap contaminants before they interfere with spool movement or sealing.

Q5: What is the filtration rating of this cartridge?
Standard mesh is customizable. Common values range from 25 to 150 microns depending on system pressure and media type.

Q6: What industries rely on SS filter cartridges like this?
Commonly used in automation, fluid controls, robotics, aerospace, chemical handling, and precision valve manufacturing.
