STAINLESS STEEL WIRE FILTER DISC 8X55X6

Premium Quality Wire Filter

DALON SPECIAL DESIGN

Product Overview

Product Specifications

Manufacturer DALON
Material STAINLESS STEEL WIRES
Type SPECIAL DESIGN
Reference Drawing
Product Code DLP202004083
Wire Diameter
HS Code 84219990
RoHS Compliant
REACH Compliant

Technical Drawings & Dimensions

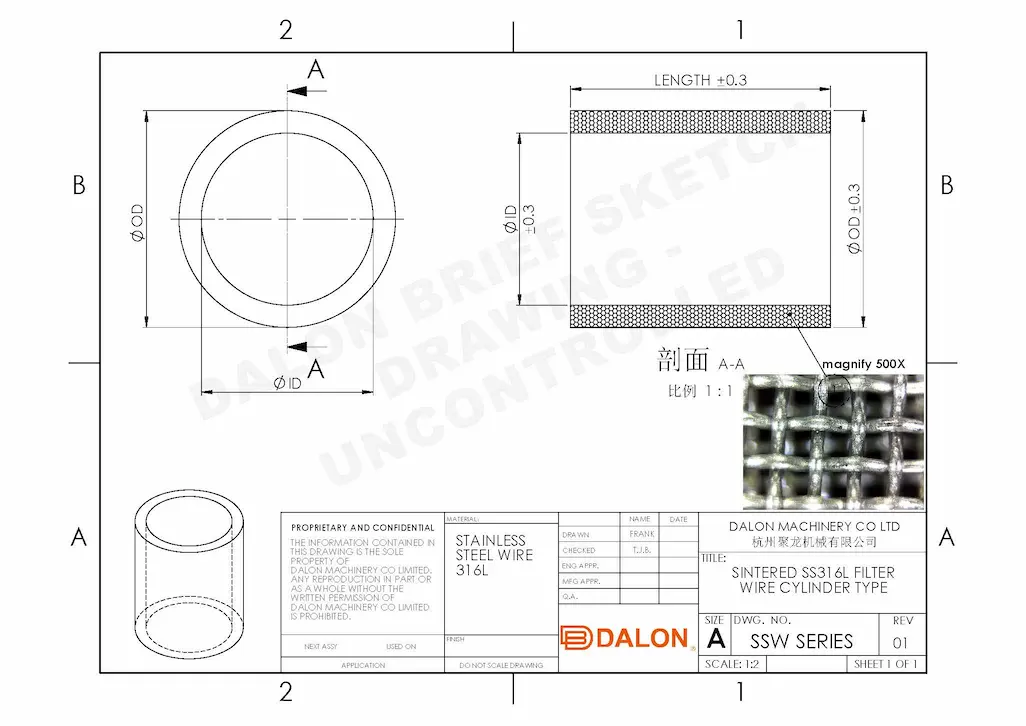

stainless steel cartridge Technical Drawing

Product Dimensions

I.D.(d) 8
I.D. (d1)
O.D. (D) 55
O.D. (D1)
Length (L) 6
Flange Dia. (fd)
Flange Thickness (fl)
General Tolerance ±0.3mm
Weight(ref)/Gram 0.00
Minimum Order Qty 0
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

Stainless Steel Cartridge Filter – 8 mm OD × 55 mm × 6 mm Disc

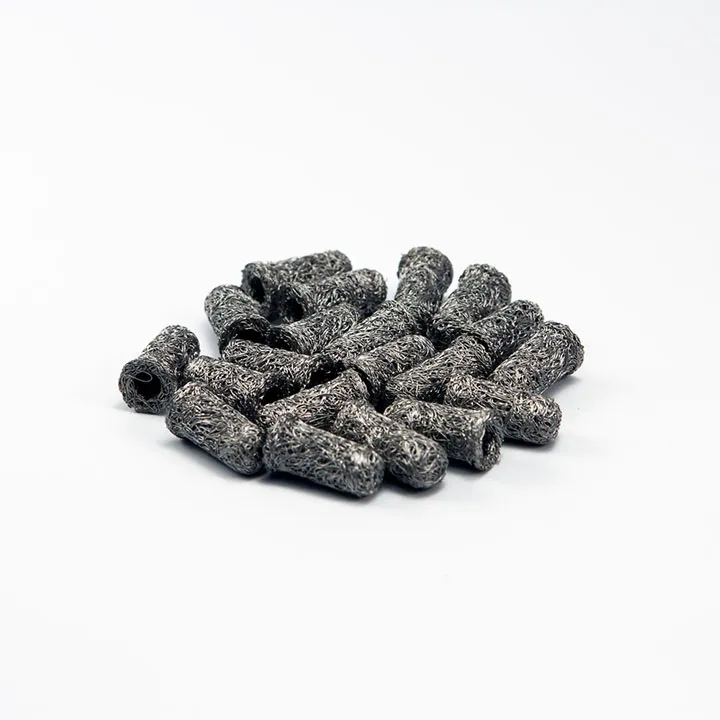

STAINLESS STEEL WIRE FILTER DISC 8X55X6 Additional image 1

DALON’s Stainless Steel Cartridge (8×55×6 mm) is a durable, reusable wire mesh filter component made for precision filtration in demanding fluid and gas systems. Manufactured from high-quality sintered stainless steel, this cartridge filter delivers mechanical strength, fine particle retention, and exceptional resistance to pressure, corrosion, and temperature variation.



Its slim 8 mm diameter and 55 mm length make it ideal for inline installation in compact systems such as analytical instruments, dosing systems, compressor valves, or pneumatic control units. The sintered multi-layer mesh design guarantees stable filtration performance, with consistent pore size distribution and long service life, even under cyclical or aggressive conditions.



With a wall thickness of 6 mm, the filter maintains structural rigidity, making it suitable for both static and dynamic applications where filter deformation is a concern. Stainless steel construction ensures compatibility with a wide range of fluids, including aggressive solvents, oils, or steam.








Key Features





  • Material: Sintered Stainless Steel (e.g., SS316 or SS304)

  • Size: 8 mm outer diameter × 55 mm length × 6 mm wall thickness

  • Structure: Multi-layer wire mesh sintered into a solid cartridge

  • Reusable: Cleanable by ultrasonic, chemical soaking, or backflushing

  • Performance: High strength, corrosion-resistant, and thermally stable

  • Micron Rating: Customizable from 5 to 200 µm depending on application










Applications





  • Fine filtration in gas and air systems (regulators, compressors)

  • Oil and fuel filtration in engines, hydraulic systems, or generators

  • Chemical process filtration in reactors and dosing units

  • Protection filters for pressure sensors, solenoid valves, or analyzers

  • Pneumatic filtration in factory automation and robotics










Why Choose DALON





DALON provides precision-manufactured stainless steel filter cartridges trusted across global industries. We produce our filters under ISO 9001:2015 quality standards, ensuring reliable pore size accuracy and dimensional consistency.



We offer:



  • Custom filter design for OEM needs

  • Sintered mesh solutions in SS304, SS316L, and other alloys

  • Full support for prototyping, batch production, and private labeling

  • Delivery within 30 days for standard tools; 35–40 days for custom builds including tooling





For specialized applications, our team supports you in selecting the right pore size, connection type, and configuration.








FAQ – Frequently Asked Questions





Q1: What’s this stainless steel cartridge used for?

It is used for filtration in pneumatic, hydraulic, fuel, gas, and chemical systems, especially where space is limited and high durability is required.



Q2: Is the cartridge washable and reusable?

Yes. It can be cleaned and reused multiple times via backflushing, ultrasonic baths, or chemical rinsing.



Q3: Can the pore size be customized?

Absolutely. DALON offers custom micron ratings ranging from 5 to 200 µm based on your flow and particle retention needs.



Q4: What pressure can this filter handle?

Stainless steel sintered cartridges can withstand high differential pressures and are ideal for both high-flow and low-pressure-drop systems.



Q5: What materials are available?

Standard material is SS316L, but SS304 and other alloys can be offered on request for different corrosion resistance needs.



Q6: What do people also ask about stainless steel cartridges?



  • Q: How long do stainless steel filter cartridges last?

    When maintained properly, they can last years. Their lifespan depends on application, media, and cleaning frequency.

  • Q: Can stainless steel cartridges replace disposable filters?

    Yes. They are eco-friendly alternatives to disposable cartridges and reduce long-term operating costs.

  • Q: Are these cartridges suitable for potable water?

    Yes. With food-grade stainless steel and proper surface finish, they can be used in water purification systems.

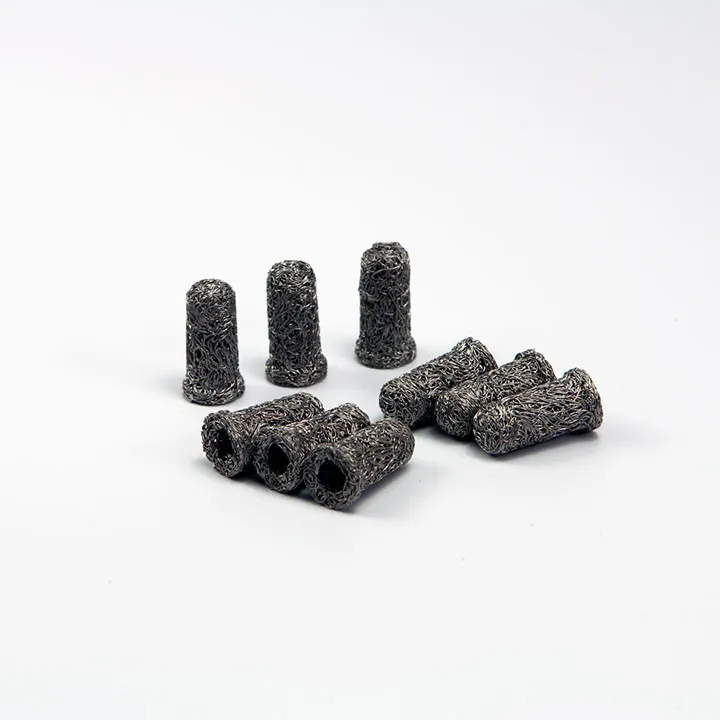

Additional image 2
Stainless steel wire filter cartridge 8×55×6 mm offers durable, reusable filtration for fluid, air, or chemical systems. Precision sintered mesh ensures long-term performance.

Applications & Industries

Filter Silencing Applications Filter Silencing Applications

Chemical & Manufacturing

  • CHEMICAL INDUSTRIES
  • SEMICONDUCTOR
  • SCIENTIFIC INSTRUMENT
  • PHARMACEUTICAL
  • POLYMER FILTRATION
  • GAS AND LIQUID FILTRATION
Fluidization Applications Filter Silencing Applications

Common Applications

  • SILENCING
  • SPARGING
  • FLUIDIZATION
  • SENSOR AND VALVE PROTECTION
  • FLOW RESTRICTION
  • HANDLING OF BULK MATERIAL
Filter Applications

Industry Solutions

The versatility of STAINLESS STEEL WIRE FILTER DISC 8X55X6 makes them ideal for various industrial applications. Key industries that benefit from these wire filters include:

Chemical & Pharmaceutical:
- For precise filtration in chemical processing, pharmaceutical manufacturing, and laboratory applications.
Semiconductor & Electronics:
- In clean room environments and semiconductor manufacturing where high-purity filtration is critical.
Manufacturing & Processing:
- For industrial gas and liquid filtration in manufacturing processes and production lines.
Water & Waste Treatment:
- In water purification systems and wastewater treatment where reliable filtration is essential.
Air & Gas Systems:
- For air filtration, gas distribution, and pneumatic systems requiring precise flow control.
