SINTERED STAINLESS STEEL SS316L WIRE FILTER DISC 86X8.5X1.8

Premium Quality Wire Filter

DALON SPECIAL DESIGN

Product Overview

Product Specifications

Manufacturer DALON
Material STAINLESS STEEL WIRES
Type SPECIAL DESIGN
Reference Drawing WFD86.8-5.1-8W05
Product Code DLP202103038
Wire Diameter
HS Code 84219990
RoHS Compliant
REACH Compliant

Technical Drawings & Dimensions

Stainless Steel Woven Wire Filter Technical Drawing

Product Dimensions

I.D.(d) 8.5
I.D. (d1)
O.D. (D) 86
O.D. (D1)
Length (L) 1.8
Flange Dia. (fd)
Flange Thickness (fl)
General Tolerance ±0.3mm
Weight(ref)/Gram 0.00
Minimum Order Qty 0
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

Wire Filter Cartridge – Stainless Steel 8×55×6 mm for Fluid Systems

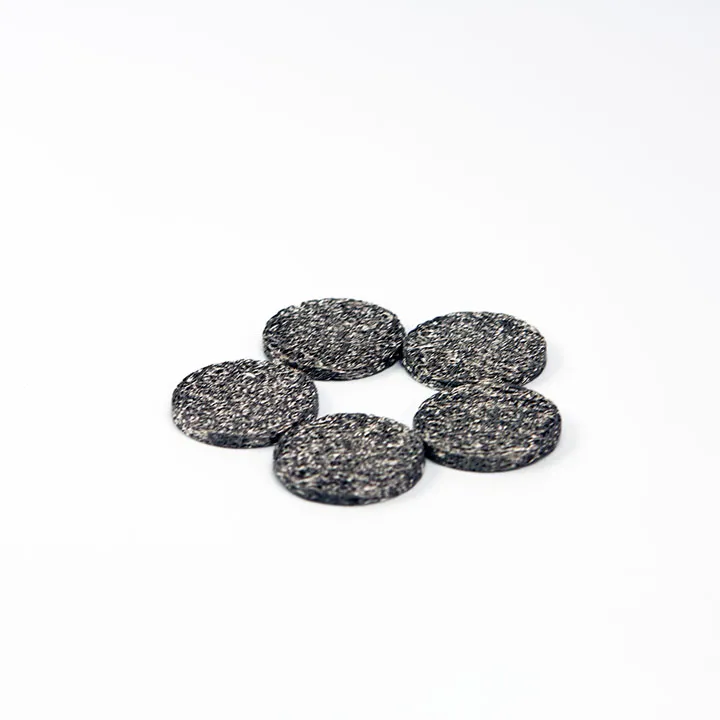

SINTERED STAINLESS STEEL SS316L WIRE FILTER DISC 86X8.5X1.8 Additional image 1

DALON’s Sintered Stainless Steel Woven Wire Filter Disc (86×8.5×1.8 mm) is a high-performance filtration component designed for industrial environments requiring strength, corrosion resistance, and consistent fluid or air flow. Constructed from sintered SS316L woven mesh, this filter disc is engineered for precision filtration in gas, liquid, or chemical systems where durability and cleanliness are essential.

This product features a multi-layer sintered stainless steel mesh construction that offers a robust structure with uniform pore size, ensuring accurate particle capture and reduced risk of deformation under pressure. The disc’s dimensions—86 mm in diameter, 8.5 mm internal diameter, and 1.8 mm thick—make it ideal for integration into filter housings, fluid control devices, compressor valves, and chemical equipment.

With excellent chemical and thermal stability, this stainless steel woven wire filter is suitable for repeated use and can be cleaned via ultrasonic baths, backflushing, or solvent immersion. The sintered mesh ensures fixed pore sizes that do not shift or collapse, making it superior to traditional woven mesh alone.






Key Features

  • Material: Sintered Stainless Steel SS316L

  • Dimensions: Outer Ø86 mm × Inner Ø8.5 mm × Thickness 1.8 mm

  • Filtration: Multi-layer sintered woven wire mesh (customizable micron rating)

  • Structure: Stable, rigid, and uniform pore matrix

  • Performance: Low pressure drop, high strength, long service life

  • Cleaning: Fully washable and reusable

  • Compatibility: Resistant to acids, alkalis, and high temperatures






Applications

  • Chemical and pharmaceutical fluid filtration

  • Compressed air systems and gas purification

  • Fuel and hydraulic system protection

  • Vacuum pump and vacuum chamber filtration

  • Industrial process lines in food & beverage or petrochemical

  • Water treatment and wastewater filtration systems






Why Choose DALON

DALON is a trusted global manufacturer of sintered metal filters, with ISO 9001:2015-certified facilities and over two decades of experience. Our stainless steel wire mesh filters are engineered for precision and long-term reliability.

We support full customization including:

  • Filter size and thickness

  • Pore size and mesh weave

  • Internal diameters or mounting configurations

  • OEM integration support and batch traceability



For custom designs, our typical lead time is 35–40 days, including tooling. Existing mold items can be delivered within 30 days. Minimum order quantities depend on the complexity and will be confirmed on request.




FAQ – Frequently Asked Questions



Q1: What is a stainless steel woven wire filter used for?

It’s used in systems requiring high precision and corrosion resistance, such as chemical plants, gas filtration units, compressors, and fuel lines.



Q2: How is the woven wire mesh sintered?

Multiple stainless steel mesh layers are compressed and bonded under high temperature in a vacuum furnace, forming a rigid porous structure.



Q3: Can this disc be reused after filtering?

Yes. The SS316L filter disc can be cleaned and reused many times using backflushing, ultrasonic cleaning, or solvent soaking.



Q4: What pressure or temperature can it withstand?

SS316L sintered mesh handles high differential pressures and can operate in elevated temperatures above 400°C depending on the system.



Q5: Is it suitable for aggressive chemicals?

Yes. SS316L offers superior resistance to acids, bases, and solvents, making it ideal for harsh process environments.



Q6: How soon can customized discs be delivered?

Custom parts generally ship within 35–40 days. In-stock or existing-tooling products can ship in 30 days.



Q7: What do People Also Ask about this filter type?



  • Q: What’s the advantage of a sintered wire filter over traditional mesh?

    A sintered filter has fixed pores that don’t shift under pressure, improving reliability, cleaning ease, and reusability.

  • Q: Can this be used in oil systems?

    Yes, it is widely used for oil filtration in compressors, fuel systems, and lubrication modules.

  • Q: How fine can the mesh be?

    Depending on your needs, DALON offers sintered stainless wire filters with pore ratings from 5 to 200 microns.



Additional image 2
Stainless steel woven wire filter disc 86×8.5×1.8 mm made of sintered SS316L. High-strength, washable, corrosion-resistant mesh filter for industrial air or fluid systems.

Applications & Industries

Filter Silencing Applications Filter Silencing Applications

Chemical & Manufacturing

  • CHEMICAL INDUSTRIES
  • SEMICONDUCTOR
  • SCIENTIFIC INSTRUMENT
  • PHARMACEUTICAL
  • POLYMER FILTRATION
  • GAS AND LIQUID FILTRATION
Fluidization Applications Filter Silencing Applications

Common Applications

  • SILENCING
  • SPARGING
  • FLUIDIZATION
  • SENSOR AND VALVE PROTECTION
  • FLOW RESTRICTION
  • HANDLING OF BULK MATERIAL
Filter Applications

Industry Solutions

The versatility of SINTERED STAINLESS STEEL SS316L WIRE FILTER DISC 86X8.5X1.8 makes them ideal for various industrial applications. Key industries that benefit from these wire filters include:

Chemical & Pharmaceutical:
- For precise filtration in chemical processing, pharmaceutical manufacturing, and laboratory applications.
Semiconductor & Electronics:
- In clean room environments and semiconductor manufacturing where high-purity filtration is critical.
Manufacturing & Processing:
- For industrial gas and liquid filtration in manufacturing processes and production lines.
Water & Waste Treatment:
- In water purification systems and wastewater treatment where reliable filtration is essential.
Air & Gas Systems:
- For air filtration, gas distribution, and pneumatic systems requiring precise flow control.
