AISI316 WIRE FILTER DISC 6.2X6 DIAMETER 0.13MM

Premium Quality Wire Filter

DALON DISC FILTER

Product Overview

Product Specifications

Manufacturer DALON
Material STAINLESS STEEL WIRES
Type DISC FILTER
Reference Drawing
Product Code DLP202405167
Wire Diameter
HS Code 84219990
RoHS Compliant
REACH Compliant

Technical Drawings & Dimensions

Wire Mesh Air Filter Technical Drawing

Product Dimensions

I.D.(d)
I.D. (d1)
O.D. (D) 6.2
O.D. (D1)
Length (L) 6
Flange Dia. (fd)
Flange Thickness (fl)
General Tolerance ±0.3mm
Weight(ref)/Gram 0.00
Minimum Order Qty 0
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

AISI316 Wire Mesh Disc for Air Filtering – Corrosion-Resistant Ø6.2×6

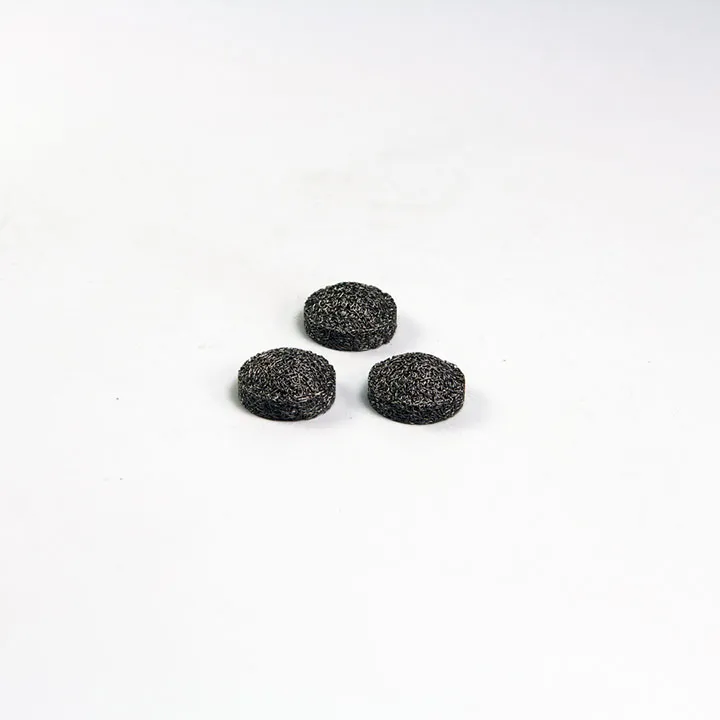

AISI316 WIRE FILTER DISC 6.2X6 DIAMETER 0.13MM Additional image 1

DALON’s AISI316 wire mesh air filter disc, with dimensions Ø6.2 mm x 6 mm and a wire diameter of 0.13 mm, is designed to deliver reliable and consistent filtration performance in compact air systems. Manufactured from high-grade stainless steel (AISI316), this precision-woven wire mesh filter is ideal for demanding environments where corrosion resistance, high airflow, and fine particulate control are critical.

The 0.13 mm wire construction offers a robust yet breathable structure, enabling the disc to act as an effective barrier against dust, insects, oil mists, and other airborne impurities without restricting airflow. This filter type is particularly suited for pneumatic components, pressure regulators, environmental sensors, and air-venting ports in applications that require stable and repeatable performance over time.

Its stainless steel mesh structure allows for high mechanical strength, exceptional chemical resistance, and easy maintenance through backflushing or ultrasonic cleaning. The compact 6.2 mm diameter makes this filter disc ideal for miniaturized equipment or localized airflow control in assemblies.

Key Features

  • Material: AISI316 Stainless Steel

  • Dimensions: Ø6.2 mm × 6 mm

  • Wire Diameter: 0.13 mm

  • Filtration Type: Wire mesh screen – washable and reusable

  • Construction: Precision-woven wire for consistent micron retention

  • Resistance: Corrosion-, temperature-, and pressure-resistant

  • Reusable: Supports backflushing, air drying, or solvent cleaning

Applications

  • Air filtration in pneumatic control valves

  • Sensor and micro-device protection

  • Precision air systems in medical, laboratory, or HVAC units

  • Breather ports in industrial enclosures or battery packs

  • Pre-filtering in aerosol or vaporizing devices

  • Dust screens in control panel vent ports


Why Choose DALON

DALON is an ISO 9001:2015-certified manufacturer of sintered and woven metal filters, providing high-performance filtration solutions to global OEMs. With decades of experience in producing miniature and customized metal filter discs, DALON offers unmatched consistency, technical support, and product traceability. Our AISI316 wire mesh filters are available in standard and bespoke formats, including variations in mesh count, diameter, and thickness.

We also offer OEM customization, such as laser-cut shapes, multi-layer mesh laminations, and integrated frames for secure installation. DALON can support both prototyping and high-volume production needs, with lead times adjusted based on mold requirements:

  • Custom design with tooling: 35–40 days including mold production

  • Existing standard molds: 30 days typical delivery

  • Minimum order quantities vary by model; please contact DALON for details.


FAQ – Frequently Asked Questions

Q1: What filtration level can a 0.13 mm wire mesh provide?
A 0.13 mm wire diameter typically corresponds to a mesh that filters particles above ~120 microns, suitable for coarse air filtration and insect/dust exclusion.

Q2: Is this filter disc suitable for reuse?
Yes. Made from stainless steel, it is highly durable and can be cleaned multiple times with water, compressed air, or ultrasonic cleaning.

Q3: Can it be used in moist or corrosive environments?
Absolutely. AISI316 stainless steel offers superior corrosion resistance and is ideal for harsh environments, including marine, medical, and industrial applications.

Q4: Is this filter compatible with high-pressure air?
Yes. The mesh is strong enough for most low- to medium-pressure pneumatic applications, but for exact pressure limits, testing in system conditions is recommended.

Q5: Can I get this filter in other diameters or thicknesses?
Yes. DALON offers full customization of wire mesh filters, including changes to disc size, mesh type, layering, or integrated housing design.

Q6: What’s the difference between wire mesh filters and sintered filters?
Wire mesh filters are woven and offer coarser filtration with high airflow, ideal for applications like venting or particle screens. Sintered filters are made of fused metal particles, offering finer filtration and deeper contaminant retention.

Additional image 2
AISI316 wire mesh air filter disc Ø6.2×6 mm with 0.13mm weave – reusable, corrosion-resistant, ideal for sensors, valves, and airflow vents.

Applications & Industries

Filter Silencing Applications Filter Silencing Applications

Chemical & Manufacturing

  • CHEMICAL INDUSTRIES
  • SEMICONDUCTOR
  • SCIENTIFIC INSTRUMENT
  • PHARMACEUTICAL
  • POLYMER FILTRATION
  • GAS AND LIQUID FILTRATION
Fluidization Applications Filter Silencing Applications

Common Applications

  • SILENCING
  • SPARGING
  • FLUIDIZATION
  • SENSOR AND VALVE PROTECTION
  • FLOW RESTRICTION
  • HANDLING OF BULK MATERIAL
Filter Applications

Industry Solutions

The versatility of AISI316 WIRE FILTER DISC 6.2X6 DIAMETER 0.13MM makes them ideal for various industrial applications. Key industries that benefit from these wire filters include:

Chemical & Pharmaceutical:
- For precise filtration in chemical processing, pharmaceutical manufacturing, and laboratory applications.
Semiconductor & Electronics:
- In clean room environments and semiconductor manufacturing where high-purity filtration is critical.
Manufacturing & Processing:
- For industrial gas and liquid filtration in manufacturing processes and production lines.
Water & Waste Treatment:
- In water purification systems and wastewater treatment where reliable filtration is essential.
Air & Gas Systems:
- For air filtration, gas distribution, and pneumatic systems requiring precise flow control.
