WIRE FILTER DISC 6.2X2

Premium Quality Wire Filter

DALON DISC FILTER

Product Overview

Product Specifications

Manufacturer DALON
Material STAINLESS STEEL WIRES
Type DISC FILTER
Reference Drawing
Product Code DLP202308138
Wire Diameter
HS Code 84219990
RoHS Compliant
REACH Compliant

Technical Drawings & Dimensions

wire mesh oil filter Technical Drawing

Product Dimensions

I.D.(d)
I.D. (d1)
O.D. (D) 6.2
O.D. (D1)
Length (L) 2
Flange Dia. (fd)
Flange Thickness (fl)
General Tolerance ±0.3mm
Weight(ref)/Gram 0.00
Minimum Order Qty 0
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

Wire Mesh Oil Filter Disc – Durable Stainless 6.2×2 mm Element

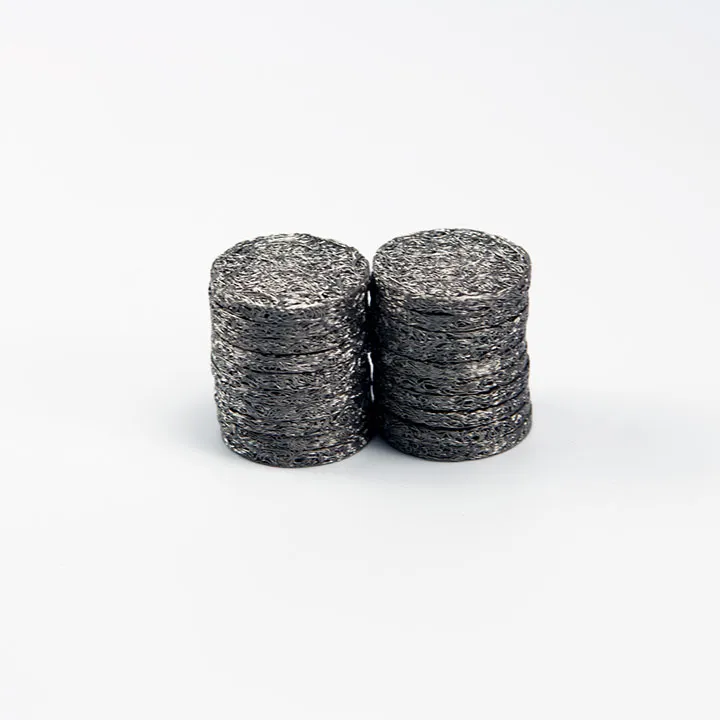

WIRE FILTER DISC 6.2X2 Additional image 1

DALON’s wire mesh oil filter disc, with dimensions 6.2 mm diameter × 2 mm thickness, is a compact, precision-engineered filtration element designed to trap solid contaminants in oil, lubrication, and low-viscosity fluid systems. Crafted from corrosion-resistant stainless steel mesh, it ensures long-lasting filtration performance while minimizing pressure drop and maximizing reusability.

This filter disc is ideal for use in environments where small-scale oil filtration is required, such as within hydraulic valves, dosing pumps, compact gearboxes, lubrication ports, or laboratory-scale oil handling systems. Its fine mesh structure reliably captures particles like metal shavings, dust, and wear debris, protecting sensitive components from abrasion and clogging.

The sintered construction fuses wire mesh layers for enhanced mechanical stability and uniform flow. Unlike regular woven mesh, sintered discs maintain consistent filtration without risk of deformation or shifting under pressure or thermal cycling.

Key Features

  • Material: Stainless steel (typically SS304 or SS316L)

  • Size: 6.2 mm diameter × 2 mm thickness

  • Filtration Type: Fine mesh (customizable upon request)

  • Structure: Rigid, sintered wire mesh with precise pore control

  • Cleaning: Reusable; supports ultrasonic, air jet, or solvent cleaning

  • Durability: Withstands oil, mild chemicals, heat, and vibration

Applications

  • Inline filtration in oil lubrication systems

  • Protective filter in hydraulic or fuel injection systems

  • Debris trap in small engine oil circuits

  • Filtering disc for dosing valves and fluid delivery nozzles

  • Vent and return line oil filtration in lab and medical devices

  • OEM integration in oil mist or gear lubrication modules


Why Choose DALON

With over two decades of experience in sintered filtration technologies, DALON delivers high-performance filter solutions tailored for industrial, automotive, and instrumentation markets. All wire mesh discs are manufactured under ISO 9001:2015, ensuring consistency, quality control, and traceability.

We support full customization including:

  • Alternative mesh grades and micron ratings

  • Varying thicknesses and diameters

  • Multilayer sintered mesh for high-load applications

  • OEM branding and packaging

Standard mold items: typically ship in 30 days
Custom sizes (with tooling): 35–40 days including mold development
MOQ for custom orders: please contact DALON for evaluation and quoting.


FAQ – Frequently Asked Questions

Q1: What type of particles does this wire mesh oil filter trap?
It captures fine solids such as dust, wear debris, or metal particles suspended in lubricating oils or light hydraulic fluids.

Q2: Can this mesh disc be reused?
Yes. It is designed for multiple cleaning cycles with air, solvent, or ultrasonic cleaning methods.

Q3: Is this suitable for high-temperature oil systems?
Yes. Stainless steel construction makes it resistant to elevated temperatures, typical of oil circulation systems.

Q4: What's the benefit of a sintered wire filter versus regular mesh?
Sintered filters provide structural integrity, preventing mesh distortion and extending lifespan, especially in vibrating or pressurized systems.

Q5: Can DALON customize this disc for different oil types or viscosities?
Absolutely. We offer tailored mesh grades, disc dimensions, and even hydrophobic/hydrophilic treatments for specialized media.

Q6: What industries use this type of wire mesh oil filter?
Commonly used in automotive lubrication systems, small engines, lab fluid analyzers, gearboxes, industrial pumps, and OEM hydraulic devices.

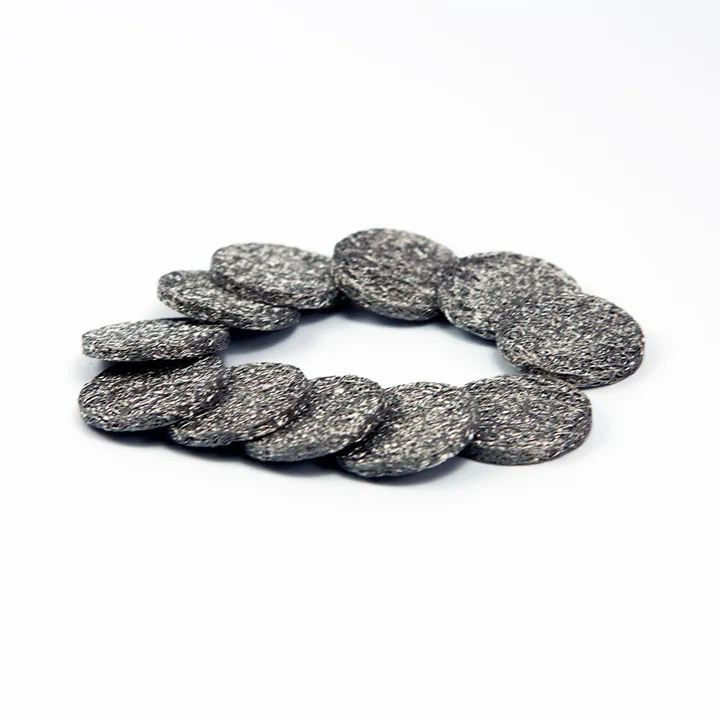

Additional image 2
Wire mesh oil filter disc 6.2×2 mm in stainless steel – reusable, sintered mesh construction for fine oil filtration in hydraulic, engine, and OEM systems.

Applications & Industries

Filter Silencing Applications Filter Silencing Applications

Chemical & Manufacturing

  • CHEMICAL INDUSTRIES
  • SEMICONDUCTOR
  • SCIENTIFIC INSTRUMENT
  • PHARMACEUTICAL
  • POLYMER FILTRATION
  • GAS AND LIQUID FILTRATION
Fluidization Applications Filter Silencing Applications

Common Applications

  • SILENCING
  • SPARGING
  • FLUIDIZATION
  • SENSOR AND VALVE PROTECTION
  • FLOW RESTRICTION
  • HANDLING OF BULK MATERIAL
Filter Applications

Industry Solutions

The versatility of WIRE FILTER DISC 6.2X2 makes them ideal for various industrial applications. Key industries that benefit from these wire filters include:

Chemical & Pharmaceutical:
- For precise filtration in chemical processing, pharmaceutical manufacturing, and laboratory applications.
Semiconductor & Electronics:
- In clean room environments and semiconductor manufacturing where high-purity filtration is critical.
Manufacturing & Processing:
- For industrial gas and liquid filtration in manufacturing processes and production lines.
Water & Waste Treatment:
- In water purification systems and wastewater treatment where reliable filtration is essential.
Air & Gas Systems:
- For air filtration, gas distribution, and pneumatic systems requiring precise flow control.
