BRONZE FILTER DISC 22.2X1.5 35MICRON

Premium Quality Sintered Bronze Filter

DALON DISC FILTER

Product Overview

Product Specifications

Manufacturer DALON
Material POROUS BRONZE
Type DISC FILTER
Reference Drawing
Product Code DLP20140010
Pore Pitch 35MICRON
HS Code 84219990
RoHS Compliant
REACH Compliant

Technical Drawings & Dimensions

disk filter Technical Drawing

Product Dimensions

I.D.(d)
I.D. (d1)
O.D. (D) 22.2
O.D. (D1)
Length (L) 1.5
Flange Dia. (fd)
Flange Thickness (fl)
General Tolerance ±0.3mm
Weight(ref)/Gram 3.20
Minimum Order Qty 0
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

Thin-Profile Bronze Disk Filter for Hydraulic Systems

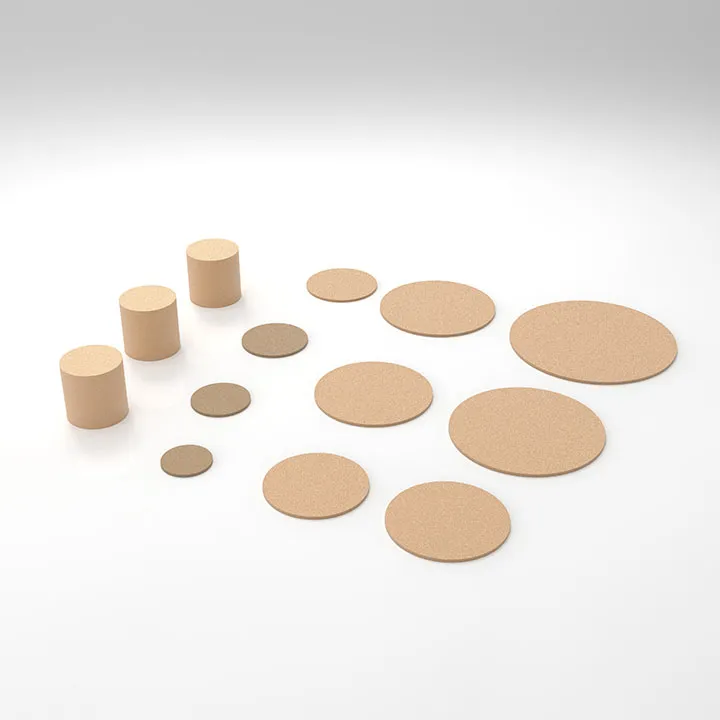

BRONZE FILTER DISC 22.2X1.5 35MICRON Additional image 1

Disk Filter – Bronze Filter Disc 22.2×1.5 35 Micron

DALON’s BRONZE FILTER DISC 22.2×1.5 35 MICRON is a high-performance sintered bronze filter element designed to provide effective filtration in both liquid and gas systems. With a 35-micron pore size, it offers excellent particle retention and ensures clean air and fluid flow for industrial and OEM applications. Made from high-grade sintered bronze, this filter disc is capable of handling moderate to high-flow systems while maintaining low pressure drop.

Ideal for chemical processing, pneumatic systems, and hydraulic filtration, this filter disc offers long-term performance and can be cleaned for reuse, providing a cost-effective filtration solution.


Key Specifications

  • Outer Diameter (OD): 22.2 mm

  • Thickness: 1.5 mm

  • Filtration Rating: 35 micron

  • Material: Sintered bronze

  • Operating Pressure: Up to 10 bar (145 psi)

  • Temperature Range: -40°C to +200°C

  • Flow Type: Liquid & gas filtration

  • Cleaning Method: Backflushing or ultrasonic cleaning


Key Features

  • 35 Micron Filtration: Efficiently captures medium-sized particles and contaminants

  • Sintered Bronze Construction: Offers corrosion resistance and high mechanical strength

  • Reusability: Can be cleaned and reused, reducing maintenance costs

  • Low Pressure Drop: Designed for high flow rates without restricting system performance

  • Heat and Chemical Resistance: Suitable for a wide range of industrial applications


Applications

  • Pneumatic and Hydraulic Systems: Protects valves, cylinders, and actuators from fine contaminants

  • Chemical Processing: Filters particles from liquids in chemical reactors, dosing units, and filtration tanks

  • Fuel and Oil Filtration: Removes contaminants from fuel or lubrication systems to prevent wear and damage

  • Compressed Air Systems: Ensures clean, particle-free air for sensitive equipment

  • Food and Beverage Filtration: Suitable for food-grade liquid filtration, ensuring quality and safety

  • Water Treatment Systems: Removes suspended solids from water filtration processes


Why Choose DALON

With over 20 years of expertise in sintered metal filtration solutions, DALON offers reliable and cost-effective high-precision filter discs designed for OEMs and industrial applications. Our products are manufactured under ISO 9001:2015 certified quality control standards, ensuring consistent performance, reliability, and sustainability.

We offer:

  • Custom sizes and micron ratings

  • Multiple materials for different environments (stainless steel, bronze, brass)

  • OEM customization including geometry, thread types, and filtration specifications

  • Fast lead times and bulk production capabilities


FAQ – Frequently Asked Questions

Q1: What does 35-micron filtration mean?
It means the filter can capture particles that are 35 microns in size and larger, making it ideal for medium-sized contaminants.

Q2: How do I clean the bronze filter disc?
You can clean the disc using backflushing or ultrasonic cleaning, depending on the level of contamination.

Q3: Can this filter be used for both gas and liquid filtration?
Yes. This filter disc is designed for use in both gas and liquid filtration systems, providing versatility across applications.

Q4: Can this disc withstand high temperatures?
Yes. The sintered bronze material is capable of withstanding temperatures up to 200°C.

Q5: Is this filter suitable for high-pressure systems?
Yes, it can handle up to 10 bar (145 psi), making it suitable for medium-pressure industrial systems.

Q6: Can DALON customize the filter to specific sizes?
Absolutely. DALON offers full customization for size, micron rating, and other specific requirements to fit your system needs.

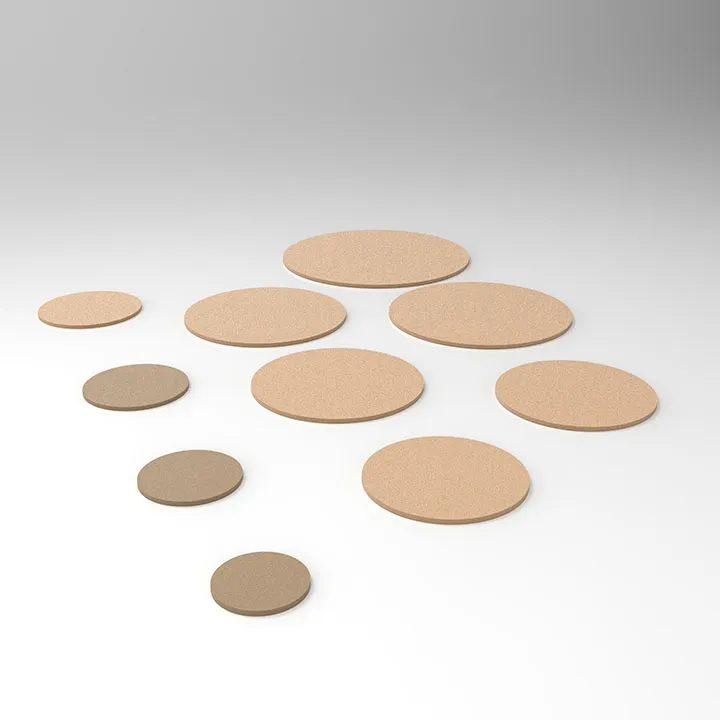

Additional image 2
precision bronze disk filter combines a large 22.2mm diameter with an ultra-thin 1.5mm profile, delivering 35 micron absolute filtration for space-constrained applications.

Applications & Industries

Filter Silencing Applications Filter Silencing Applications

Chemical & Manufacturing

  • CHEMICAL INDUSTRIES
  • SEMICONDUCTOR
  • SCIENTIFIC INSTRUMENT
  • PHARMACEUTICAL
  • POLYMER FILTRATION
  • GAS AND LIQUID FILTRATION
Fluidization Applications Filter Silencing Applications

Common Applications

  • SILENCING
  • SPARGING
  • FLUIDIZATION
  • SENSOR AND VALVE PROTECTION
  • FLOW RESTRICTION
  • HANDLING OF BULK MATERIAL
Filter Applications

Industry Solutions

The versatility of BRONZE FILTER DISC 22.2X1.5 35MICRON makes them ideal for various industrial applications. Key industries that benefit from these sintered bronze filters include:

Chemical Processing:
- Filtration of process chemicals, catalysts, and reaction media in chemical manufacturing.
Semiconductor:
- Ultra-pure filtration for process gases and chemicals in chip manufacturing.
Pharmaceutical:
- Critical filtration in drug manufacturing and sterile processing applications.
Industrial Machinery:
- Hydraulic and lubrication system filtration for optimal equipment performance.
Gas Processing:
- Filtration and flow control in gas distribution and processing systems.
