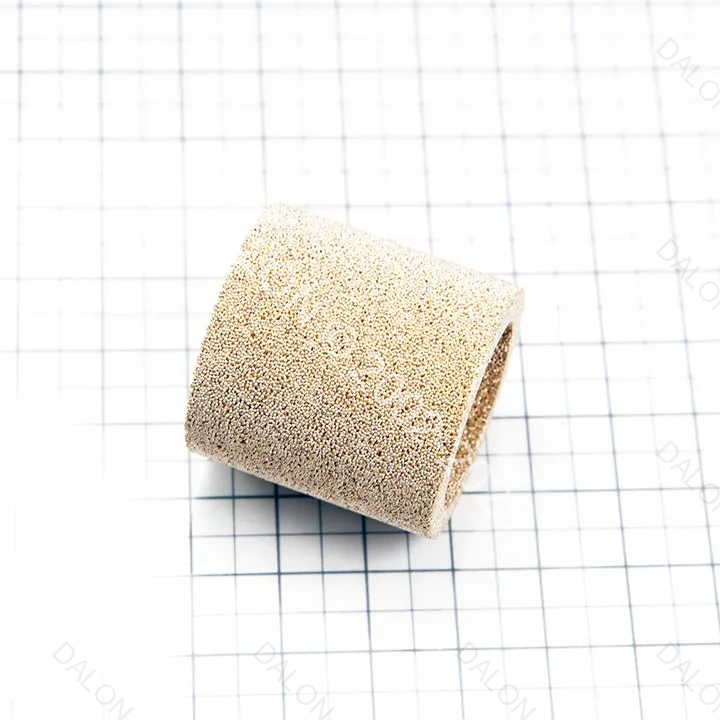

Premium Quality Sintered Bronze Filter

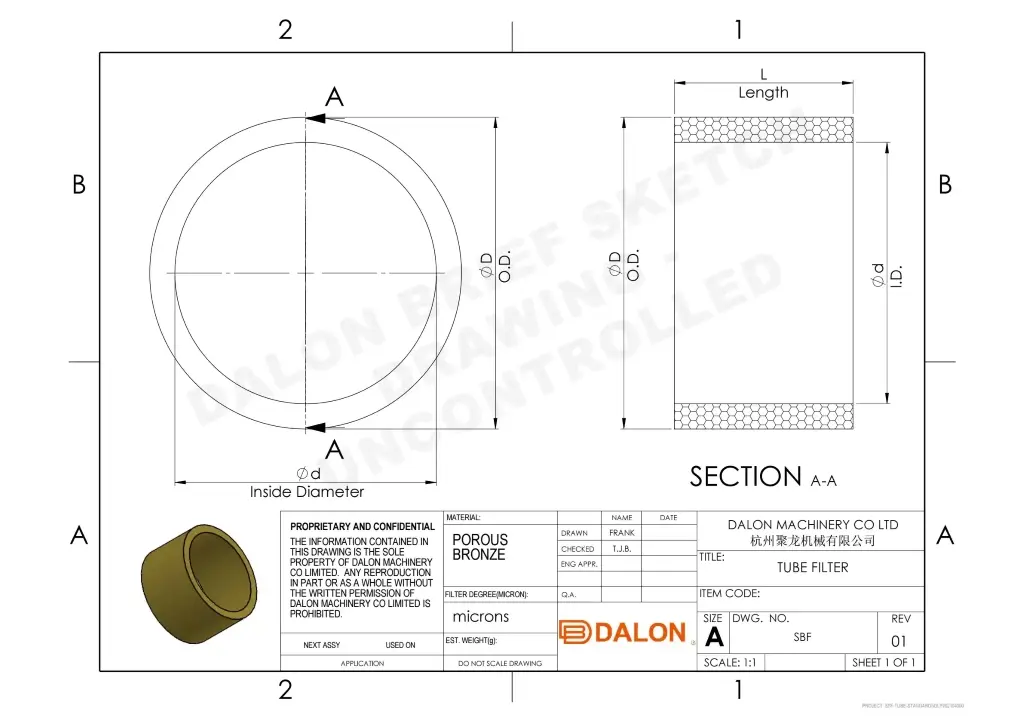

| I.D.(d) | 24 |
| I.D. (d1) | |
| O.D. (D) | 30 |
| O.D. (D1) | |
| Length (L) | 40 |
| Flange Dia. (fd) | |
| Flange Thickness (fl) | |
| General Tolerance | ±0.3mm |
| Weight(ref)/Gram | 56.00 |
| Minimum Order Qty | 0 |
Engineered for critical filtration applications, our BRONZE FILTER 24×30×40 120MICRON delivers unmatched particulate removal in hydraulic systems, water treatment, and industrial processes. The sintered bronze construction provides superior durability versus disposable filters, with 50% longer lifespan and 40% lower pressure drop.
✔ Precision Filtration: 120-micron rating removes contaminants while maintaining optimal flow rates
✔ Extended Service Life: Withstands 300+ cleaning cycles (ultrasonic/backflush compatible)
✔ Chemical Resistance: Stable in pH 3-11 environments and temperatures up to 250°C
✔ Energy Efficient: 0.8-1.2 bar pressure drop vs. 2.5+ bar for disposable alternatives
✔ Sustainable Solution: Reusable design reduces waste by 75% versus single-use filters
| Parameter | Specification |
|---|---|
| Material | Sintered Bronze (CuSn10) |
| Dimensions | 24×30×40 mm |
| Pore Size | 120µm (50-200µm available) |
| Max Pressure | 18 bar (261 psi) |
| Flow Rate | 12 L/min·cm² @ 20°C |
| Cleaning Method | Ultrasonic/Backflush |
Hydraulic Systems: Remove metal shavings and particulate from oil
Water Treatment: Filter sediment and rust particles
Chemical Processing: Handle corrosive fluids and solvents
Industrial Machinery: Protect pumps and valves from contamination
Proven Durability
6.8 g/cm³ sintered density resists mechanical stress
Withstands 500+ pressure cycles without deformation
Cost Efficiency
60% lower TCO compared to disposable filters
2-year minimum lifespan with proper maintenance
Custom Solutions

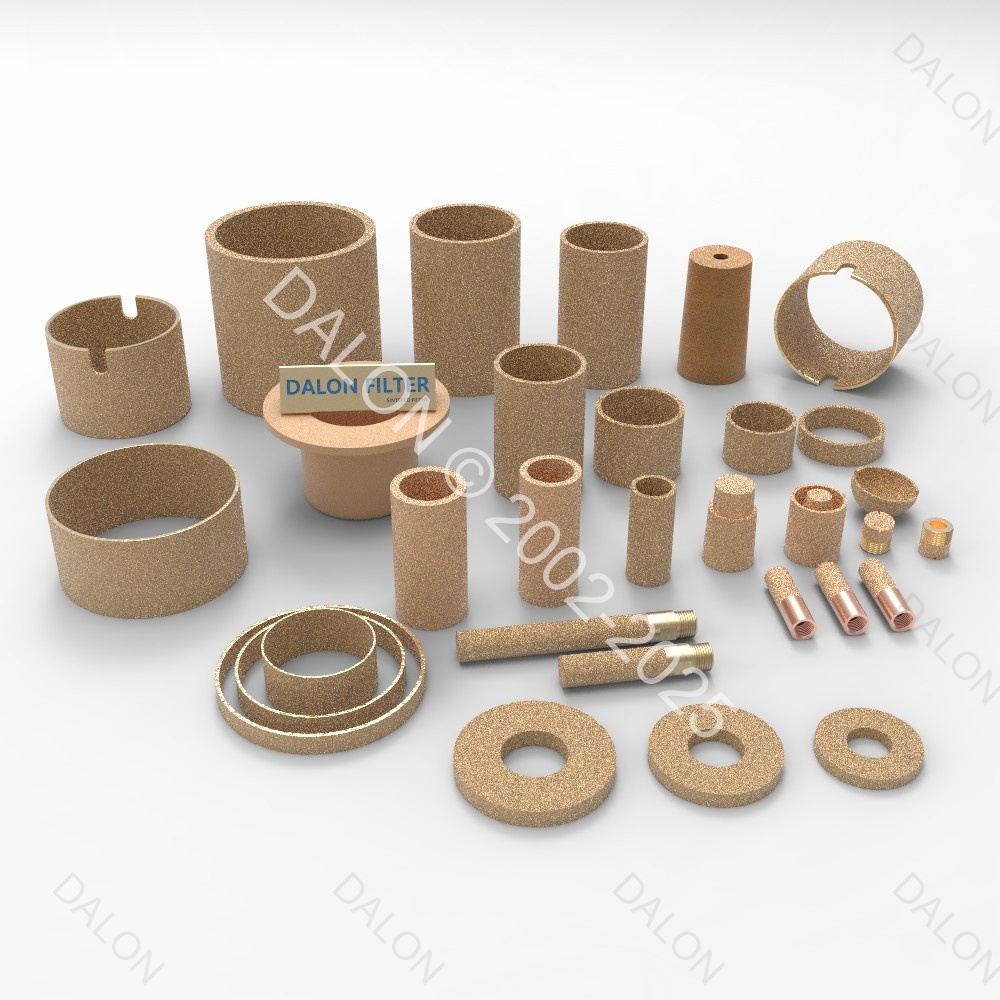

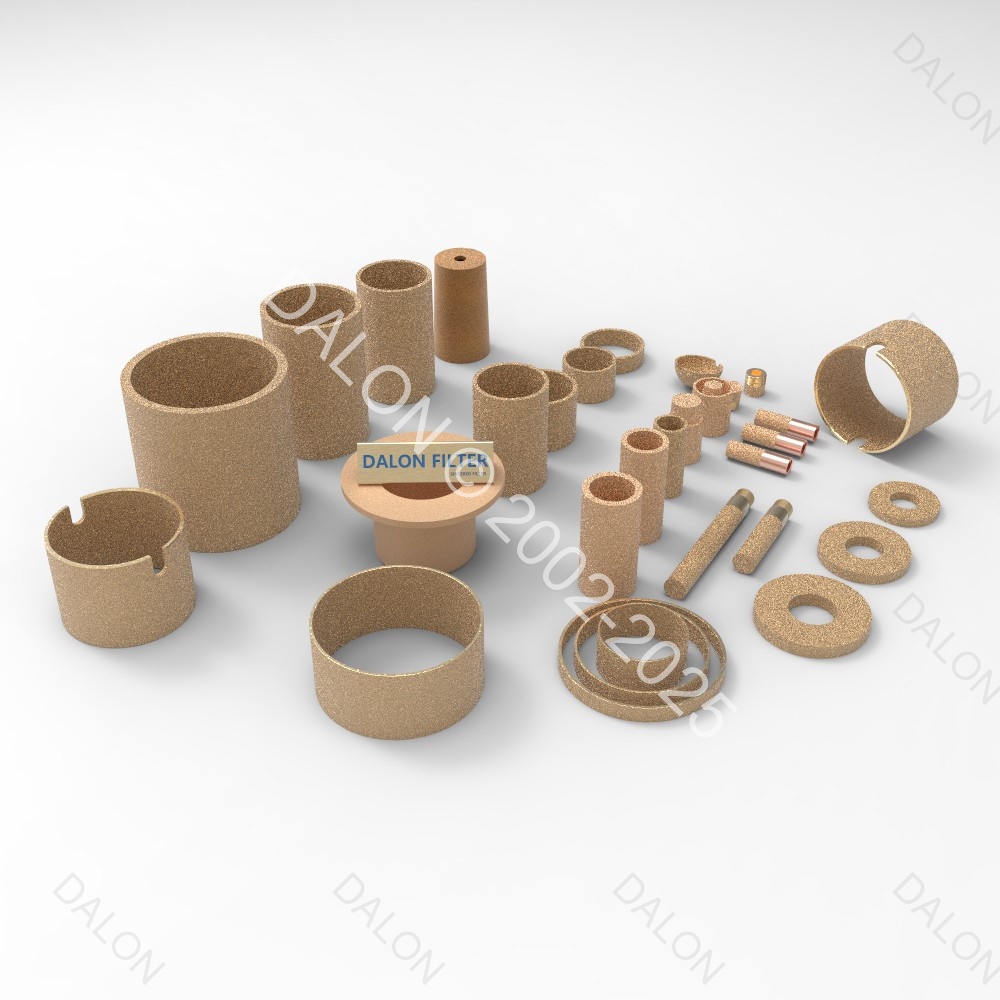

Available in sizes from 10-200mm diameters
Optional NSF/FDA-compliant materials for food/pharma
Q: How does sintering improve filter performance?
A: The sintering process creates uniform micro-pores (120µm) that trap contaminants while maintaining high flow rates.
Q: Can this filter handle high-viscosity fluids?
A: Yes - recommended for fluids up to 800 cP. For higher viscosities, pair with our pre-filter screen.
Q: What's the cleaning frequency?
A: Every 200-300 operating hours, depending on contaminant load.
Q: Do you provide performance test data?
A: Yes - all filters ship with factory test reports for flow rate and burst pressure.
The versatility of BRONZE FILTER 24X30X40 120MICRON makes them ideal for various industrial applications. Key industries that benefit from these sintered bronze filters include:
Our professional team is ready to assist with your inquiry for this Sintered Bronze Filter – Precise & Porous for Air or Oil.
