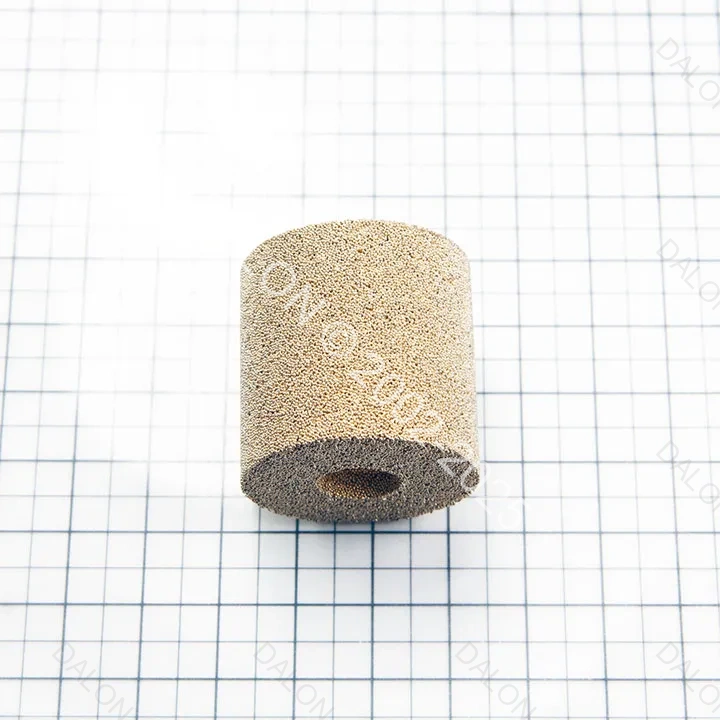

BRONZE FILTER CAP 21.5X25.5X38.8 10MICRON

Sintered Copper Filter Cap – Bronze 21.5×25.5×38.8 mm, 10 Micron Precision

The BRONZE FILTER CAP 21.5×25.5×38.8 10MICRON is a compact yet high-performance sintered copper filter designed for demanding air, gas, and light fluid filtration applications. Manufactured using powder metallurgy, the sintered bronze structure ensures high mechanical strength, corrosion resistance, and stable flow performance under various operating conditions.

With a filtration rating of 10 microns, this cap-style filter is ideal for capturing fine particles while maintaining airflow, making it perfect for instrumentation, pneumatic systems, and gas processing lines.

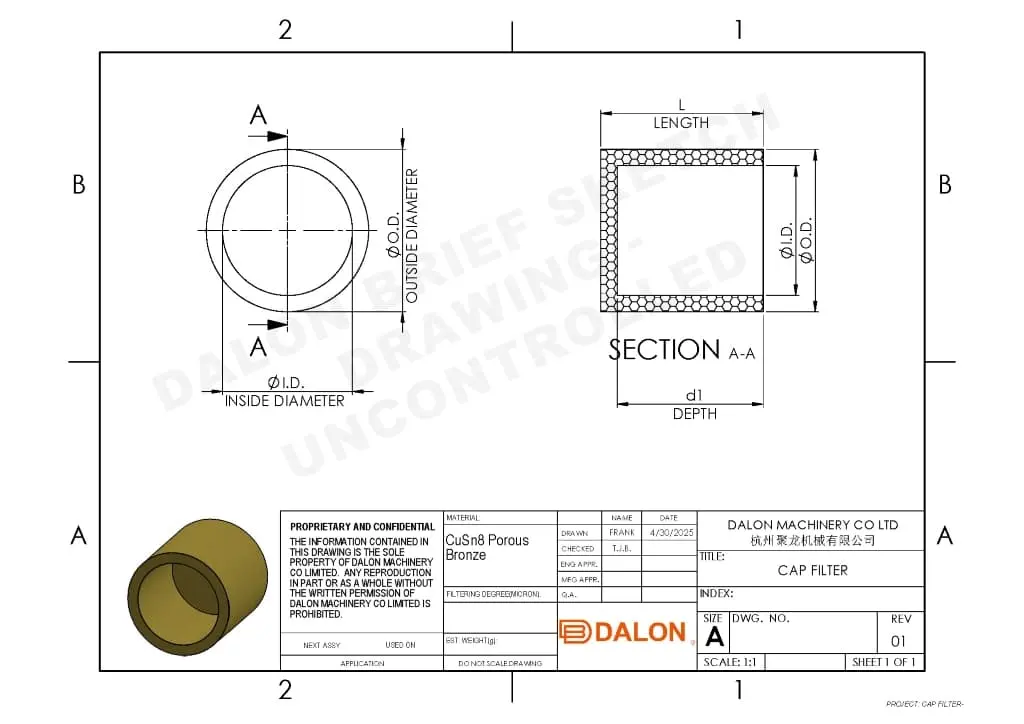

Key Specifications

• Outer Diameter: 25.5 mm

• Body Diameter: 21.5 mm

• Length: 38.8 mm

• Material: Sintered Bronze (Copper-based)

• Filtration Rating: 10 micron

• Operating Pressure: Up to 15 bar

• Temperature Resistance: -40°C to +220°C

• Cleaning Method: Solvent wash, ultrasonic, or backflush

• Design Style: Closed-end cap, easy insertion into housings

Key Features

• 10 Micron Filtration Precision
  Captures fine particles and dust while allowing efficient air or gas flow—suitable for sensitive system protection.

• Robust Sintered Bronze Construction
  Provides excellent resistance to heat, corrosion, and mechanical vibration—ideal for continuous industrial use.

• Cap-Type Design
  Easy to mount, replace, or retrofit into standard pneumatic or gas filtration setups.

• Reusable and Long-Life
  Can be cleaned and reused many times, reducing cost and waste over disposable filters.

• Versatile Performance
  Compatible with compressed air, nitrogen, low-viscosity liquids, and light oil mist filtration environments.

Typical Applications

• Gas Sampling Systems – Filters out micro-contaminants before measurement.

• Pneumatic Valves & Actuators – Ensures clean operational airflow.

• Fuel Cells & Hydrogen Systems – Protects against contamination at low flow rates.

• Laboratory & Testing Equipment – Maintains accuracy and reliability in instrumentation setups.

• Vacuum & Compressor Ports – Prevents backflow of particles into sensitive devices.

Why Choose DALON Filters?

DALON has been a global manufacturer of sintered copper and bronze filter elements for over two decades. With ISO-certified processes and engineering know-how, we deliver solutions trusted across sectors like automation, energy, and industrial processing.

Our sintered filters offer:

• Stable micron accuracy

• OEM customization services

• Global logistics support

• Technical expertise for integration

Frequently Asked Questions (FAQ)

Q1: What is this filter mainly used for?
It is commonly used for gas and air filtration in pneumatic, instrumentation, and sensor systems where fine filtration is essential.

Q2: Can it handle oil mist or moisture?
Yes, it is effective for light oil mist or moisture environments, though cleaning frequency may increase.

Q3: How should I clean this filter?
You can clean it using backflushing, ultrasonic baths, or solvent rinsing depending on contamination type.

Q4: Can I request a different micron size or dimension?
Absolutely. DALON supports full customization based on your application needs—contact us with specifications.
