Premium Quality Plastic Filter
| I.D.(d) | |
| I.D. (d1) | |
| O.D. (D) | 50 |
| O.D. (D1) | 60 |
| Length (L) | 60 |
| Flange Dia. (fd) | |
| Flange Thickness (fl) | |
| General Tolerance | ±0.3mm |
| Weight(ref)/Gram | 0.00 |
| Minimum Order Qty |
Reliable Hydraulic Air Filter Breather – Sintered Plastic Filter 50×60×60, 30 Micron
DALON’s sintered plastic filter 50×60×60 (30 micron) is purpose-built for use as a hydraulic air filter breather, providing exceptional performance in fluid reservoir ventilation and contamination control systems. This product is engineered using high-density polyethylene (HDPE) particles, sintered into a rigid, porous structure that allows precise air filtration while maintaining robust mechanical stability.
When used as a breather filter in hydraulic power units, this component efficiently traps airborne particles before they enter the fluid reservoir. By preventing the ingress of dust, dirt, and moisture, it protects hydraulic oil integrity and extends the life of pumps, valves, and actuators.
Typical Applications Include:
Hydraulic tank breather caps
Gearbox venting
Transmission systems
Pneumatic reservoirs
Environmental enclosures and housings
Precise Filtration: 30-micron grade ensures reliable filtration for airborne contaminants.
Dimensions: 50 mm ID × 60 mm OD × 60 mm Length
High Porosity & Low Pressure Drop: Delivers high air permeability for pressure equalization with minimal resistance.
Chemical Resistance: Excellent durability in contact with mineral oils, synthetic fluids, and hydraulic lubricants.
Corrosion-Free & Lightweight: Constructed from high-purity HDPE for use in harsh industrial environments.
Washable & Reusable: Maintains filtration performance after cleaning, reducing replacement frequency.

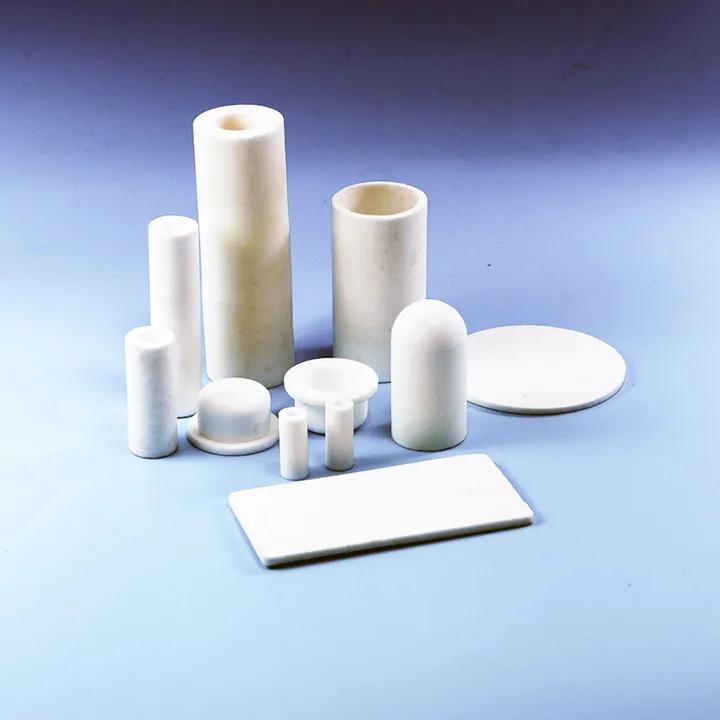

DALON offers this sintered plastic filter in various sizes, pore ratings (10 to 100 microns), and shapes (disc, cap, tube, cone). OEM and ODM services available upon request.
Q1: What is a hydraulic air breather filter used for?
A hydraulic air breather filter allows air exchange in hydraulic tanks while preventing contaminants from entering the system, ensuring oil cleanliness.
Q2: Can the sintered plastic filter be cleaned and reused?
Yes, DALON’s sintered HDPE filters can be cleaned with compressed air or solvent washing, making them reusable for multiple cycles.
Q3: What materials are used for these breather filters?
This product is made from sintered high-density polyethylene (HDPE), which offers excellent chemical resistance and thermal stability.
Q4: How does the 30-micron rating affect filtration?
A 30-micron rating ensures fine filtration of airborne dust and moisture, ideal for protecting sensitive hydraulic fluids.
Q5: Is this filter compatible with oil-based systems?
Yes, the HDPE material is compatible with most hydraulic oils and gear lubricants used in industrial systems.
The versatility of SINTERED PLASTIC FILTER 50X60X60 30MICRON makes them ideal for various industrial applications. Key industries that benefit from these plastic filters include:
Our professional team is ready to assist with your inquiry for this Hydraulic Air Filter Breather – Sintered Plastic Filter 50×60×60 30 Micron.
