SINTERED PLASTIC FILTER CONE 3.8X29.5 20MICRON

Premium Quality Plastic Filter

DALON CONE FILTER

Product Overview

Product Specifications

Manufacturer DALON
Material POROUS PLASTIC
Type CONE FILTER
Reference Drawing
Product Code SPEF38295M20
Pore Pitch 20MICRON
HS Code 84219990
RoHS Compliant
REACH Compliant

Technical Drawings & Dimensions

hydrophilic plastic filter Technical Drawing

Product Dimensions

I.D.(d)
I.D. (d1)
O.D. (D) 3.8
O.D. (D1)
Length (L) 29.5
Flange Dia. (fd)
Flange Thickness (fl)
General Tolerance ±0.3mm
Weight(ref)/Gram 0.00
Minimum Order Qty 0
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

Hydrophilic Plastic Filter – For Liquid Vents & Flow Channels

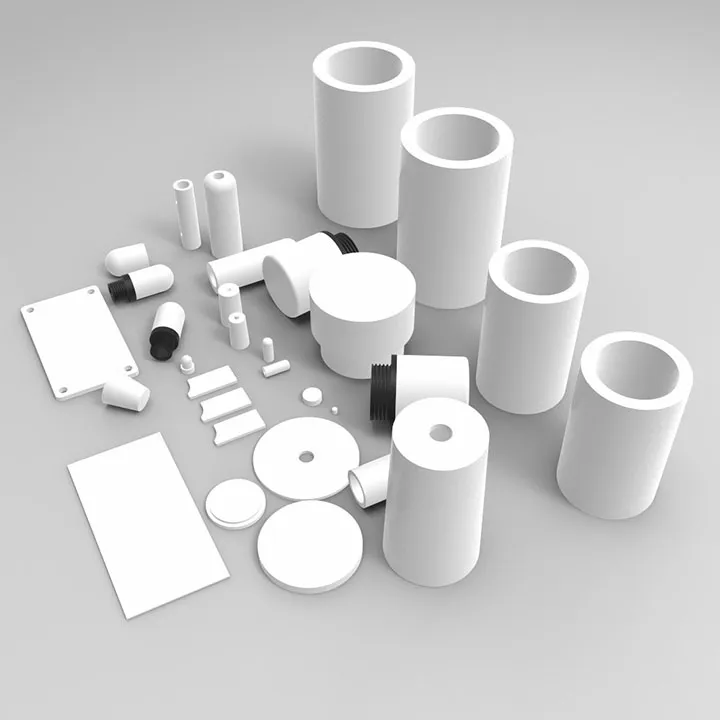

SINTERED PLASTIC FILTER CONE 3.8X29.5 20MICRON Additional image 1

Hydrophilic Plastic Filter Cone – 3.8×29.5 mm, 20µm for Passive Liquid Transfer

DALON’s hydrophilic-treated sintered PE cone filter is purpose-built for capillary-driven liquid movement, sample filtration, and moisture-regulated applications. With 20µm nominal pore size and a slim conical shape (3.8 mm diameter × 29.5 mm length), it enables smooth, pressure-free aqueous flow—ideal for use in diagnostic devices, lab cartridges, and fluid sensors.


Key Features

  • Filtration rating: 20 microns (nominal)

  • Dimensions: 3.8 mm base diameter × 29.5 mm cone length

  • Material: Sintered polyethylene (PE), hydrophilic surface treated

  • Promotes capillary action and uniform saturation

  • Allows liquid to wick through without external pressure

  • Non-toxic, moisture-activated, and reusable


Typical Applications

  • Pre-filtration and wicking in diagnostic test strips

  • Capillary flow regulation in microfluidic systems

  • Vent filters with water vapor activation

  • Sample transfer in point-of-care analyzers

  • Sensor hydration or chamber humidification


Why Choose DALON?

DALON offers custom-engineered sintered plastic filters for passive liquid systems. Under ISO 9001:2015-certified processes, we provide:

  • Precise pore control and stable hydrophilic surface energy

  • OEM customization: cone angle, wall thickness, pore grade, bonding

  • Hydrophilic or hydrophobic variants for specific fluid behavior

  • Biocompatible, food-grade, or EO/gamma-sterilizable versions on request


FAQ – Frequently Asked Questions

Q1: What makes this cone hydrophilic?
Its surface is treated to attract and retain water, enabling smooth, self-starting fluid flow through capillary force.

Q2: What liquids can this filter handle?
It is suitable for aqueous-based liquids including diagnostic reagents, lab fluids, and water-based samples.

Q3: Can it be sterilized?
Yes. It supports ethylene oxide (EO) or gamma irradiation sterilization methods. Autoclaving is not recommended for PE.

Q4: Is it reusable?
Yes. It can be rinsed with water or cleaned using ultrasonic baths depending on contamination.

Q5: Can it be made in different sizes or pore ratings?
Absolutely. DALON supports full OEM customization of shape, pore size, cone geometry, and surface properties.

Q6: Which industries benefit from this filter?
Used in medical diagnostics, lab sample handling, fluid sensors, environmental testing, and point-of-care platforms.

Additional image 2
Enable clean, capillary-fed flow with this hydrophilic cone filter – compact, 20µm sintered PE for labs, sensors, and smart devices.

Applications & Industries

Filter Silencing Applications Filter Silencing Applications

Chemical & Manufacturing

  • CHEMICAL INDUSTRIES
  • SEMICONDUCTOR
  • SCIENTIFIC INSTRUMENT
  • PHARMACEUTICAL
  • POLYMER FILTRATION
  • GAS AND LIQUID FILTRATION
Fluidization Applications Filter Silencing Applications

Common Applications

  • SILENCING
  • SPARGING
  • FLUIDIZATION
  • SENSOR AND VALVE PROTECTION
  • FLOW RESTRICTION
  • HANDLING OF BULK MATERIAL
Filter Applications

Industry Solutions

The versatility of SINTERED PLASTIC FILTER CONE 3.8X29.5 20MICRON makes them ideal for various industrial applications. Key industries that benefit from these plastic filters include:

Chemical & Pharmaceutical:
- For precise filtration in chemical processing, pharmaceutical manufacturing, and laboratory applications.
Semiconductor & Electronics:
- In clean room environments and semiconductor manufacturing where high-purity filtration is critical.
Manufacturing & Processing:
- For industrial gas and liquid filtration in manufacturing processes and production lines.
Water & Waste Treatment:
- In water purification systems and wastewater treatment where reliable filtration is essential.
Air & Gas Systems:
- For air filtration, gas distribution, and pneumatic systems requiring precise flow control.
