PLASTIC FILTER CARTRIDGE PG-11 80MICRON

Premium Quality Plastic Filter

DALON FILTER CARTRIDGE

Product Overview

Product Specifications

Manufacturer DALON
Material POROUS PLASTIC
Type FILTER CARTRIDGE
Reference Drawing
Product Code DLP202207281
Pore Pitch 80MICRON
HS Code 84219990
RoHS Compliant
REACH Compliant

Technical Drawings & Dimensions

micron sensor filter Technical Drawing

Product Dimensions

I.D.(d)
I.D. (d1)
O.D. (D)
O.D. (D1)
Length (L)
Flange Dia. (fd)
Flange Thickness (fl)
General Tolerance ±0.3mm
Weight(ref)/Gram 0.00
Minimum Order Qty 0
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

Protect Sensors with 80µm Micron Filter – Easy PG-11 Fit

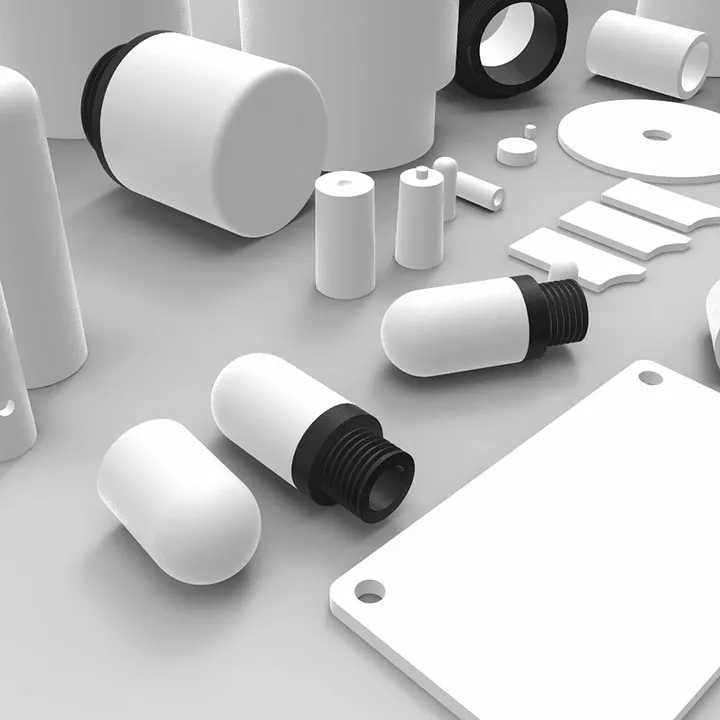

PLASTIC FILTER CARTRIDGE PG-11 80MICRON Additional image 1

Micron Sensor Filter – 80µm, Plastic Cartridge PG-11

DALON’s PG-11 plastic micron sensor filter is a robust, 80µm sintered filter cartridge engineered to protect sensitive electronic and pneumatic sensors from dust, particles, and condensation in air or gas lines. Made from high-performance sintered polyethylene (PE), this threaded cartridge ensures low resistance airflow and reliable filtration in automation, control, and monitoring systems.

With a standard PG-11 threaded body, the filter is easily mounted into electrical housings, sensor ports, and cable glands, providing breathable yet filtered airflow to pressure sensors, gas detectors, and control modules.


Key Features

  • Filtration rating: 80 microns (nominal)

  • Thread type: PG-11 (standard plastic thread for sensor housings)

  • Material: Sintered polyethylene (PE)

  • Durable, lightweight, and corrosion-resistant

  • Allows air exchange while blocking particles and mist

  • Reusable and easy to install


Applications

  • Vent filters for pressure and gas sensors

  • Dust protection for instrumentation housings

  • Breather filter in sealed electronic enclosures

  • Inline filter for automation and sensor lines

  • Moisture and particle barrier for field devices and monitoring units


Why Choose DALON

As a global OEM supplier, DALON manufactures sintered plastic filter cartridges under ISO 9001:2015-certified systems. Our PG-11 sensor filters are widely used across industrial automation, environmental monitoring, and control electronics. We offer customization options in pore size, color, thread size, and material grade for integration into specific sensor housings or enclosures.


FAQ – Frequently Asked Questions

Q1: What does an 80µm sensor filter block?
It removes coarse particles, dust, spray mist, and debris from entering sensor or housing internals, preserving function and lifespan.

Q2: Is this filter breathable for pressure sensors?
Yes. It allows unrestricted airflow for pressure equalization while maintaining particle protection.

Q3: Can this filter be cleaned and reused?
Yes. It can be rinsed with water, cleaned with compressed air, or lightly flushed with solvents.

Q4: Is PG-11 a universal thread type?
Yes. PG-11 is a common plastic thread size for sensor glands, enclosures, and cable fittings in industrial electronics.

Q5: Can I customize this sensor filter?
Absolutely. DALON offers custom pore sizes, diameters, lengths, and thread variants to fit your equipment precisely.

Q6: What industries use this filter type?
Used in industrial automation, instrumentation, gas detection, HVAC controls, and electronic pressure modules.

Additional image 2
80µm plastic micron filter with PG-11 fitting for protecting sensors, vents, and electronics from dust and splashes.

Applications & Industries

Filter Silencing Applications Filter Silencing Applications

Chemical & Manufacturing

  • CHEMICAL INDUSTRIES
  • SEMICONDUCTOR
  • SCIENTIFIC INSTRUMENT
  • PHARMACEUTICAL
  • POLYMER FILTRATION
  • GAS AND LIQUID FILTRATION
Fluidization Applications Filter Silencing Applications

Common Applications

  • SILENCING
  • SPARGING
  • FLUIDIZATION
  • SENSOR AND VALVE PROTECTION
  • FLOW RESTRICTION
  • HANDLING OF BULK MATERIAL
Filter Applications

Industry Solutions

The versatility of PLASTIC FILTER CARTRIDGE PG-11 80MICRON makes them ideal for various industrial applications. Key industries that benefit from these plastic filters include:

Chemical & Pharmaceutical:
- For precise filtration in chemical processing, pharmaceutical manufacturing, and laboratory applications.
Semiconductor & Electronics:
- In clean room environments and semiconductor manufacturing where high-purity filtration is critical.
Manufacturing & Processing:
- For industrial gas and liquid filtration in manufacturing processes and production lines.
Water & Waste Treatment:
- In water purification systems and wastewater treatment where reliable filtration is essential.
Air & Gas Systems:
- For air filtration, gas distribution, and pneumatic systems requiring precise flow control.
