Premium Quality Sintered Steel Filter

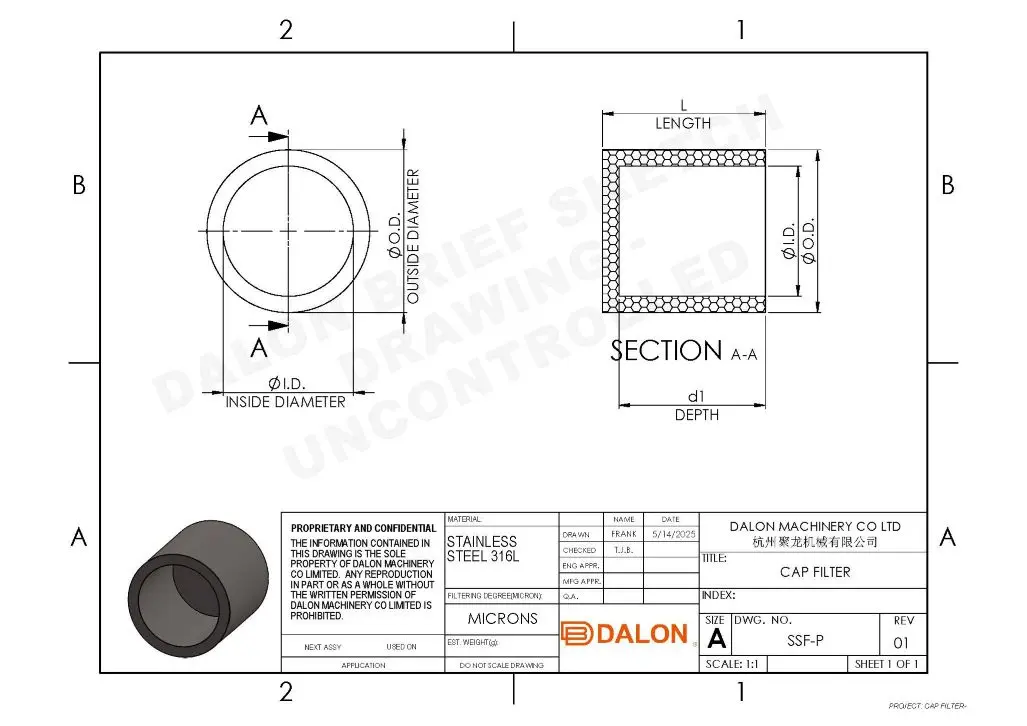

| I.D.(d) | 11 |
| I.D. (d1) | |
| O.D. (D) | 16 |
| O.D. (D1) | |
| Length (L) | 25 |
| Flange Dia. (fd) | |
| Flange Thickness (fl) | |
| General Tolerance | ±0.3mm |
| Weight(ref)/Gram | 0.00 |
| Minimum Order Qty | 0 |
This 30 micron 316L sintered steel filter cap (11x16x25mm) provides exceptional filtration performance for demanding industrial applications. Manufactured from premium 316L stainless steel powder using advanced sintering technology, it delivers reliable, long-lasting filtration with excellent chemical resistance.
30 micron nominal filtration rating - Effective for fine particle removal
316L stainless steel construction - Superior corrosion resistance
Compact 11x16x25mm dimensions - Space-saving design
High mechanical strength - Withstands pressure up to 150 PSI
Reusable design - Cleanable via backflushing or ultrasonic methods
Consistent pore structure - Uniform filtration performance
✔ Pharmaceutical processing
✔ Chemical filtration
✔ Food and beverage production
✔ Water treatment systems
✔ Hydraulic and lubrication systems
| Parameter | Specification |
|---|---|
| Material | 316L sintered stainless steel |
| Pore Size | 30 micron nominal |
| Dimensions | 11x16x25mm |
| Max Temperature | 400°C (752°F) |
| Max Pressure | 150 PSI (10.3 bar) |
| Surface Finish | Standard sintered (electropolished available) |
✅ Premium Material Quality - Made from certified 316L stainless steel powder
✅ Precision Manufacturing - Consistent 30 micron pore structure
✅ Chemical Resistance - Excellent performance in acidic/alkaline environments
✅ Custom Solutions - Available in various sizes and configurations
✅ Quality Assurance - 100% inspected before shipment
Q: What is the filtration efficiency at 30 microns?
A: Our testing shows ≥90% particle capture at 30 microns (nominal rating).
Q: Can this filter handle high-temperature applications?
A: Yes, it maintains structural integrity up to 400°C (752°F).
Q: Is this suitable for sterile filtration?
A: While not sterile, it's excellent for pre-filtration in sterile processes.
Q: What cleaning methods are recommended?
A: We recommend backflushing with compatible solvents or ultrasonic cleaning.
Q: Are material certifications available?
A: Yes, we provide material certificates and can supply FDA compliance documentation for food-grade applications.
Q: What is the expected service life?
A: With proper maintenance, typically 50+ cleaning cycles before replacement is needed.
Q: Do you offer different connection types?
A: Yes, we can provide various connection options including threaded and flanged designs.
Q: Can I get this filter in other micron ratings?
A: Absolutely, we offer this same design in pore sizes from 5 to 100 microns.
The versatility of STEEL FILTER CAP 11X16X25 30MICRON makes them ideal for various industrial applications. Key industries that benefit from these steel filters include:
Our professional team is ready to assist with your inquiry for this 30 Micron 316L Sintered Steel Filter Cap 11x16x25mm - Precision Industrial Filtration.
