Premium Quality Sintered Steel Filter
| I.D.(d) | |
| I.D. (d1) | |
| O.D. (D) | |
| O.D. (D1) | |
| Length (L) | |
| Flange Dia. (fd) | |
| Flange Thickness (fl) | |
| General Tolerance | ±0.2mm |
| Weight(ref)/Gram | 0.00 |
| Minimum Order Qty |

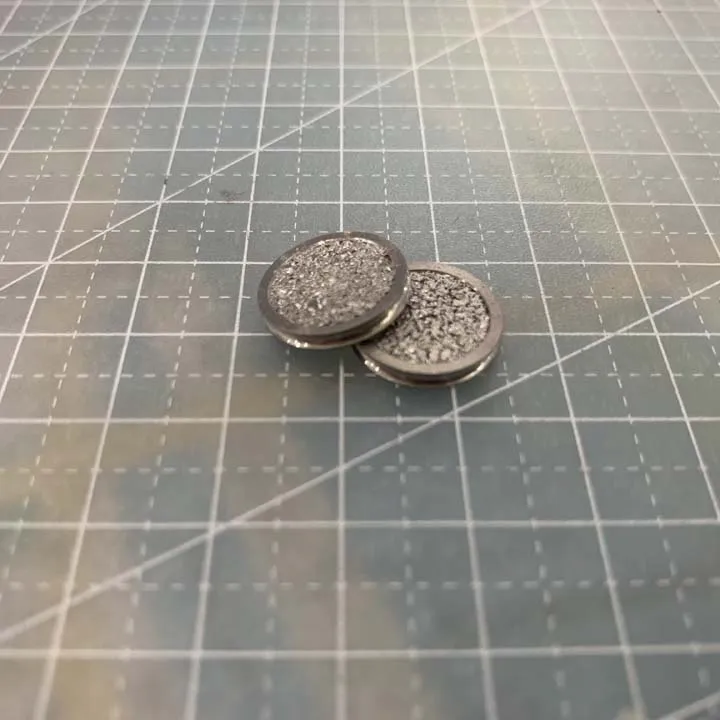

The SINTERED AISI316 FILTER 6.41×1.61 10MICRON is an ultra-compact fine filtration component engineered from sintered stainless steel AISI 316. Designed to operate within limited installation spaces, this 10-micron filter element ensures reliable removal of fine particulates from gas or liquid media in precision applications.
Its small dimensions—6.41 mm diameter by 1.61 mm thickness—make it ideal for fitting inside narrow housings, probes, analytical ports, and dosing modules. The 10µm nominal rating supports stable depth filtration, offering extended filtration life, superior flow uniformity, and minimal pressure drop.
Sintered AISI316 stainless steel provides exceptional corrosion resistance, thermal tolerance, and mechanical strength. The monolithic porous structure is cleanable and reusable, maintaining integrity even after repeated cleaning cycles.
This filter is particularly suited for analytical equipment, detection sensors, laboratory automation, and fuel-cell assemblies where compactness and reliability are paramount.
| Specification | Value |
|---|---|
| Material | Sintered Stainless Steel AISI316 |
| Outer Diameter | 6.41 mm |
| Thickness | 1.61 mm |
| Filtration Rating | 10 micron (nominal) |
| Porosity Type | Depth filtration |
| Media Cleanability | Reusable (ultrasonic/solvent) |
| Temperature Range | –200°C to +600°C |
| Chemical Resistance | Excellent (acids, solvents, gases) |
| Shape | Circular Disc / Plug-Type Insert |
Miniature filter for gas sensors or flow regulators
Fine particle removal in micro-chemical dosing ports
Pre-filter for probes, nozzles, and capillary lines
Embedded filter in micro-reactors or diagnostics devices
Inline gas filtration in fuel cell stacks or sampling lines
Safety screen in valves and analytical fluid junctions
Q1: What type of filtration does this product provide?
It offers depth filtration, capturing particles throughout its porous body—not just on the surface—ensuring longer service life and better particle retention.
Q2: Is it designed for use with both gas and liquid media?
Yes. It performs well with both gases and low-viscosity fluids such as air, argon, water-based solutions, and solvents.
Q3: How is it cleaned or maintained?
It can be cleaned with ultrasonic washing, backflushing, or chemical soaking, and reused multiple times without losing structural integrity.
Q4: What industries typically use this fine stainless filter?
It’s used in analytical chemistry, medical diagnostics, environmental sensing, fuel cells, and lab automation where space and precision are critical.
Q5: Can this filter be customized for OEM designs?
Yes. DALON supports full customization including size, thickness, pore rating, and integration options for instrumentation assemblies.
The versatility of SINTERED AISI316 FILTER 6.41X1.61 10MICRON makes them ideal for various industrial applications. Key industries that benefit from these steel filters include:
Our professional team is ready to assist with your inquiry for this Sintered Filter for Fuel Cell, Probe & Sample Lines.
