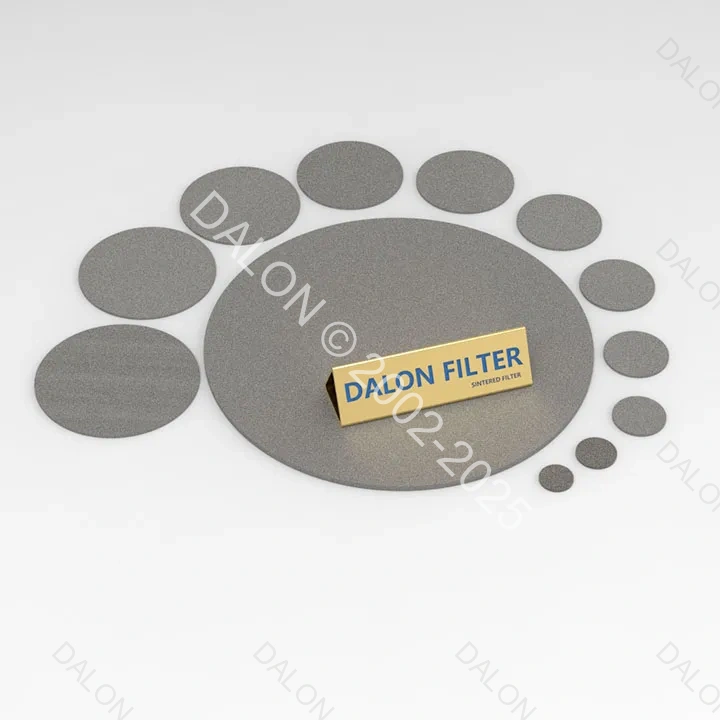

STEEL FILTER DISC 32X6.35 35MICRON

Our premium stainless steel porous filter disc (32mm diameter x 6.35mm thickness) delivers consistent 35-micron filtration for critical processes in pharmaceutical, chemical, and food & beverage industries. The sintered metal structure provides exceptional durability and particle retention.

Key Features:

• Material: 316L stainless steel (corrosion-resistant)

• Pore Size: 35 microns (85% efficiency)

• Temperature Range: -40°C to 400°C

• Applications:

  • Process liquid filtration

  • Compressed air systems

  • Catalyst recovery

  • Sterile gas filtration

Why Choose Our Porous Metal Filters?
✔ Superior Durability – Sintered construction withstands high pressures (up to 15 bar) and repeated cleaning cycles
✔ Consistent Performance – Uniform pore structure prevents particle bypass
✔ Easy Maintenance – Backflush, ultrasonic, or chemical cleaning compatible

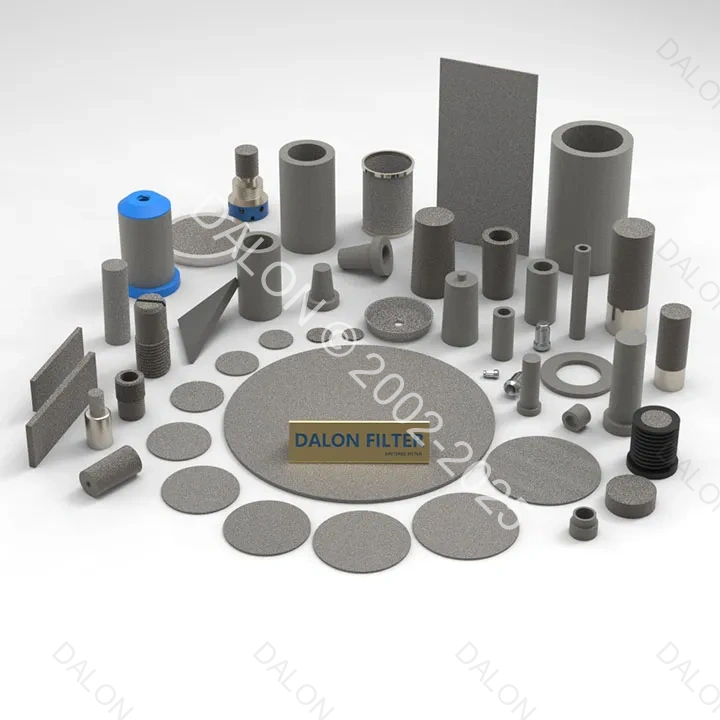

✔ Custom Solutions – Available in sizes from 10mm to 500mm, with pore sizes from 1μm to 100μm
✔ Industry Compliance – Meets FDA, ISO 9001, and ASME standards

Technical Specifications:

• Diameter: 32mm ±0.1mm

• Thickness: 6.35mm ±0.05mm

• Porosity: 30-35%

• Max Pressure Drop: 0.3 bar at 20 L/min (water)

FAQ:

1. What's the difference between nominal and absolute rating?
   Our 35-micron rating is nominal (85% efficiency) – we also offer absolute rated filters.

2. Can these discs be used in CIP systems?
   Yes, 316L material is perfect for Clean-in-Place applications.

3. What's the lead time for custom sizes?
   Standard sizes ship in 3-5 days; custom orders typically 2-3 weeks.

4. Do you provide performance test reports?
   Yes, each batch includes pore size distribution and flow rate testing data.

5. Are these suitable for high-viscosity fluids?
   Yes, we can optimize pore structure for viscous applications.
