Premium Quality Sintered Steel Filter
| I.D.(d) | 46 |
| I.D. (d1) | |
| O.D. (D) | 56 |
| O.D. (D1) | |
| Length (L) | 85 |
| Flange Dia. (fd) | 60 |
| Flange Thickness (fl) | 5 |
| General Tolerance | ±0.2mm |
| Weight(ref)/Gram | 0.00 |
| Minimum Order Qty |

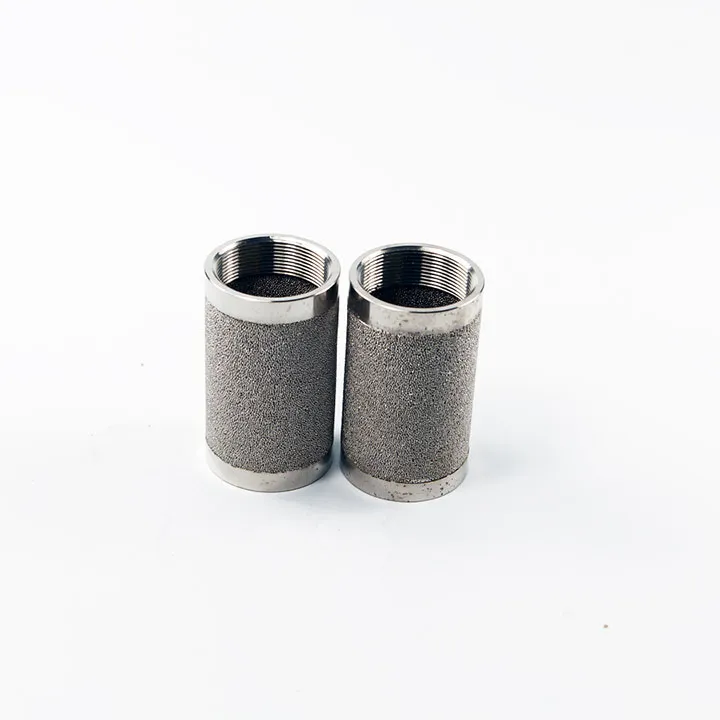

The STEEL FILTER CAP 46×60×85 30MICRON is a high-precision sintered 316L stainless steel filter engineered for aggressive gas, vapor, and liquid filtration in critical industrial applications. Designed with a 30-micron nominal rating, this cylindrical cap combines depth filtration efficiency with extreme mechanical durability.
Manufactured from SS316L powder via isostatic pressing and sintering, the structure features a rigid porous network with uniform distribution, offering low pressure drop and long service life. Its 46 mm inner diameter, 60 mm outer diameter, and 85 mm length provide a large surface area for high throughput while maintaining compact system integration.
Whether protecting sensitive instruments, ensuring media purity, or managing harsh operating environments, this filter cap provides stable performance, corrosion resistance, and thermal endurance across gas, liquid, or vapor-phase filtration needs.
| Property | Value |
|---|---|
| Material | Sintered Stainless Steel 316L |
| Outer Diameter (OD) | 60 mm |
| Inner Diameter (ID) | 46 mm |
| Total Length | 85 mm |
| Filtration Rating | 30 micron (nominal) |
| Structure | Depth-type porous sintered cap |
| Temperature Range | –200°C to +600°C |
| Corrosion Resistance | Excellent in acidic/gaseous media |
| Reusability | Yes – Cleanable and durable |
Natural Gas and Biogas Systems
Hydrogen, Oxygen, or Nitrogen Gas Lines
Chemical & Petrochemical Processing
Pharmaceutical Gas Purification
Steam and High-Pressure Line Protection
Instrumentation Gas Panels & Regulators
Food and Beverage CO₂ Filtration
Marine and Aerospace Environmental Control Systems
Q1: Is this filter compatible with hydrogen or oxygen?
Yes, sintered 316L is widely used in hydrogen and oxygen systems due to its excellent purity, non-reactive nature, and structural integrity under pressure.
Q2: Can it withstand steam sterilization or autoclaving?
Absolutely. SS316L can handle repeated high-temperature sterilization cycles without degradation, making it ideal for cleanroom and pharma use.
Q3: Does it comply with gas purity standards (e.g., ISO 8573)?
While compliance depends on system design, this filter’s 30µm rating supports pre-filtration stages aligned with ISO gas quality classifications.
Q4: How is this different from a mesh filter or screen?
This sintered cap performs depth filtration, trapping particles throughout the material—not just on the surface—resulting in better capacity and longer lifespan.
Q5: Can this be used for cryogenic gas applications?
Yes. Its structural integrity remains intact at extremely low temperatures, suitable for cryogenic nitrogen, argon, or helium systems.
Q6: What mounting options are available for this part?
This type of filter cap can be press-fit, welded, or inserted into custom housings. We also support OEM adaptations.
The versatility of STEEL FILTER CAP 46X60X85 30MICRON makes them ideal for various industrial applications. Key industries that benefit from these steel filters include:
