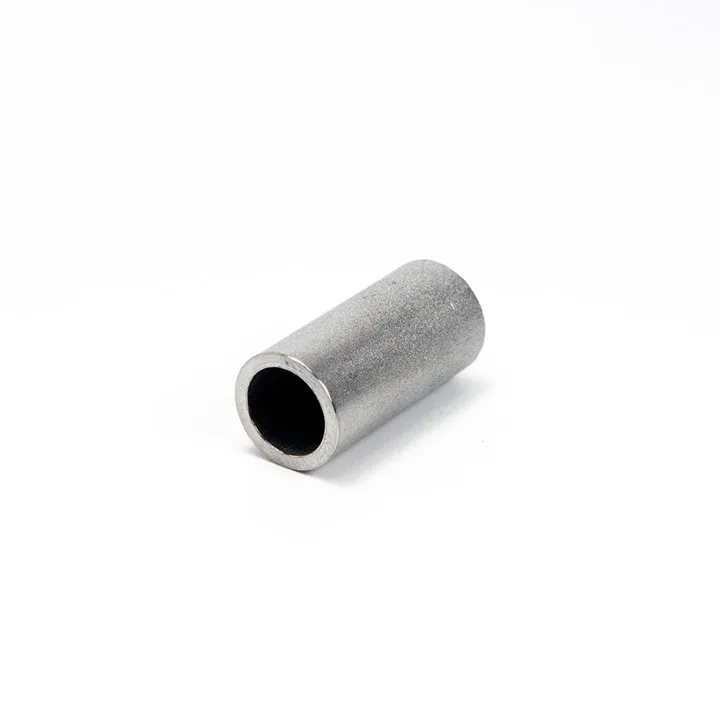

STEEL FILTER TUBE 12X17X40 8MICRON

DALON’s STEEL FILTER TUBE 12×17×40 8MICRON is a high-performance sintered air filter designed to deliver clean, dry, and particle-free airflow in pneumatic, gas, or instrumentation systems. With a 12 mm inner diameter, 17 mm outer diameter, and 40 mm length, this compact filter tube is ideal for tight installations that demand high filtration precision.

Manufactured from sintered stainless steel powder, the filter tube features a rigid, porous structure optimized for depth filtration. The 8-micron rating ensures reliable removal of fine particles while maintaining a low pressure drop across the filter. It is particularly suitable for sensitive systems requiring clean air, such as instrument valves, flow meters, analyzers, and air-driven tools.

Thanks to the corrosion-resistant and thermally stable properties of SS316L, this air filter performs well under demanding conditions, including high pressure, moisture, and vibration. It is washable and reusable, offering an eco-friendly and cost-effective solution for long-term operations.

Key Features:

• Material: Sintered stainless steel (typically 316L)

• Dimensions: ID 12 mm × OD 17 mm × Length 40 mm

• Pore Size: 8 microns

• Filtration Type: Depth filtration with stable pore structure

• Reusability: Ultrasonic and backflush cleanable

• Corrosion & Heat Resistant: Excellent for industrial environments

• Applications: Pneumatic systems, dryers, flow sensors, air filtration lines

• Industries: Automation, laboratory, electronics, medical gas, and air control systems

Common Applications:

• Pre-filtration in pneumatic air lines

• Air cleaning for sensors and control valves

• Flow regulation and particle removal in compressed air tools

• Medical or analytical gas delivery systems

• Exhaust and breather protection in industrial enclosures

FAQ – Frequently Asked Questions

Q1: What does an 8-micron air filter remove?
It captures particles ≥8µm, ensuring clean airflow for precision equipment.

Q2: Is this filter tube reusable?
Yes. It supports cleaning via ultrasonic baths, backflushing, or solvent rinsing.

Q3: Can this filter work under high temperature and pressure?
Absolutely. The sintered stainless steel structure is designed for robust operating conditions.

Q4: Does this filter tube reduce airflow?
Minimal pressure drop occurs due to its high porosity and open pore structure.

Q5: Can DALON customize the size or micron rating?
Yes. Custom dimensions, pore sizes, and materials are available upon request.
