Premium Quality Sintered Steel Filter
| I.D.(d) | 16.2 |
| I.D. (d1) | |
| O.D. (D) | 79 |
| O.D. (D1) | |
| Length (L) | 4 |
| Flange Dia. (fd) | |
| Flange Thickness (fl) | |
| General Tolerance | ±0.2mm |
| Weight(ref)/Gram | 0.00 |
| Minimum Order Qty |

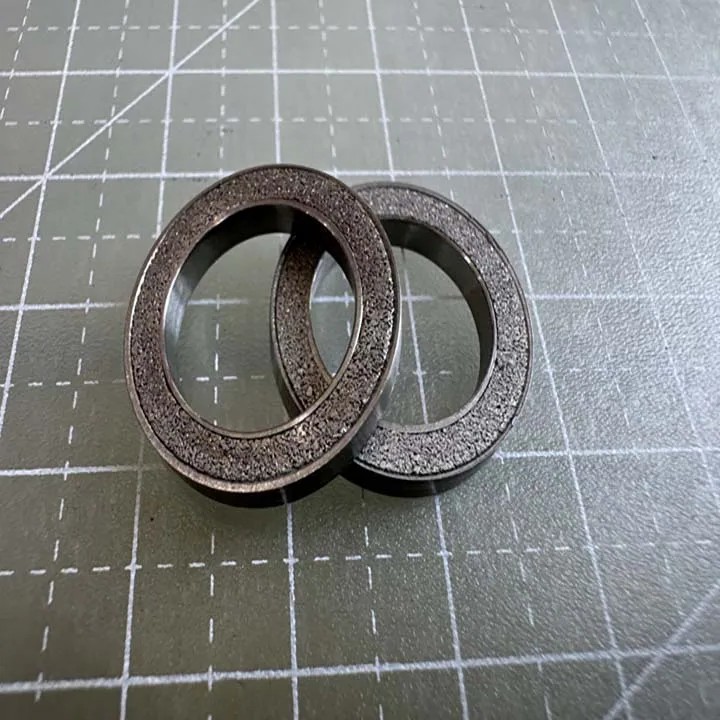

The STEEL FILTER RING 16.2×79×4 40MICRON is a compact sintered metal filter element designed in a ring shape for precise depth filtration in gas, air, or fluid systems. Manufactured from stainless steel powder through a controlled sintering process, this filter ring achieves a uniform porous structure with a nominal pore size of 40 microns.
With an inner diameter of 16.2 mm, an outer diameter of 79 mm, and a thickness of 4 mm, this filter ring is ideal for integration into annular housings, circular sealing structures, or rotating mechanical assemblies where radial filtration or uniform 360° flow distribution is required.
The stainless steel sintered body delivers high strength, corrosion resistance, and thermal stability. It is fully cleanable and supports repeated use, making it a sustainable choice for critical industrial filtration tasks.
| Specification | Value |
|---|---|
| Material | Stainless Steel (Sintered) |
| Inner Diameter (ID) | 16.2 mm |
| Outer Diameter (OD) | 79 mm |
| Thickness | 4 mm |
| Filtration Rating | 40 micron (nominal) |
| Porosity Type | Depth filtration |
| Media Cleanability | Reusable, ultrasonic-safe |
| Temperature Range | –200°C to +600°C |
| Pressure Resistance | Suitable for pressurized systems |
Circular inline filtration for air/gas pipelines
Ring-shaped filtration modules in rotary systems
Vacuum sealing filters for process equipment
Exhaust or vent ring filters for pneumatic tools
Analytical system flow equalization
Sealing and filtration in gas sensor housings
Flow ring filters in environmental monitoring devices
Q1: What is this sintered metal filter ring used for?
It’s used for radial or 360° filtration in round or annular filter housings, often in gas, vacuum, or analytical systems.
Q2: Can the ring be cleaned and reused?
Yes. The filter is fully cleanable using ultrasonic baths, reverse flow, or solvent soaking.
Q3: Does the ring handle high pressure or temperature?
Yes. The stainless steel construction ensures mechanical stability under harsh conditions up to 600°C.
Q4: Is the 40-micron grade suitable for air and gas systems?
Yes. It offers effective protection from medium-sized particles, suitable for most air and inert gas lines.
Q5: Can I get different ring sizes or pore ratings?
Absolutely. DALON manufactures custom sintered ring filters with tailored dimensions and micron ratings upon request.
The versatility of STEEL FILTER RING 16.2X79X4 40MICRON makes them ideal for various industrial applications. Key industries that benefit from these steel filters include:
Our professional team is ready to assist with your inquiry for this Ring Filter for Instrumentation & Flow Equipment.
