STEEL FILTER TUBE 11.75X15.75X25 100MICRON

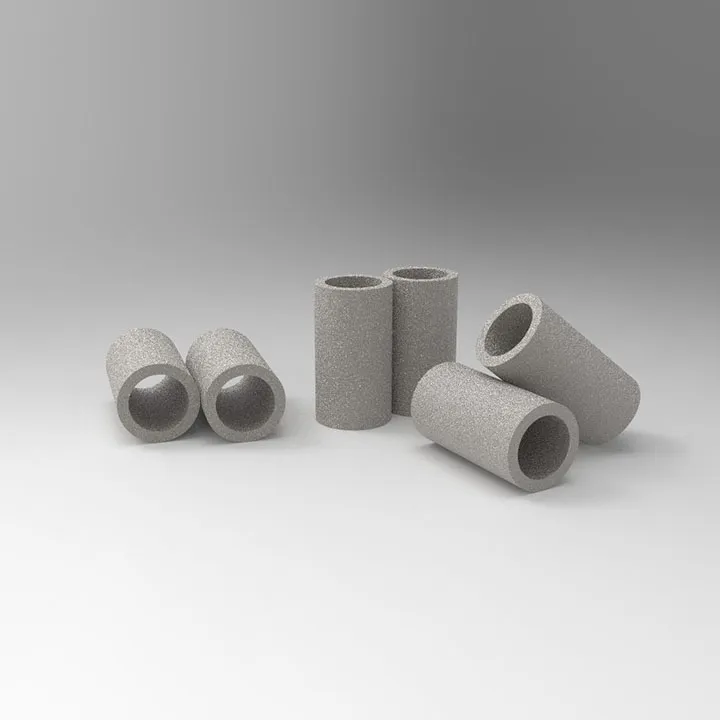

DALON’s STEEL FILTER TUBE 11.75×15.75×25 100MICRON is a compact and robust sintered metal filter engineered for 100-micron coarse filtration in high-flow air, gas, or liquid applications. With an inner diameter of 11.75 mm, outer diameter of 15.75 mm, and length of 25 mm, this filter is ideal for installations with space constraints while maintaining filtration efficiency.

Made from sintered stainless steel powder, the tube’s uniform porous structure provides depth filtration, capturing particles throughout the filter media. The 100µm pore size is well-suited for pre-filtration, flow protection, and coarse particle removal in systems where low pressure drop and high throughput are critical.

This filter tube is chemically and thermally resistant, supporting operation in corrosive environments, high temperatures, and pressure-varying systems. It is fully washable and reusable, making it a cost-effective and eco-conscious solution for long-term use.

Key Features:

• Material: Sintered stainless steel (typically SS316L)

• Size: ID 11.75 mm × OD 15.75 mm × Length 25 mm

• Pore Size: 100 microns

• Structure: Rigid, porous metal matrix

• Performance: High flow with minimal pressure drop

• Reusable: Supports ultrasonic, solvent, or backflush cleaning

• Applications: Gas vents, pump protection, pre-filtration

• Industries: Pneumatics, fluid control, fuel systems, automation

Common Applications:

• Coarse particle removal in gas and fluid pipelines

• Vent filters in tanks, enclosures, and vacuum systems

• Pre-filters in fuel dispensers, compressors, or pumps

• Flow regulation or exhaust filter in high-volume setups

• Air or gas filtering in environmental and test equipment

FAQ – Frequently Asked Questions

Q1: What can a 100-micron sintered filter block?
It traps larger particles, debris, and contaminants ≥100µm, ideal for coarse filtration.

Q2: Is this tube filter reusable?
Yes. The stainless steel construction allows multiple cleaning cycles and long-term use.

Q3: Can this be used in fuel or oil systems?
Yes. It withstands hydrocarbons, oils, and chemicals with high corrosion resistance.

Q4: What’s the advantage of sintered metal vs mesh filters?
Sintered filters offer uniform porosity, stronger structure, and depth filtration.

Q5: Can DALON customize dimensions or pore sizes?
Absolutely. Custom pore sizes, lengths, diameters, and material grades are available.
