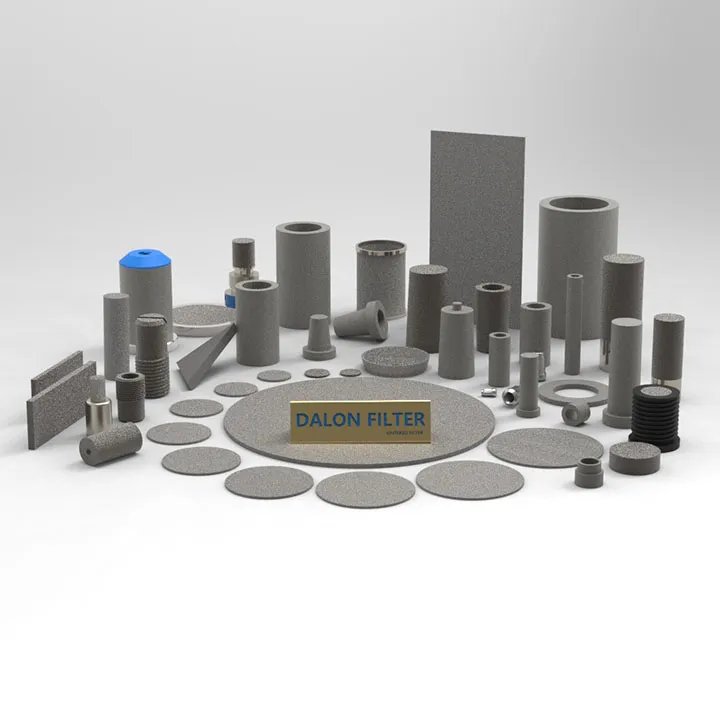

STEEL FILTER DISC 24X10 100MICRON

DALON’s STEEL FILTER DISC 24×10 100MICRON is a robust, sintered porous filter element designed for high-flow, coarse particle separation in air, gas, and liquid systems. With a diameter of 24 mm and a thickness of 10 mm, this disc delivers excellent flow performance and mechanical stability where low resistance and durability are essential.

Constructed from sintered stainless steel powder, the filter features a three-dimensional porous matrix that captures contaminants within its structure, making it ideal for depth filtration. The 100-micron pore size allows efficient removal of larger particulates while maintaining a consistent flow rate and minimal pressure drop.

This sintered disc is chemically resistant, thermally stable, and reusable, making it suitable for demanding environments such as gas purification systems, process ventilation, and oil or water pre-filtration. It is easily cleaned using ultrasonic baths, solvents, or backflushing, significantly extending its service life.

Key Features:

• Material: Sintered stainless steel (typically SS316L)

• Size: Diameter 24 mm × Thickness 10 mm

• Pore Size: 100 microns

• Filtration Type: Depth filtration

• Reusable: Supports ultrasonic and solvent cleaning

• Flow Characteristics: High flow with low resistance

• Applications: Pre-filtration, tank vents, gas systems, pump inlets

• Industries: Industrial processing, fluid control, pneumatic systems

Common Applications:

• Pre-filtration in air, water, and hydraulic systems

• Vent filters for tanks, drums, and vacuum chambers

• Pump and compressor inlet protection

• Dust removal in pneumatic control systems

• High-flow filtration in chemical or fuel dispensing setups

FAQ – Frequently Asked Questions

Q1: What does a 100-micron filter remove?
It captures larger particles ≥100µm, such as dust, debris, and process residues.

Q2: Is this disc filter reusable?
Yes. It can be cleaned and reused many times with backflush or ultrasonic methods.

Q3: Does it affect airflow or fluid flow?
Its porous structure ensures minimal pressure drop while providing effective coarse filtration.

Q4: Can it be used with corrosive media?
Yes. SS316L offers high chemical and temperature resistance.

Q5: Is customization available for this part?
Absolutely. DALON can provide custom sizes, thicknesses, and pore ratings upon request.
