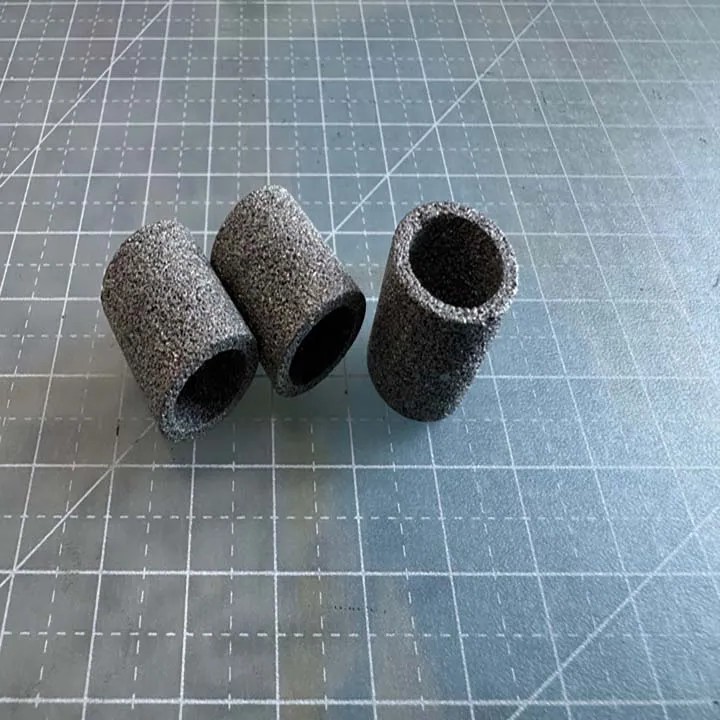

STEEL FILTER CAP 5.5X17.78X30 100MICRON

DALON’s STEEL FILTER CAP 5.5×17.78×30 100MICRON is a compact and high-strength sintered porous metal filter element, designed to deliver 100-micron coarse filtration in gas, air, or liquid systems. With dimensions of inner diameter 5.5 mm, outer diameter 17.78 mm, and total length 30 mm, this filter cap supports inline installation in compact industrial assemblies.

Made from sintered stainless steel powder, the filter element forms a rigid porous structure that ensures consistent flow and high particle retention. Its depth-type filtration captures contaminants throughout the body rather than just on the surface, improving efficiency and reducing clogging.

The 100-micron filtration rating makes it ideal for pre-filtration, equipment protection, or vent filtering in applications where larger particulates need to be removed before entering sensitive components. This filter element is washable and reusable, allowing long-term performance and reduced maintenance cost.

Key Features:

• Material: Sintered stainless steel

• Size: ID 5.5 mm × OD 17.78 mm × Length 30 mm

• Filtration Rating: 100 microns

• Construction: Rigid porous metal, corrosion-resistant

• Reusable: Cleanable via backflushing or ultrasonic methods

• Applications: Gas filters, air dryers, fluid protection, pressure regulators

• Industries: Pneumatics, instrumentation, fuel systems, chemical processing

Common Applications:

• Pre-filtration in compressed air and gas systems

• Venting and breather filters in fuel or chemical containers

• Inline filters in hydraulic or pneumatic devices

• Equipment protection in industrial control systems

• Flow regulation and contamination prevention in instrumentation setups

FAQ – Frequently Asked Questions

Q1: What does a 100-micron filter element remove?
It captures coarse particles ≥100 microns, suitable for bulk filtration and upstream protection.

Q2: Is the filter cap reusable?
Yes. It supports multiple cleaning cycles using ultrasonic, solvent, or backflush methods.

Q3: What are the benefits of sintered porous metal vs. mesh filters?
Sintered elements offer stronger mechanical properties, consistent pore structure, and deeper filtration performance.

Q4: Can the filter withstand corrosive environments?
Yes. Its stainless steel construction ensures resistance to chemical and thermal stress.

Q5: Can the filter cap be customized?
Absolutely. DALON supports custom dimensions, filtration ratings, and material choices.
