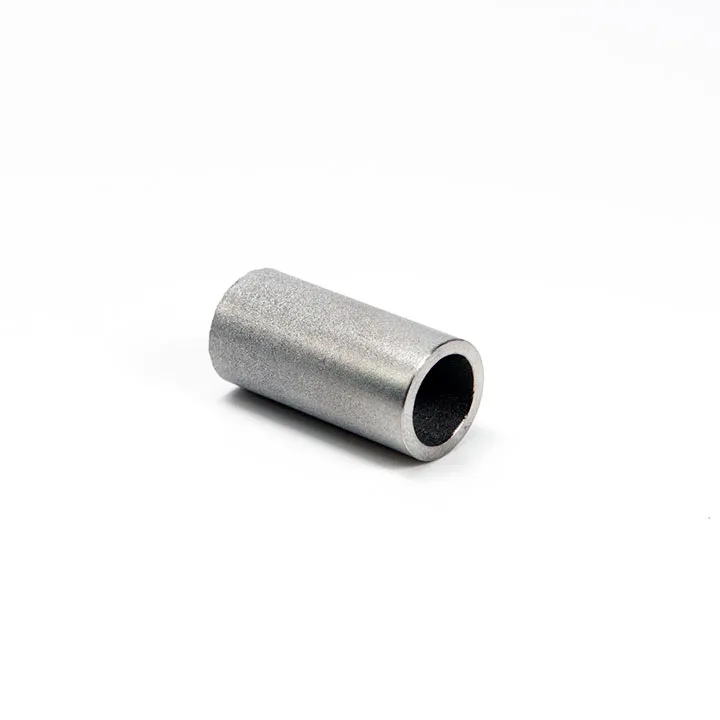

STEEL FILTER CAP 9X12.5X19.8 90MICRON

DALON’s STEEL FILTER CAP 9×12.5×19.8 90MICRON is a high-flow sintered porous metal filter designed for effective coarse filtration in gas, air, and low-viscosity fluid systems. With dimensions of 9 mm inner diameter, 12.5 mm outer diameter, and 19.8 mm total length, this compact cap provides reliable filtration while supporting stable system performance.

The filter is produced using sintered stainless steel powder, forming a rigid porous matrix that traps particles internally while maintaining open flow paths. The 90-micron pore size is ideal for blocking dust, process debris, and larger particles without creating high pressure drop—making it perfect for pre-filtration or venting applications.

DALON’s metal filter caps are chemically resistant, thermally stable, and reusable. They can withstand mechanical stress and pressure fluctuations, and are suitable for repetitive cleaning via ultrasonic baths, solvent rinsing, or backflushing.

Key Features:

• Material: Sintered stainless steel (typically SS316L)

• Dimensions: ID 9 mm × OD 12.5 mm × Length 19.8 mm

• Filtration Rating: 90 microns

• Design: Cylindrical filter cap with depth filtration

• Reusable: Cleanable by backflushing or solvent

• Durability: High resistance to pressure, heat, and corrosion

• Applications: Pneumatic systems, tank vents, compressors, process filters

• Industries: Industrial machinery, automation, filtration systems

Common Applications:

• Inline protection for air and gas pipelines

• Venting filters for enclosed tanks or containers

• Pre-filtration for fuel, solvent, or water-based systems

• Sensor protection in industrial automation setups

• Pressure equalization in sealed electronic housings

FAQ – Frequently Asked Questions

Q1: What is a 90-micron filter used for?
It captures larger particulates, such as process dust or system debris, ideal for pre-filtration.

Q2: Is this filter cap reusable?
Yes. It can be cleaned and reused multiple times with proper maintenance.

Q3: Can it be used in fuel or gas lines?
Yes. The stainless steel construction ensures chemical compatibility and structural stability.

Q4: Does it significantly reduce flow?
No. The 90-micron pore size supports high flow with minimal pressure drop.

Q5: Is customization available for this item?
Yes. DALON supports OEM customization for pore size, dimensions, and threading.
