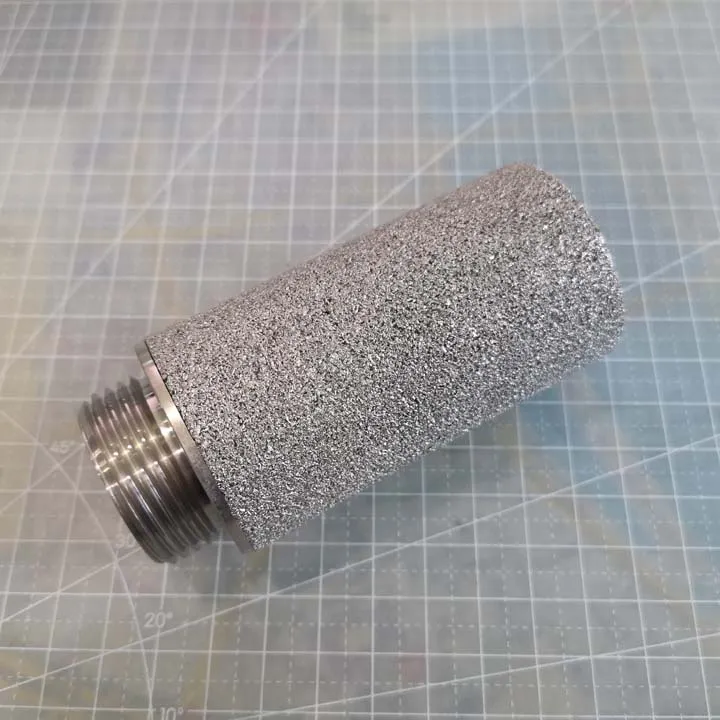

STEEL FILTER CARTRIDGE 28X36X60 10MICRON

DALON’s STEEL FILTER CARTRIDGE 28×36×60 10MICRON is a precision-engineered sintered porous stainless steel air filter designed for high-efficiency air and gas filtration in demanding industrial environments. Constructed using 316L stainless steel powder metallurgy, the cartridge provides uniform 10µm filtration, structural rigidity, and long-term durability.

With a 28 mm inner diameter, 36 mm outer diameter, and 60 mm length, this filter is ideal for use in air dryers, compressors, pneumatic systems, process gas filters, and sensor protection. Its rigid, sintered body ensures depth filtration, reducing clogging risks and supporting stable flow under pressure.

The 10-micron pore size efficiently traps fine particulate matter while maintaining high flow rates. The reusable design allows for multiple cleaning cycles using ultrasonic baths, solvent flushing, or reverse air pressure.

Key Features:

• Material: Sintered Stainless Steel 316L

• Size: 28 mm ID × 36 mm OD × 60 mm length

• Filtration Rating: 10 microns

• Structure: Rigid porous tube for depth filtration

• Strength: Vibration-, heat-, and corrosion-resistant

• Reusability: Supports ultrasonic or backflush cleaning

• Airflow Efficiency: High porosity for consistent gas flow

• Compatibility: Suitable for air, inert gases, vapor, and clean air handling systems

Common Applications:

• Air compressor outlet filters

• Pneumatic equipment inlet protection

• Solvent and gas vapor filtration

• Gas purging systems in laboratories

• Vent and exhaust particle control

• Cleanroom equipment and gas lines

FAQ – Frequently Asked Questions

Q1: What does 10 microns mean in air filtration?
It refers to the ability to remove particles ≥10µm, making it suitable for clean air systems needing particulate control.

Q2: Can this air filter be reused?
Yes. The sintered structure allows repeated cleaning and extended service life.

Q3: Is it suitable for continuous high-pressure air use?
Absolutely. The 316L sintered steel body resists fatigue and retains pore structure under pressure.

Q4: Why use sintered stainless instead of fiber or paper?
Sintered metal offers fixed pore size, chemical resistance, thermal stability, and far longer service life.

Q5: Can DALON customize this filter cartridge?
Yes. We can adjust dimensions, pore ratings, and integration fittings to match your exact air system.
