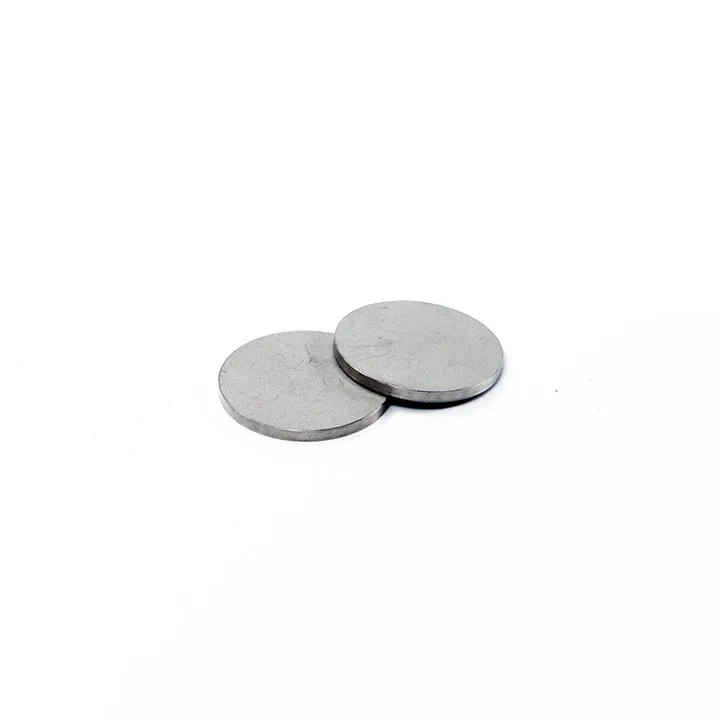

STEEL FILTER DISC 34.5X3 100MICRON

Premium Quality Sintered Steel Filter

DALON DISC FILTER

Product Overview

Product Specifications

Manufacturer DALON
Material POROUS STAINLESS STEEL
Type DISC FILTER
Reference Drawing
Product Code AISI316FD3453M100
Pore Pitch 100MICRON
HS Code 84219990
RoHS Compliant
REACH Compliant

Technical Drawings & Dimensions

Sintered Porous Stainless Steel filter Technical Drawing

Product Dimensions

I.D.(d)
I.D. (d1)
O.D. (D)
O.D. (D1)
Length (L)
Flange Dia. (fd)
Flange Thickness (fl)
General Tolerance ±0.3mm
Weight(ref)/Gram 0.00
Minimum Order Qty 0
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

Industrial-Grade Sintered Filter Disc (34.5x3mm) - ISO Certified, Durable Construction

STEEL FILTER DISC 34.5X3 100MICRON Additional image 1

Our premium sintered stainless steel filter disc (34.5mm diameter × 3mm thickness) provides optimal 100-micron filtration for high-flow applications in chemical processing, petrochemical, and water treatment systems. The porous metal structure delivers exceptional permeability while maintaining reliable particle retention.

Key Features:

  • Material: 316L stainless steel (excellent corrosion resistance)

  • Pore Size: 100 microns (controlled pore distribution)

  • Temperature Range: -40°C to 500°C

  • Pressure Rating: Up to 15 bar operating pressure

  • Applications:

    • Process liquid pre-filtration

    • Gas distribution systems

    • Fluidized bed applications

    • Sparger systems

Why Choose Our Sintered Filters?

✔ High Flow Capacity - Optimized pore structure minimizes pressure drop
✔ Consistent Performance - Uniform pore distribution prevents channeling
✔ Rugged Construction - Withstands vibration and mechanical stress
✔ Easy Maintenance - Cleanable by backflushing or chemical methods
✔ Custom Solutions - Available in various sizes and pore configurations

Technical Specifications:

  • Diameter: 34.5mm ±0.1mm

  • Thickness: 3mm ±0.05mm

  • Porosity: 35-40%

  • Bubble Point: 0.8 bar (water)

  • Surface Finish: Ra ≤6.3μm

FAQ:

  1. What's the maximum flow rate for this filter disc?
    Approximately 50 L/min/cm² at 1 bar pressure drop (water).

  2. Can these discs be used for gas sparging applications?
    Yes, ideal for creating fine bubbles in gas-liquid systems.

  3. Is the 100-micron rating absolute or nominal?
    Standard version is nominal rating (85% efficiency at 100μm).

  4. What cleaning methods are recommended?
    Suitable for backflushing, ultrasonic cleaning, and chemical cleaning.

  5. Do you offer different materials for corrosive applications?
    Yes, available in 316L, Hastelloy, and other specialty alloys.

Additional image 2
100-micron sintered stainless steel filter disc (34.5x3mm) for high-flow industrial filtration. Excellent permeability, corrosion resistant. Get specifications today.

Applications & Industries

Filter Silencing Applications Filter Silencing Applications

Chemical & Manufacturing

  • CHEMICAL INDUSTRIES
  • SEMICONDUCTOR
  • SCIENTIFIC INSTRUMENT
  • PHARMACEUTICAL
  • POLYMER FILTRATION
  • GAS AND LIQUID FILTRATION
Fluidization Applications Filter Silencing Applications

Common Applications

  • SILENCING
  • SPARGING
  • FLUIDIZATION
  • SENSOR AND VALVE PROTECTION
  • FLOW RESTRICTION
  • HANDLING OF BULK MATERIAL
Filter Applications

Industry Solutions

The versatility of STEEL FILTER DISC 34.5X3 100MICRON makes them ideal for various industrial applications. Key industries that benefit from these steel filters include:

Chemical & Pharmaceutical:
- For precise filtration in chemical processing, pharmaceutical manufacturing, and laboratory applications.
Semiconductor & Electronics:
- In clean room environments and semiconductor manufacturing where high-purity filtration is critical.
Manufacturing & Processing:
- For industrial gas and liquid filtration in manufacturing processes and production lines.
Water & Waste Treatment:
- In water purification systems and wastewater treatment where reliable filtration is essential.
Air & Gas Systems:
- For air filtration, gas distribution, and pneumatic systems requiring precise flow control.
