STEEL FILTER CAP 12X18X34 60MICRON

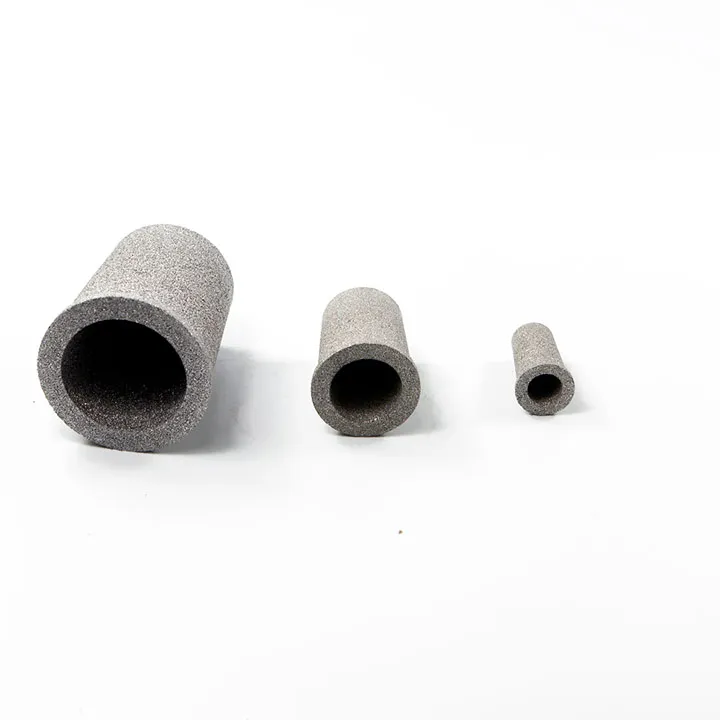

The STEEL FILTER CAP 12×18×34 60MICRON from DALON is a sintered stainless steel filter engineered for effective medium-grade filtration in compressed air, gas, and liquid systems. With an inner diameter of 12 mm, outer diameter of 18 mm, and a total length of 34 mm, this filter cap is ideal for inline applications where space, durability, and performance are critical.

Manufactured from SS316L stainless steel powder, the filter element forms a rigid and porous matrix, achieving a 60-micron filtration rating. This allows for stable flow, pressure resistance, and particle capture without compromising performance. It’s especially suitable for applications where contaminants like rust, scale, or process residue must be filtered out of air, gas, or low-viscosity fluids.

DALON's sintered filter caps are corrosion-resistant, temperature-tolerant, and cleanable, making them a cost-effective solution for systems that demand high durability and low maintenance.

Key Features:

• Material: Sintered stainless steel (SS316L)

• Dimensions: ID 12 mm × OD 18 mm × Length 34 mm

• Pore Size: 60 microns

• Construction: One-piece sintered porous body

• Filtration Type: Depth filtration

• Reusable: Suitable for ultrasonic, solvent, or backflush cleaning

• Applications: Air/gas filtration, pump protection, pressure equalization

• Industries: Pneumatics, hydraulics, energy, process systems, machinery

Common Applications:

• Inline filtration in gas and compressed air systems

• Vent filters for pumps and sealed containers

• Protection of pressure sensors and control valves

• Pre-filtration in hydraulic or lubricant circuits

• Filtering abrasive particles in low-viscosity liquids

FAQ – Frequently Asked Questions

Q1: What does a 60-micron filter capture?
It captures medium-size particulates such as rust flakes, dust, and small debris.

Q2: Is this filter cap reusable?
Yes. It can be cleaned and reused using standard industrial cleaning techniques.

Q3: Can I use it for both air and liquid systems?
Absolutely. It performs well in both gas and low-viscosity fluid environments.

Q4: Is it suitable for corrosive or hot conditions?
Yes. SS316L provides excellent corrosion and temperature resistance.

Q5: Does DALON offer custom dimensions or porosity?
Yes. We provide OEM customization for pore size, size, and fitting design.
