STEEL FILTER DISC 45X3 100MICRON

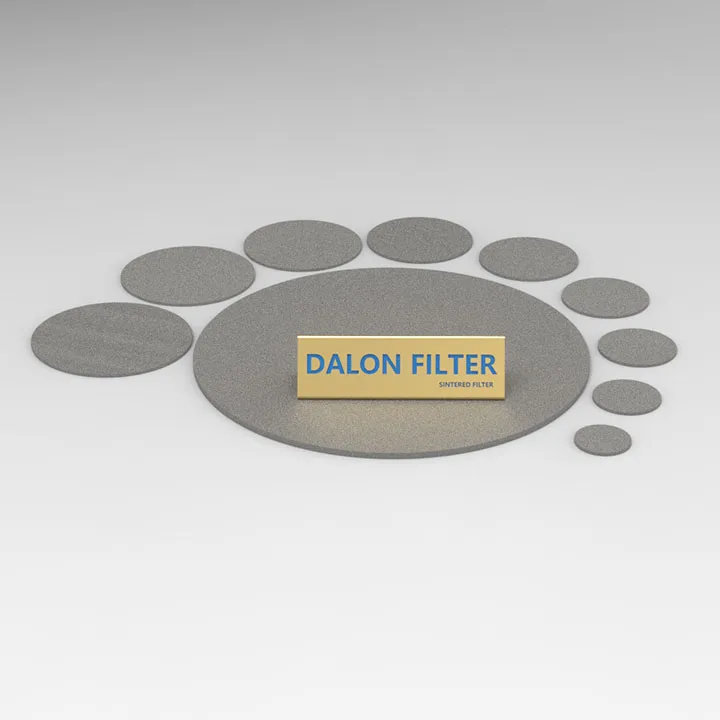

Our premium sintered stainless steel filter disc (45mm diameter × 3mm thickness) delivers reliable 100-micron filtration for high-flow applications in chemical processing, petrochemical, and water treatment systems. The porous metal structure ensures optimal flow rates while maintaining consistent particle retention.

Key Features:

• Material: 316L stainless steel (superior corrosion resistance)

• Pore Size: 100 microns (controlled pore distribution)

• Temperature Range: -40°C to 500°C

• Pressure Rating: Up to 15 bar (custom high-pressure versions available)

• Applications:

  • Process liquid pre-filtration

  • Gas distribution systems

  • Fluidized bed applications

  • Sparger systems

Why Choose Our Sintered Filters?

✔ High Flow Capacity – Optimized pore structure minimizes pressure drop
✔ Consistent Performance – Uniform pore distribution prevents bypass
✔ Rugged Construction – Withstands vibration and mechanical stress
✔ Easy Maintenance – Cleanable by backflushing, ultrasonic, or chemical methods

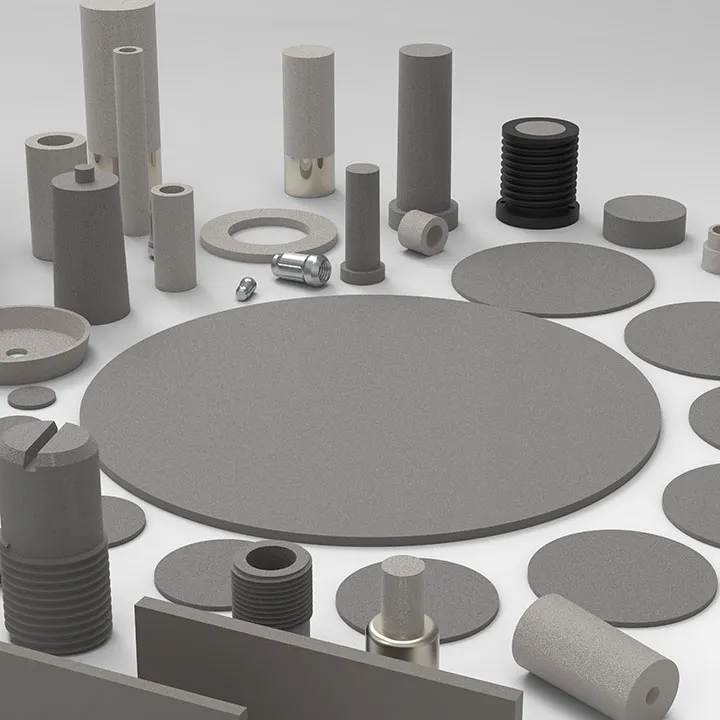

✔ Custom Solutions – Available in various sizes (10-500mm) and pore configurations

Technical Specifications:

• Diameter: 45mm ±0.1mm

• Thickness: 3mm ±0.05mm

• Porosity: 35-40%

• Bubble Point: 0.8 bar (water)

• Surface Finish: Ra ≤6.3μm

FAQ:

1. What's the maximum flow rate for this filter disc?
   Approximately 60 L/min/cm² at 1 bar pressure drop (water).

2. Can these discs be used for gas sparging applications?
   Yes, ideal for creating fine, uniform bubbles in gas-liquid systems.

3. Is the 100-micron rating absolute or nominal?
   Standard version is nominal rating (85% efficiency at 100μm) – absolute rated options available.

4. What cleaning methods are recommended?
   Suitable for backflushing, ultrasonic cleaning, and chemical cleaning with most solvents.

5. Do you offer different materials for aggressive media?
   Yes, available in 316L, Hastelloy, and other specialty alloys for corrosive environments.
