Premium Quality Sintered Steel Filter
| I.D.(d) | |
| I.D. (d1) | |
| O.D. (D) | |
| O.D. (D1) | |
| Length (L) | |
| Flange Dia. (fd) | |
| Flange Thickness (fl) | |
| General Tolerance | ±0.2mm |
| Weight(ref)/Gram | 0.00 |
| Minimum Order Qty |

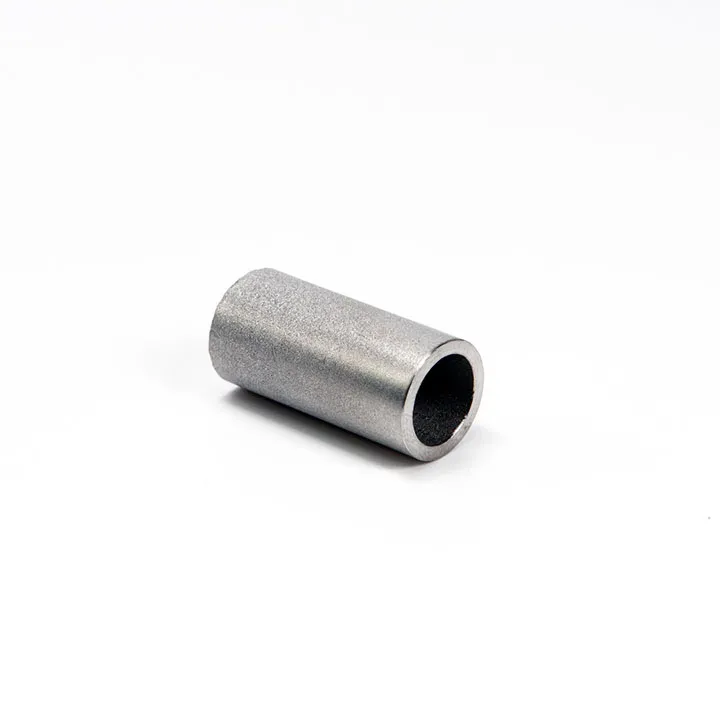

The SINTERED STAINLESS STEEL 316L FILTER 18×23×15 100MICRON is a coarse filtration cartridge made from sintered 316L stainless steel, designed for high-flow pre-filtration of air, liquids, or slurries in industrial applications. Its 100-micron nominal pore size allows it to capture larger particulates while maintaining flow performance, making it ideal as a first-stage filter.
With compact dimensions of 18 mm ID, 23 mm OD, and 15 mm length, this filter cartridge can be fitted into tight housings, pipelines, or system manifolds. The sintered structure offers uniform porosity, rigid mechanical integrity, and superior resistance to corrosion and thermal shock.
This reusable cartridge is widely used in lubricant filtration, cooling system protection, compressed air lines, and chemical or solvent delivery, where coarse filtration extends the lifespan of downstream components.
| Specification | Value |
|---|---|
| Material | Sintered Stainless Steel 316L |
| Inner Diameter (ID) | 18 mm |
| Outer Diameter (OD) | 23 mm |
| Length | 15 mm |
| Filtration Rating | 100 micron (nominal) |
| Filtration Type | Depth filtration |
| Operating Temp Range | –200°C to +600°C |
| Pressure Resistance | High – suitable for fluid/gas lines |
| Chemical Resistance | Excellent – acids, bases, solvents |
| Reusability | Yes – solvent, ultrasonic, backflush |
Pre-filtration in fluid and air handling systems
Lubricant and coolant filtering for industrial machinery
Compressed air purification in pneumatic circuits
Slurry filtration in ceramic or catalyst production
Chemical pre-filtration to protect finer filter stages
Valve and actuator protection in process control
Debris removal in pump and seal flush systems
Q1: What is the main function of this filter cartridge?
It serves as a coarse particulate filter, extending the life of downstream fine filters and system components.
Q2: Can this filter be reused after clogging?
Yes. The 316L sintered structure is fully cleanable by solvent rinse, backflushing, or ultrasonic bath.
Q3: Is it suitable for high-flow systems?
Absolutely. The 100µm pore size ensures minimal pressure drop and high throughput, ideal for utility and general-purpose lines.
Q4: What fluids or gases can it filter?
It handles air, nitrogen, lubricants, water, coolants, oils, solvents, and many industrial process fluids.
Q5: Can DALON offer this in other sizes or micron ratings?
Yes. We support OEM customization of dimensions, pore ratings, and connection types to suit your application.
The versatility of SINTERED STAINLESS STEEL 316L FILTER 18X23X15 100MICRON makes them ideal for various industrial applications. Key industries that benefit from these steel filters include:
Our professional team is ready to assist with your inquiry for this Coarse Filtration Cartridge for Pneumatics & Fluids.
