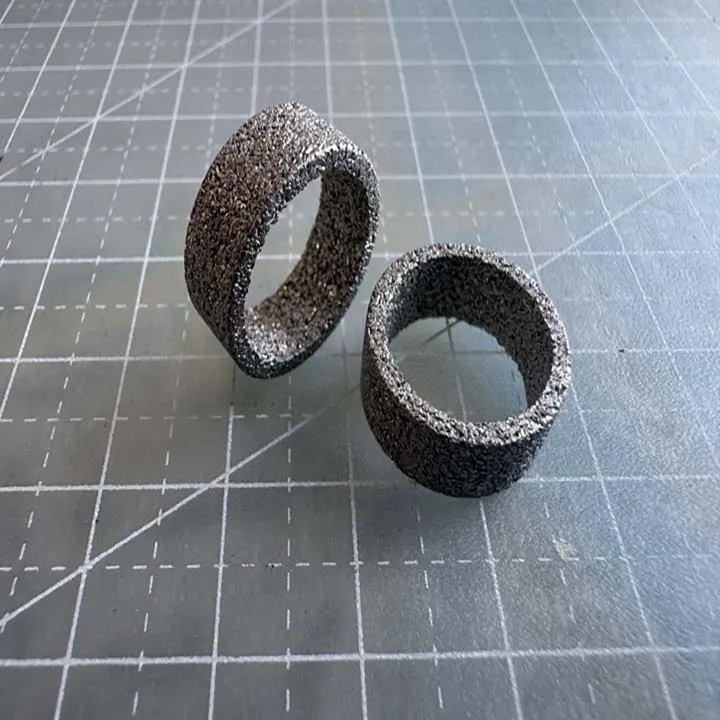

SINTERED STAINLESS STEEL 316L RING FILTER 3X46X2 3MICRON

This SINTERED STAINLESS STEEL 316L RING FILTER (3mm ID × 46mm OD × 2mm thickness, 3µm) is engineered for critical applications requiring absolute precision and chemical resistance. Ideal for:

• High-purity gas/liquid filtration (e.g., HPLC, semiconductor gases).
• Pharmaceutical and biotech fluid systems.
• Corrosive media (acids, solvents, ultra-pure water).

Key Advantages:
✔ 3µm absolute rating – Reliable particle retention.
✔ 316L stainless steel – Resists pitting/crevice corrosion.
✔ Ultra-thin 2mm profile – Saves space in compact assemblies.
✔ Reusable – Cleanable via ultrasonic/backflushing.

Technical Specifications

Applications

• Semiconductor: Ultra-high-purity (UHP) gas lines.
• Pharma: Sterile filtration for APIs/solvents.
• Analytical Instruments: HPLC, GC carrier gas filtration.
• Chemical Processing: Aggressive fluid filtration.

Customization Options

1. Pore Size: 1–50µm (1µm for sub-micron retention).
2. Materials: 304, Nickel, Titanium, or Hastelloy®.
3. Dimensions: Custom IDs/ODs (down to 1mm ID for microfluidics).
4. Certifications: FDA, ISO 9001, ASME BPE.

Lead Time & Pricing

• Standard (3µm, 316L): 10–12 days.
• Expedited: +25% (5–7 days).
• Prototyping: Available for custom designs.

FAQ

Q1: Is this filter suitable for oxygen systems?
A: Yes, with proper oxygen-cleaning (ask for ASTM G93 compliance).

Q2: Can it filter viscous liquids?
A: Not recommended—optimized for low-viscosity gases/fluids.

Q3: How to clean it?
A: Ultrasonic (DI water) or backflush with clean solvent.
