STEEL FILTER DISC 20X6.35 35MICRON

Premium Quality Sintered Steel Filter

DALON DISC FILTER

Product Overview

Product Specifications

Manufacturer DALON
Material POROUS STAINLESS STEEL
Type DISC FILTER
Reference Drawing
Product Code AISI316FD20635M35
Pore Pitch 35MICRON
HS Code 84219990
RoHS Compliant
REACH Compliant

Technical Drawings & Dimensions

Stainless Steel Filter Technical Drawing

Product Dimensions

I.D.(d)
I.D. (d1)
O.D. (D)
O.D. (D1)
Length (L)
Flange Dia. (fd)
Flange Thickness (fl)
General Tolerance ±0.3mm
Weight(ref)/Gram 0.00
Minimum Order Qty 0
All dimensions in millimeters (mm) unless otherwise specified.

Product Description

High-Purity Stainless Filter Disc – 35 Micron for Critical Process Applications

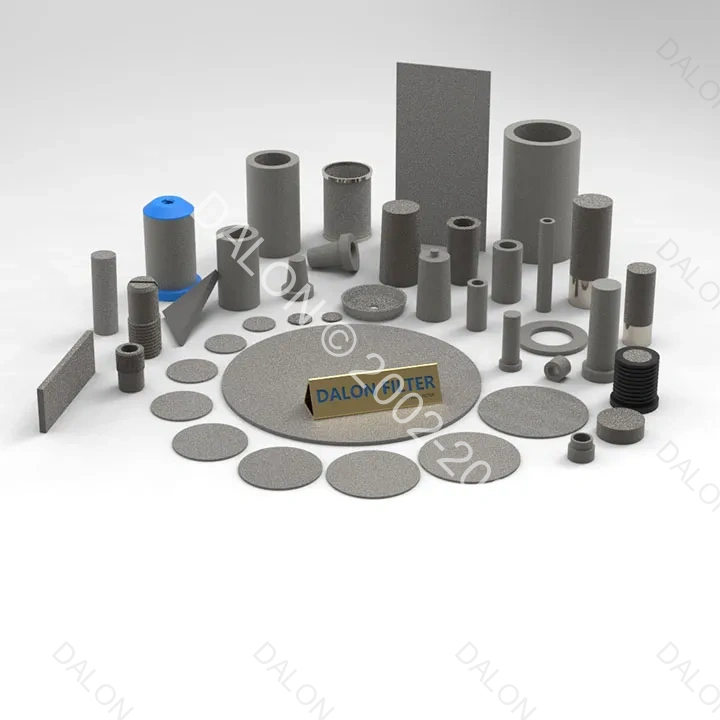

STEEL FILTER DISC 20X6.35 35MICRON Additional image 1

Our high-performance stainless steel filter disc (20mm diameter × 6.35mm thickness) provides reliable 35-micron filtration for demanding applications in pharmaceutical, food processing, and chemical industries. The precision-engineered sintered metal structure ensures excellent particle retention with minimal flow restriction.

Key Features:

  • Material: 304/316L stainless steel (food-grade options available)

  • Pore Size: 35 microns (nominal rating)

  • Temperature Range: -40°C to 400°C

  • Pressure Rating: Up to 10 bar (custom high-pressure versions available)

  • Applications:

    • Process liquid filtration

    • Compressed air systems

    • Sterile gas filtration

    • Catalyst recovery

Why Choose Our Stainless Steel Filters?

✔ Superior Filtration Efficiency – Consistent 35-micron rating with 85% minimum efficiency
✔ Exceptional Durability – Withstands repeated cleaning cycles (backflush, ultrasonic, or chemical)
✔ Optimized Flow Rates – Sintered metal structure maintains high flow with low pressure drop
✔ Custom Solutions – Available in sizes from 10mm to 500mm diameter
✔ Industry Compliance – Meets FDA, ISO 9001, and ASME standards

Technical Specifications:

  • Outer Diameter: 20mm ±0.1mm

  • Thickness: 6.35mm ±0.05mm

  • Porosity: 30-35%

  • Burst Pressure: ≥15 bar

  • Surface Finish: Ra ≤3.2μm

FAQ:

  1. What cleaning methods are recommended?
    Suitable for backflushing, ultrasonic cleaning, and chemical cleaning with most solvents.

  2. Can these discs be used in high-temperature applications?
    Yes, standard versions withstand 400°C continuously (higher temps available).

  3. Is the 35-micron rating absolute or nominal?
    Standard version is nominal (85% efficiency) – absolute rated filters available.

  4. Do you offer different materials?
    Yes, available in 304, 316L, and specialty alloys like Hastelloy.

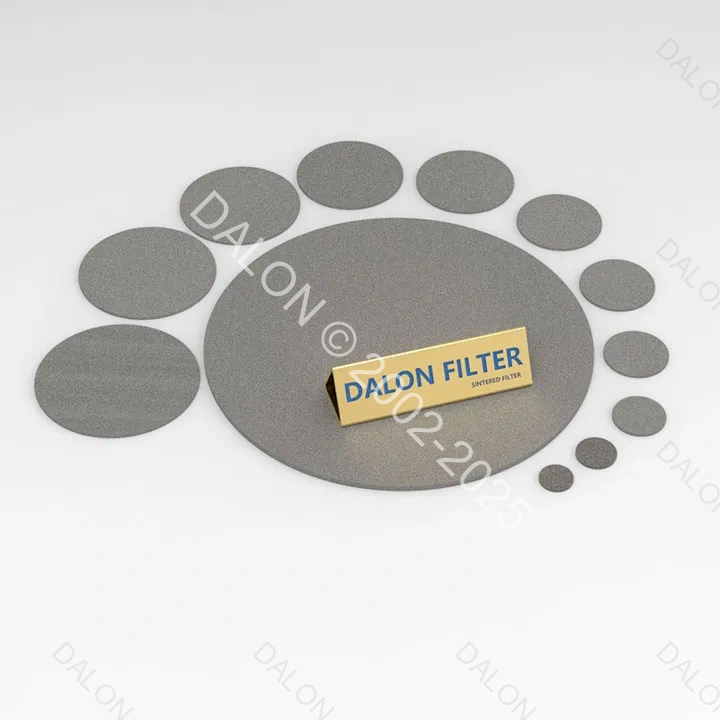

Additional image 2
35-micron stainless steel filter disc (20x6.35mm) for precision industrial filtration. Corrosion-resistant, high flow rate. Request technical specifications today.

Applications & Industries

Filter Silencing Applications Filter Silencing Applications

Chemical & Manufacturing

  • CHEMICAL INDUSTRIES
  • SEMICONDUCTOR
  • SCIENTIFIC INSTRUMENT
  • PHARMACEUTICAL
  • POLYMER FILTRATION
  • GAS AND LIQUID FILTRATION
Fluidization Applications Filter Silencing Applications

Common Applications

  • SILENCING
  • SPARGING
  • FLUIDIZATION
  • SENSOR AND VALVE PROTECTION
  • FLOW RESTRICTION
  • HANDLING OF BULK MATERIAL
Filter Applications

Industry Solutions

The versatility of STEEL FILTER DISC 20X6.35 35MICRON makes them ideal for various industrial applications. Key industries that benefit from these steel filters include:

Chemical & Pharmaceutical:
- For precise filtration in chemical processing, pharmaceutical manufacturing, and laboratory applications.
Semiconductor & Electronics:
- In clean room environments and semiconductor manufacturing where high-purity filtration is critical.
Manufacturing & Processing:
- For industrial gas and liquid filtration in manufacturing processes and production lines.
Water & Waste Treatment:
- In water purification systems and wastewater treatment where reliable filtration is essential.
Air & Gas Systems:
- For air filtration, gas distribution, and pneumatic systems requiring precise flow control.
