STEEL FILTER CAP 5X9.3X11.3 60MICRON

DALON’s Stainless Steel Inline Filter Cap (5×9.3×11.3 mm, 60 Micron) is a compact and highly durable filtration component designed for inline integration in gas, air, and fluid systems requiring dependable particulate retention and corrosion resistance. Made from sintered stainless steel, this filter provides mechanical strength, stable flow characteristics, and long-term service life in harsh or high-pressure environments.

With a filtration rating of 60 microns, it efficiently traps metal particles, dust, and process contaminants before they enter sensitive system components like valves, pumps, sensors, and dosing elements.

Key Specifications

• Material: Sintered stainless steel (AISI 316L optional)

• Filtration Rating: 60 microns (nominal)

• Dimensions:

  • Outer Diameter: 5 mm

  • Body Length: 9.3 mm

  • Total Length: 11.3 mm

• Structure: Cap-type sintered filter with closed end

• Temperature Resistance: Up to 500°C

• Pressure Resistance: Designed for high-pressure fluid or gas systems

• Reusability: Washable and chemically cleanable

• Installation: Fits into custom inline housings or stainless tubing systems

Applications

• Inline filtration in pneumatic and hydraulic control circuits

• Sample gas or fluid filtration in lab instruments

• Back-end protection for flow meters and pressure regulators

• Filtration in automotive emission or fluid control modules

• Fuel, solvent, or chemical processing filter cartridges

• Pressure control in sensor and environmental devices

Why Choose DALON

DALON produces premium-grade sintered stainless steel filters trusted by global OEMs in industrial automation, energy, medical, and automotive sectors. Our expertise includes:

• Custom Manufacturing: Tailored shapes, porosity, and pressure specs

• Short Lead Time: 30 days for standard molds, 35–40 days including custom mold development

• Advanced Engineering: CAD assistance and flow simulation available

• Durability & Reliability: ISO 9001:2015 certified quality systems

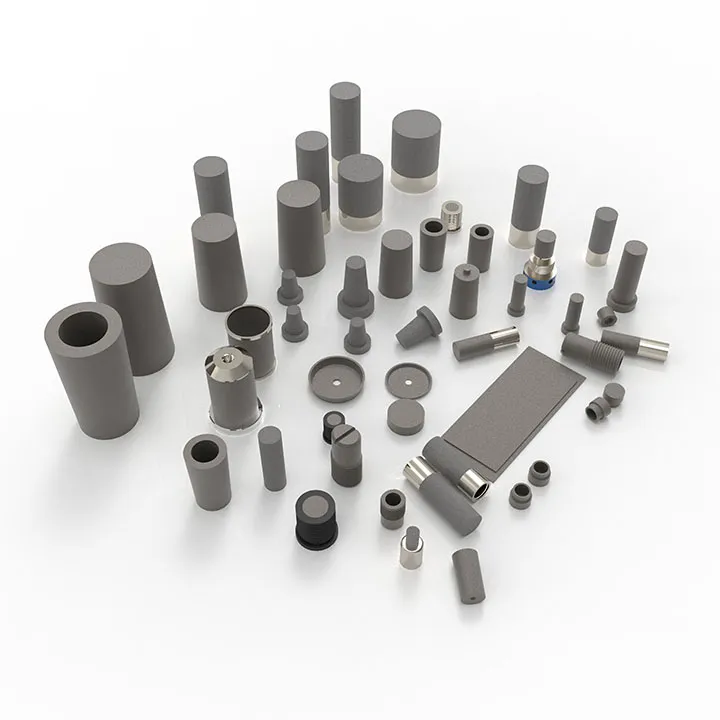

• Versatility: Inline filters available from 0.5 mm up to 100 mm OD, in micron ratings from 0.5 to 200 µm

FAQ – Frequently Asked Questions

Q1: What does a 60-micron inline filter remove?
It traps larger particles like rust, welding slag, metal shavings, and dust from air, gas, or fluid systems, protecting sensitive downstream components.

Q2: Can this filter be reused?
Yes. The sintered stainless structure supports multiple cleaning cycles using ultrasonic cleaning, solvent flushing, or reverse air purging.

Q3: Is stainless steel suitable for chemical media?
Yes. AISI 316L grade (available on request) is highly corrosion-resistant and ideal for aggressive fluids like acids or solvents.

Q4: What’s the pressure limit of this inline filter?
Typically used in systems up to several hundred bar, depending on wall thickness and housing support. Consult us for specific needs.

Q5: Can DALON customize this filter?
Absolutely. We offer custom dimensions, threads, porosity, alloy grades, and integration support tailored to your project.

Q6: What do people also ask?

• What is a stainless steel inline filter used for?
  It is used to remove particles from air, gas, or liquids directly within tubing or piping systems to protect downstream components.

• How do I clean a stainless steel inline filter?
  Soak in solvent or apply backflush using compressed air or ultrasonic cleaning—especially effective for sintered porous filters.

• Is stainless steel better than bronze for filters?
  Stainless steel offers higher pressure and temperature resistance and is preferred for chemically harsh or sterile environments.
