Premium Quality Sintered Steel Filter
| I.D.(d) | |
| I.D. (d1) | |
| O.D. (D) | |
| O.D. (D1) | |
| Length (L) | |
| Flange Dia. (fd) | |
| Flange Thickness (fl) | |
| General Tolerance | ±0.2mm |
| Weight(ref)/Gram | 0.00 |
| Minimum Order Qty |

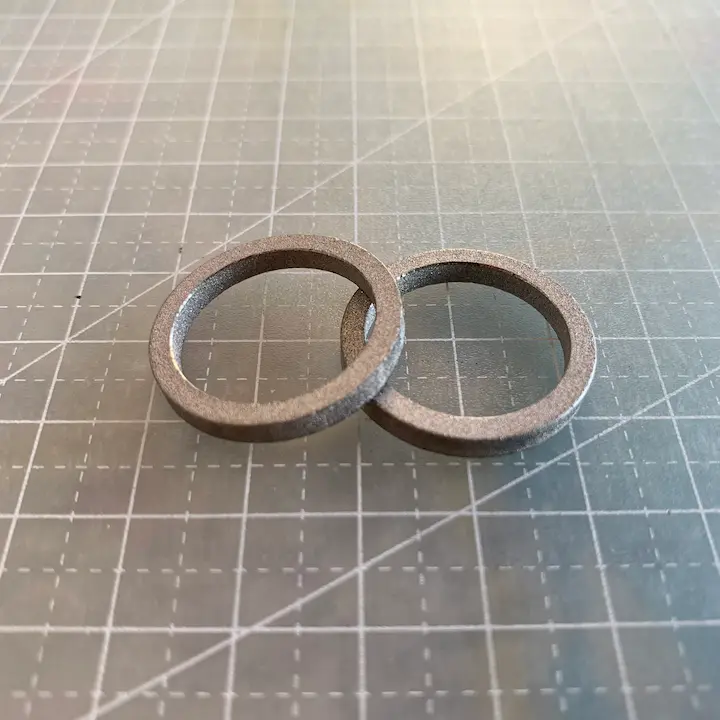

The SINTERED STAINLESS STEEL 316L RING FILTER 30×47×2 40MICRON is a rugged and reusable stainless steel inline strainer designed for medium-grade particle retention in industrial fluid and gas systems. Manufactured from sintered 316L stainless steel, this compact filter ring provides 40-micron nominal filtration with stable performance and corrosion resistance.
Its ring-shaped geometry—30 mm inner diameter, 47 mm outer diameter, and 2 mm thickness—is ideal for inline installations where flow distribution, space efficiency, and filtration reliability are required. Common applications include pump inlet strainers, valve protection elements, or instrumentation pre-filters.
The sintered porous matrix captures particles through depth filtration, extending service life and reducing pressure drop compared to traditional mesh screens. The 316L stainless steel composition ensures compatibility with aggressive fluids, high temperatures, and pressure fluctuations. It is fully cleanable and designed for long-term operation in demanding environments.
| Specification | Value |
|---|---|
| Material | Sintered Stainless Steel 316L |
| Inner Diameter (ID) | 30 mm |
| Outer Diameter (OD) | 47 mm |
| Thickness | 2 mm |
| Filtration Rating | 40 micron (nominal) |
| Filter Type | Ring / Inline Strainer Element |
| Porosity Type | Depth filtration |
| Media Cleanability | Reusable, ultrasonic/backflush |
| Temperature Range | –200°C to +600°C |
| Pressure Resistance | High – suitable for inline flow |
Inline strainer for pumps and diaphragm valves
Pre-filter for instrumentation and sampling lines
Solvent or fluid inlet protection
Inline filter ring for chemical dosing systems
Pneumatic and hydraulic flow control circuits
Flow equalizer ring for analytical systems
Pre-filtration in small process skids or panels
Q1: What is this inline strainer used for?
It’s used to trap particles in-line within fluid or gas flow systems, protecting equipment such as pumps, valves, and sensors.
Q2: Is 40 micron suitable for pre-filtration?
Yes. 40µm is ideal for general-purpose inline filtration, capturing medium-sized particles without restricting flow.
Q3: Can the filter be cleaned and reused?
Absolutely. It supports multiple cleaning cycles using ultrasonic, solvent, or reverse flow cleaning methods.
Q4: Is the 316L stainless steel resistant to corrosion?
Yes. It offers excellent resistance to acids, alkalis, solvents, and moisture—suitable for harsh industrial environments.
Q5: Can DALON customize ring dimensions or micron ratings?
Yes. DALON supports full customization of ring filters including size, thickness, pore size, and housing compatibility.
The versatility of SINTERED STAINLESS STEEL 316L RING FILTER 30X47X2 40MICRON makes them ideal for various industrial applications. Key industries that benefit from these steel filters include:
Our professional team is ready to assist with your inquiry for this Process Line Pre-Filter – Stainless Ring 30×47×2 mm.
