Porous PE Polyethylene Filter
Product Characteristics
| Pore Pitch: | from 0.5 µm to 80 µm |
| Diameter: | from 2 to 250 mm,and length from 2 to 1500 mm |
| Porosity: | 35 up to 45% |
| Density: | from 0.6 to 0.7 |
| Working Temp: | 110°C -MAX |
Porous PE Plastic Filters is a kind of high porosity elements, made from porous Polyethylene powders.
Porous plastic materials can fully respected to size after sintering process.
Sintered porous PE filter material have very tiny holes to trap very small particles.

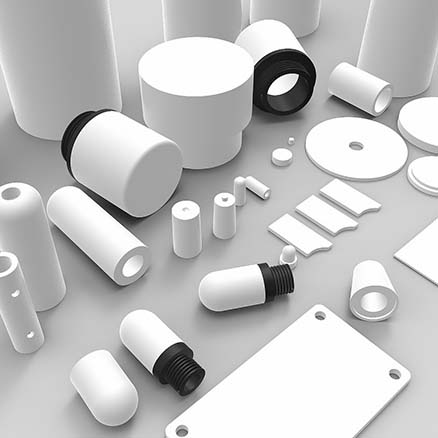

| Discs: | d 2mm to Ød 500mm –up to h 100mm |
| Cylinders: | d 4mm to Ød 300mm –up to h 1000mm |
| Cones: | d 4mm to Ød 300mm –up to h 500mm |
| Plates: | width up to 500 ,length up to 500mm –up to h 50mm |
Application Examples:
Plastic Filter Application Examples:
The sintered PE plastic filter is able to retain the solid particles contained in a liquid or gaseous fluid and also to separate liquid and solid phases. Commonly used in various applications:
- Water filtration systems: Used in water filtration systems to remove impurities such as sediment, sand, and chlorine.
- Chemical filtration: Chemical filtration applications to remove impurities and ensure purity.
- Food and beverage filtration: commonly used in the food and beverage industry to remove impurities in the production process.
- Medical filtration: Used in medical applications to filter bodily fluids and prevent infections.
- Automotive filtration: Used in automotive applications to remove impurities in oil, fuel, and air.
