Premium Quality Sintered Bushing

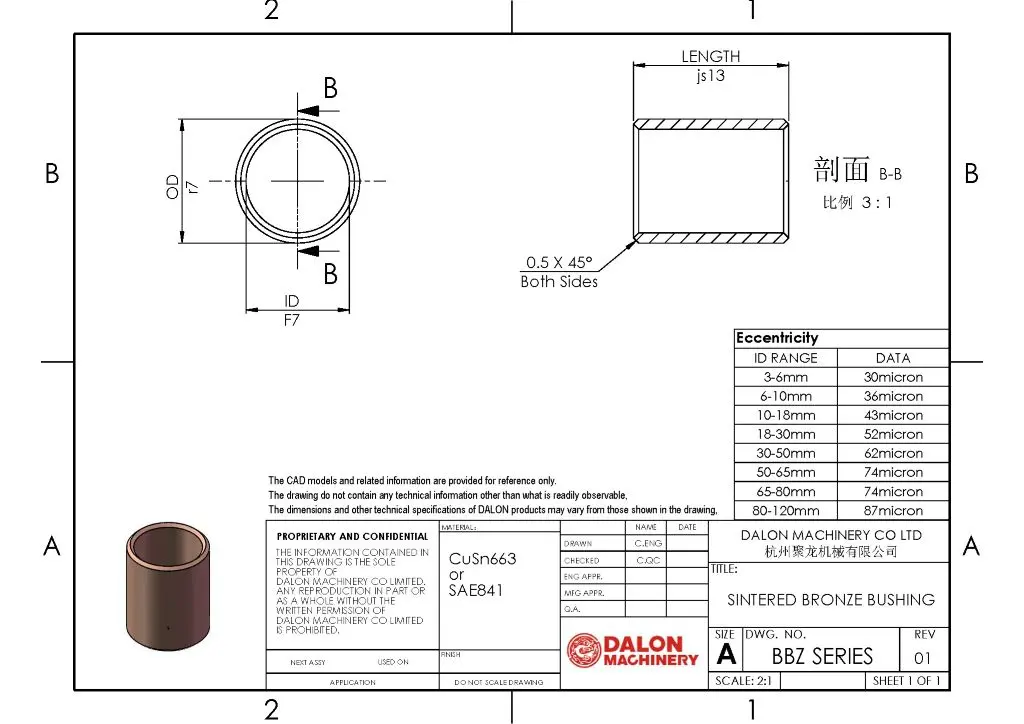

| I.D.(d) | 6 |
| I.D. (d1) | |
| O.D. (D) | 8 |
| O.D. (D1) | |
| Length (L) | 8 |
| Flange Dia. (fd) | |
| Flange Thickness (fl) | |
| General Tolerance | F7 r7 js13 |
| Weight(ref)/Gram | 1.20 |
| Minimum Order Qty | 40KGS |
DALON’s 06×08×08 mm sintered bronze bushing is a miniature brass bushing solution designed for compact assemblies requiring high-performance, self-lubricating components. Formed through powder metallurgy using a Cu-based alloy, this bushing is optimized for applications where space is limited, yet consistent rotational performance is critical.
The sintered structure allows for internal oil retention, enabling long-term dry operation with minimal friction and wear. It is a preferred choice in small electric motors, sensors, compact fans, and precision instrumentation.
Dimensions: 6 mm ID × 8 mm OD × 8 mm Length
Material: Sintered bronze (90/10 CuSn or equivalent)
Compact size for tight mechanical assemblies
Self-lubricating for maintenance-free operation
Excellent load capacity for its size
Quiet and smooth rotational movement
Micro motors and hobby servos
Medical instruments and diagnostic tools
Precision measuring devices
Compact gearboxes and actuators
Mini fans, toys, and electronic equipment
Small automation modules and IoT devices
DALON is a global manufacturer certified under ISO 9001:2015, specializing in sintered bronze bushings for OEMs in high-precision industries. This 06×08×08 brass bushing is part of our miniature range—engineered for high consistency, excellent wear resistance, and long-term performance under limited lubrication conditions.
We offer flexible customization for shaft fit, tolerances, and material formulations based on your specific application requirements. Each batch is produced to tight dimensional tolerances with rigorous quality control.
Q1: What is this bushing made from – brass or bronze?
While often referred to as a “brass bushing,” this part is made from sintered bronze for superior self-lubrication and mechanical strength.
Q2: Is this suitable for high-speed applications?
Yes, within its size and load class. For ultra-high speeds, contact DALON for enhanced designs.
Q3: Can it run without grease or oil?
Yes. It retains oil within its porous body and operates without external lubrication under normal conditions.
Q4: Can I get a custom length or ID/OD size?
Absolutely. DALON offers OEM-level customization to fit your exact mechanical design.
Q5: Is this compatible with plastic or aluminum housings?
Yes. It performs well in plastic, aluminum, or metal housings, offering low-friction and quiet operation.
Q6: What industries use this miniature bushing?
It’s common in electronics, robotics, instruments, small appliances, drones, and lab equipment.
The versatility of SINTERED BRONZE BUSHING 06X08X08 makes them ideal for numerous applications, including:
SINTERED BRONZE BUSHING 06X08X08 are engineered for demanding applications where traditional lubrication methods are impractical. They provide exceptional performance, durability, and cost-effectiveness, making them the preferred choice across various industries. Experience the reliability and efficiency of SINTERED BRONZE BUSHING 06X08X08, designed to meet your specific application requirements.
