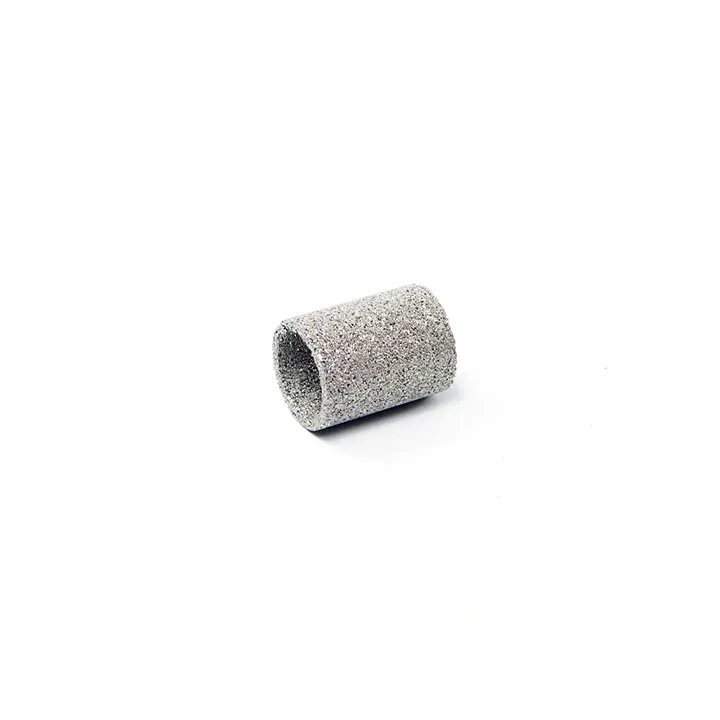

STEEL FILTER TUBE 20X27.5X50 6MICRON

DALON’s STEEL FILTER TUBE 20×27.5×50 6MICRON is a high-precision sintered filter element designed to deliver reliable 6-micron filtration performance for demanding gas, air, or liquid systems. Manufactured from sintered 316L stainless steel powder, the element provides uniform porosity, structural rigidity, and chemical resistance, making it ideal for industrial filtration in compact, high-performance systems.

With dimensions of 20 mm inner diameter, 27.5 mm outer diameter, and 50 mm length, this tubular design maximizes surface area while maintaining compact size, suitable for pumps, control valves, instrumentation, and sample flow lines.

Its 6-micron filtration rating ensures consistent capture of fine particles with minimal pressure drop. The filter tube is fully reusable, withstanding multiple cleaning cycles via ultrasonic baths, chemical soaking, or backflushing—supporting operational cost savings and sustainability.

Key Features:

• Material: Sintered Stainless Steel 316L

• Size: 20 mm ID × 27.5 mm OD × 50 mm length

• Filtration Rating: 6 microns

• Construction: Seamless sintered tubular body

• Flow Design: High surface area for low pressure loss

• Durability: Withstands vibration, heat, and pressure

• Reusability: Suitable for ultrasonic, backflush, or solvent cleaning

• Corrosion Resistance: Ideal for chemical and wet gas environments

Common Applications:

• Compressed air and gas filtration

• Solvent and fluid sample conditioning

• Fuel cell systems and hydrogen filtration

• Valve and pump inlet protection

• Chemical injection or dosing systems

• Pre-filtration in analytical equipment

FAQ – Frequently Asked Questions

Q1: What is the filtration rating of 6 microns used for?
It targets fine particles in clean gas or liquid lines—ideal for protecting sensitive equipment or ensuring sample purity.

Q2: Can this filter element be reused?
Yes. It is built to endure multiple cleaning cycles with stable filtration performance.

Q3: How do I clean this sintered filter tube?
Use ultrasonic baths, reverse flushing with fluid/air, or soak in solvent depending on application.

Q4: Is it suitable for high-pressure or hot environments?
Yes. SS316L handles high pressure and temperature, making it ideal for industrial setups.

Q5: Can DALON provide custom filter tube dimensions or pore sizes?
Absolutely. DALON offers full customization based on your specific filtration system needs.
