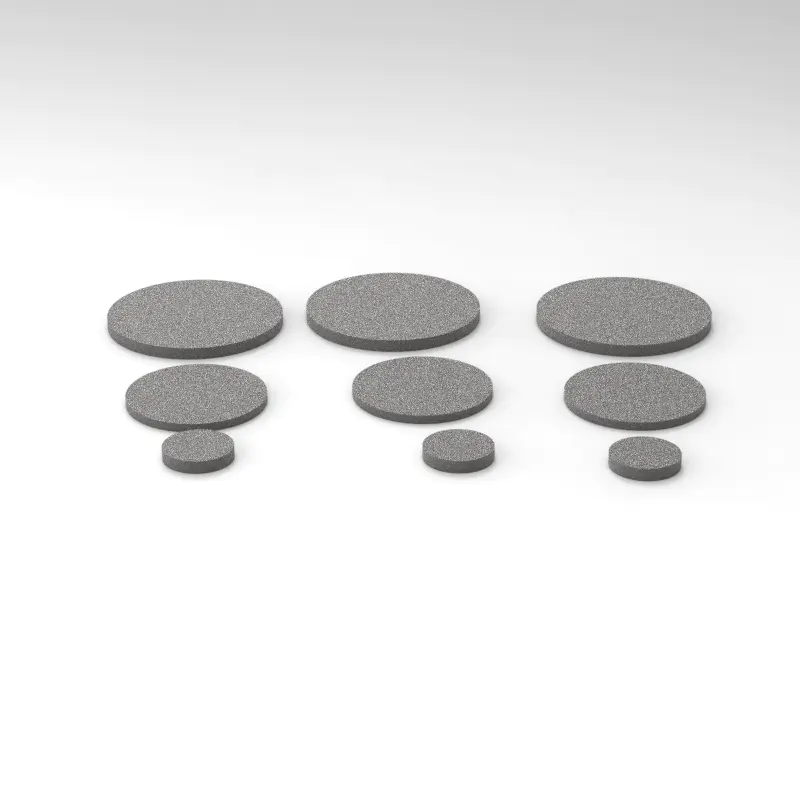

STEEL FILTER DISC 20.2X25X3 10MICRON

DALON’s STEEL FILTER DISC 20.2×25×3 10MICRON is a high-precision sintered SS316 powder filter designed for 10-micron filtration in demanding gas, air, and liquid systems. Manufactured from SS316L stainless steel powder through advanced sintering, this disc delivers a uniform porous structure that ensures reliable flow, consistent particle retention, and long-term mechanical durability.

The filter disc features a 20.2 mm inner diameter, 25 mm outer diameter, and 3 mm thickness, making it ideal for use in inline filter housings, instrumentation ports, gas sampling systems, and chemical processing setups. The 10µm pore size enables effective removal of fine contaminants while maintaining a stable flow rate and minimal pressure drop.

Designed for industrial reliability, this disc is reusable, corrosion-resistant, and performs under pressure, temperature fluctuations, and aggressive media.

Key Features:

• Material: Sintered Stainless Steel 316L

• Size: 20.2 mm ID × 25 mm OD × 3 mm thickness

• Filtration Rating: 10 microns

• Structure: Uniform porous matrix from SS316 powder

• Chemical Resistance: Excellent against solvents, fuels, and acids

• Thermal Resistance: Suitable for high-temperature systems

• Reusability: Supports ultrasonic, backflush, and solvent cleaning

• Application Fit: Air, gas, fuel, solvent, and process fluid filtration

Common Applications:

• Analytical instrumentation

• Compressed air and gas filtration

• Fuel and solvent filtration units

• Laboratory and medical gas systems

• Chemical plant pre-filters

• Pressure regulator inlet protection

FAQ – Frequently Asked Questions

Q1: What is a sintered SS316 powder filter?
It’s a filter made by sintering stainless steel 316L powder into a porous structure, offering uniform, durable 10µm filtration.

Q2: Is the 10µm disc reusable?
Yes. It can be cleaned and reused multiple times using ultrasonic or chemical methods.

Q3: What’s the benefit of sintered powder over wire mesh?
Sintered powder provides depth filtration, precise fixed pores, and greater mechanical and chemical resistance.

Q4: Can this filter handle aggressive fluids or gases?
Absolutely. SS316L offers excellent resistance to acids, fuels, and most industrial chemicals.

Q5: Can DALON provide custom sizing or pore ratings?
Yes. DALON offers full customization including diameter, thickness, and micron rating based on your application needs.
